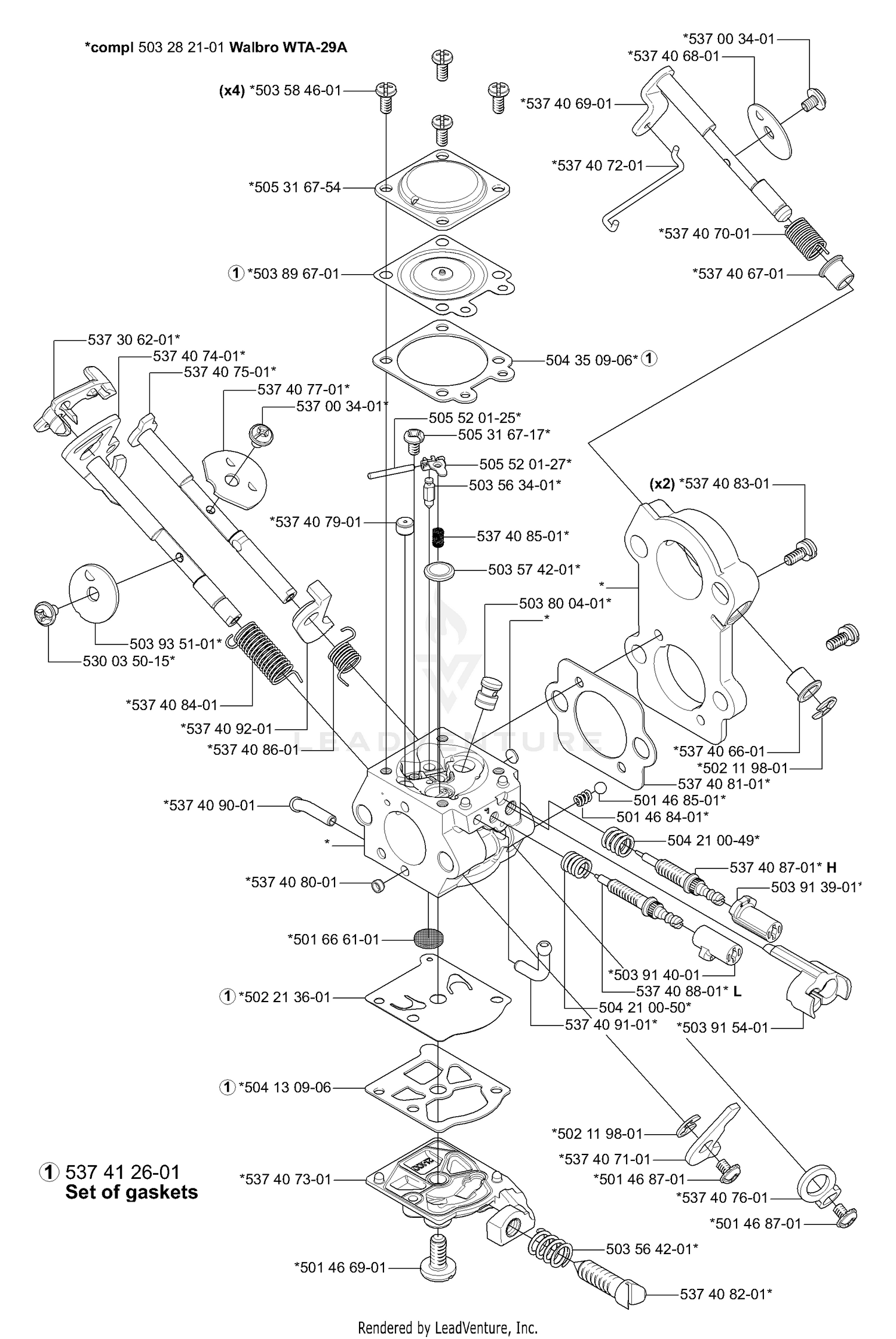

Carburetor Parts
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 501466901 | 501466901 | SCREW Price: $7.99 |
| 501468401 | 501468401 | SPRING Price: $6.99 |
| 501468501 | 501468501 | BALL Price: $6.99 |
| 501468701 | 501468701 | SCREW Price: $6.99 |
| 501666101 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 502119801 | 502119801 | CLIPS Price: $7.99 |
| 502213601 | 504130807 | PUMP DIAPHRAGM This part replaces 502213601. Price: $27.99 |
| 503282101 | 531440701 | CARBURETOR WTEA-1A P003 This part replaces 503282101. Price: $39.99 |
| 503563401 | 503563401 | INLET NEEDLE Price: $14.99 |
| 503564201 | 503564201 | SPRING Price: $9.99 |
| 503584601 | 503584601 | SCREW Price: $2.99 |
| 503800401 | 503800401 | NOZZLE Price: $3.99 |
| 503896701 | 503896701 | DIAPHRAGM Price: $44.99 |
| 503913901 | 503913901 | LIMITER CAP Price: $2.99 |
| 503914001 | 503914001 | LIMITER CAP Price: $4.99 |
| 503915401 | 503915401 | CAP Price: $7.99 |
| 503935101 | 503935101 | THROTTLE FLAP Price: $7.99 |
| 504130906 | 504130906 | GASKET Price: $9.99 |
| 504210049 | 504210049 | SPRING, H-NEEDLE Price: $11.99 |
| 504210050 | 530035293 | NEEDLE SPRING This part replaces 504210050. Price: $2.99 |
| 504350906 | 504350906 | GASKET Price: $9.99 |
| 505316717 | 505316717 | SCREW Price: $6.99 |
| 505316754 | 505316754 | DIAPHRAGM COVER Price: $3.99 |
| 505520125 | 505520125 | FULCRUM PIN Price: $6.99 |
| 505520127 | 505520127 | LEVER Price: $4.99 |
| 530035015 | 530035015 | SCREW SHUTTERS Price: $2.99 |
| 537003401 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 537306201 | 537306201 | BUCKLE Price: $4.99 |
| 537406601 | 537406601 | SLEEVE Price: $2.99 |
| 537406701 | 537406701 | SLEEVE Price: $2.99 |
| 537406801 | 537406801 | CHOKE FLAP Price: $6.99 |
| 537406901 | 537406901 | SHAFT Price: $5.99 |
| 537407001 | 537407001 | SPRING Price: $4.99 |
| 537407101 | 537407101 | LEVER Price: $3.99 |
| 537407201 | 537407201 | ROD Price: $11.99 |
| 537407301 | 537407301 | COVER Price: $5.99 |
| 537407401 | 537407401 | SHAFT Price: $7.99 |
| 537407501 | 537407501 | SHAFT Price: $22.99 |
| 537407601 | 537407601 | PLATE Price: $3.99 |
| 537407701 | 537407701 | VALVE Price: $8.99 |
| 537407901 | 537407901 | JET Price: $7.99 |
| 537408001 | 537408001 | SLEEVE Price: $6.99 |
| 537408101 | 537408101 | GASKET Price: $9.99 |
| 537408201 | 537408201 | SCREW Price: $14.99 |
| 537408301 | 537408301 | SCREW Price: $7.99 |
| 537408401 | 537408401 | SPRING Price: $3.99 |
| 537408501 | 537408501 | SPRING Price: $4.99 |
| 537408601 | 537408601 | SPRING Price: $3.99 |
| 537408701 | 537408701 | SCREW Price: $22.99 |
| 537408801 | 537408801 | SCREW Price: $22.99 |
| 537409001 | 537409001 | NIPPLE Price: $2.08 |
| 537409101 | 537409101 | NIPPLE Price: $3.99 |
| 537409201 | 537409201 | LEVER Price: $3.99 |
| 537412601 | 537412601 | GASKET SET Price: $25.99 |
