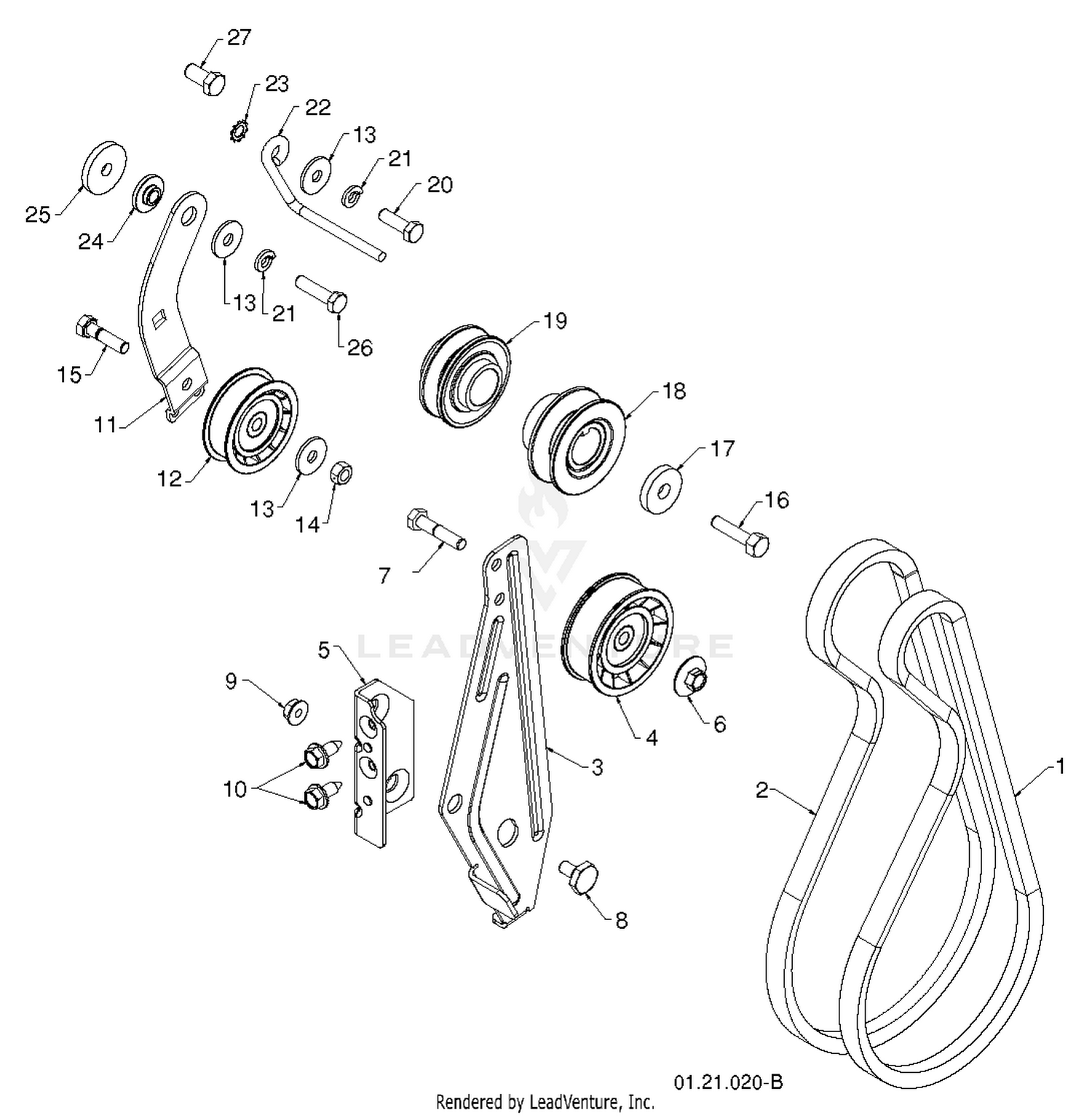

| Ref | Part Number | Description |
|---|
| 1 |
532419888 |
V-BELT.IMPELLER Price: $49.99 |
| 1 |
67-4630 |
ALTERNATOR ASSEMBLY Price: $550.36 |
| 2 |
532427304 |
TRACTION BELT Price: $17.99 |
| 2 |
67-4670 |
NUT Price: $1.65 |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC This part replaces 532429271. Price: $12.99 |
| 3 |
67-3260 |
WASHER Price: $1.58 |
| 4 |
42-9660 |
WASHER Price: $2.50 |
| 4 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 5 |
43-0370 |
DISCONTINUED Price: Call Us |
| 5 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 532429270. Price: $4.99 |
| 6 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 6 |
67-4870 |
REAR BEARING Price: $46.57 |
| 7 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 7 |
67-4860 |
DISCONTINUED Price: Call Us |
| 8 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 8 |
67-4930 |
DISCONTINUED Price: Call Us |
| 9 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 9 |
67-4890 |
REAR BRACKET ASSEMBLY Price: $997.52 |
| 10 |
67-4880 |
DISCONTINUED Price: Call Us |
| 10 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 11 |
532427577 |
ARM.ASM.TRACTION.IDLER This part replaces 532427576. Price: $17.99 |
| 11 |
67-4900 |
DISCONTINUED Price: Call Us |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 12 |
67-4910 |
REGULATOR ASSEMBLY Price: $649.68 |
| 13 |
532059289 |
STEEL WASHER This part replaces 853059289. Price: $3.99 |
| 13 |
67-4920 |
BRUSH Price: $19.03 |
| 14 |
43-0510 |
BRUSH SPRNG Price: $6.49 |
| 14 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 15 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 15 |
67-4830 |
FRONT BRACKET ASSEMBLY Price: $283.39 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 16 |
67-4810 |
PULLEY SET Price: $48.24 |
| 17 |
51-7850 |
NUT SET This part replaces 43-1920. Price: $1.46 |
| 17 |
819132005 |
WASHER.400X1.25X5. Price: $5.99 |
| 18 |
532425934 |
PULLEY ENG IMPELLER Price: $29.99 |
| 18 |
67-4840 |
SCREW SET Price: $5.18 |
| 19 |
532425933 |
PULLEY.ASM.ENG.TRACTION.1.00 Price: $22.99 |
| 19 |
67-4850 |
FRONT BEARING Price: $24.45 |
| 20 |
67-4820 |
BOLT SET Price: $9.73 |
| 20 |
874610516 |
SCREW Price: $3.99 |
| 21 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 21 |
67-4620 |
SPACER Price: $17.73 |
| 22 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 22 |
67-4640 |
BOLT Price: $9.56 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 23 |
75-4940 |
BRACE Price: $20.68 |
| 24 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 24 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 25 |
54-8660 |
WASHER Price: $2.23 |
| 25 |
819112206 |
WASHER.FLAT.34X1.38X22 Price: $4.99 |
| 26 |
67-4660 |
BOLT-FLANGE Price: $2.64 |
| 26 |
874610520 |
CAPSCREW.HEXHD.5/16X1.25. Price: $7.99 |
