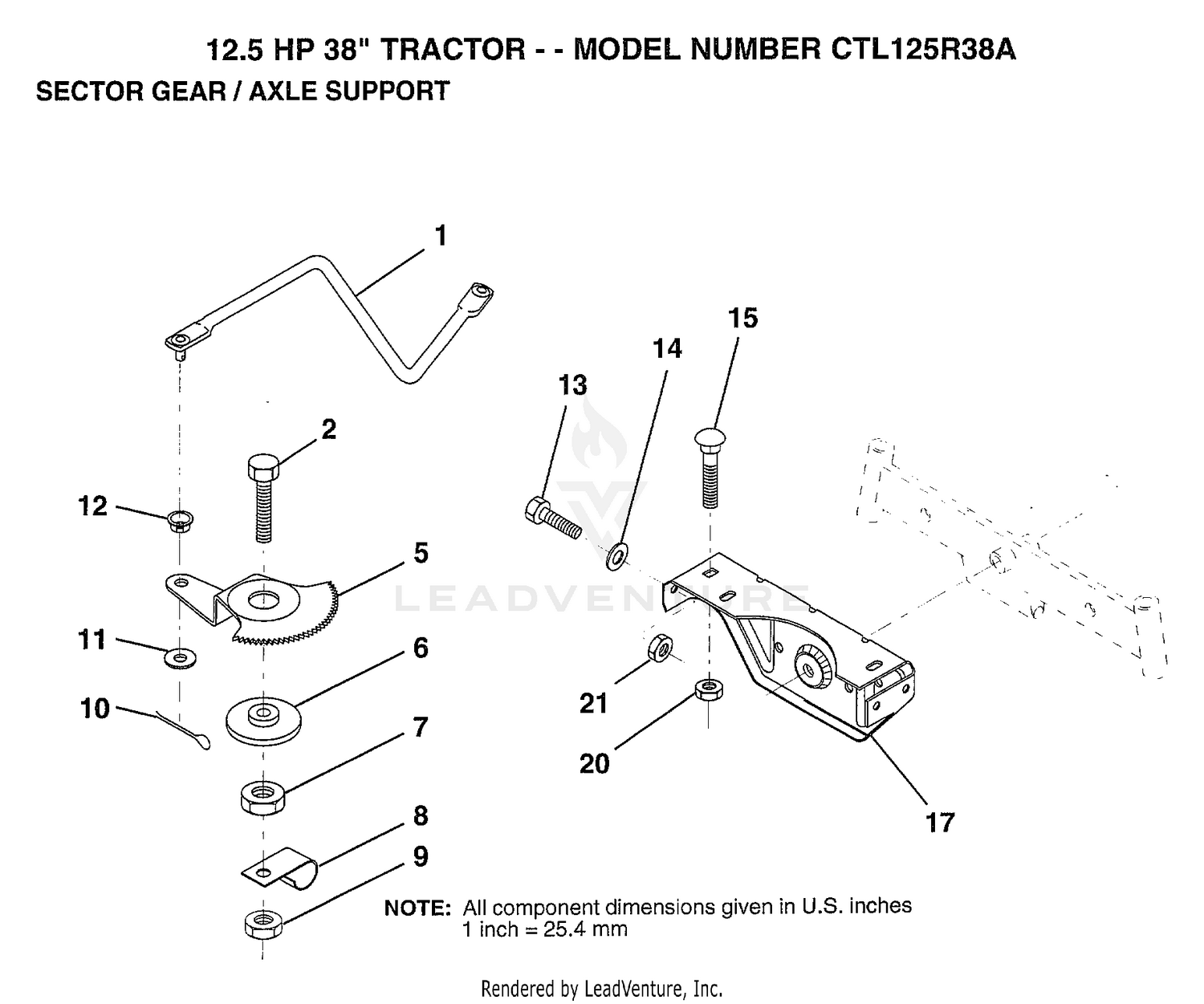

SECTOR GEAR/AXLE SUPPORT/12.5 HP 38"

SECTOR GEAR/AXLE SUPPORT/12.5 HP 38"

Parts (37)

RefPart NumberDescription
1 132566 DRAG LINK Price: Call Us
1 93-8742 FOOTPAD-BRAKE Price: $27.95
4 63-7880 PIN-LATCH, BRAKE Price: $6.04
5 121926X GEAR SECTOR Price: Call Us
5 92-7530 CABLE-BRAKE, LH Price: $132.98
6 121927X BUSHING Price: Call Us
6 92-7529 CABLE-BRAKE, RH Price: $132.98
7 3256-69 WASHER-FLAT Price: $0.62
7 73030800 NUT Price: Call Us
8 126472X CLIP INSULATOR Price: Call Us
8 32121-16 PIN-SPRING Price: $0.41
9 283-58 PIN-CLEVIS Price: $3.87
9 73680800 NUT LTV Price: Call Us
10 75-1440-03 PEDAL-BRAKE, LH Price: $207.74
10 76020412 COTTER PIN Price: Call Us
11 19131316 WASHER Price: Call Us
11 3272-10 PIN-COTTER Price: $0.25
12 126847X BUSHING.DRAGLINK Price: Call Us
12 32121-50 PIN-SPRING Price: $1.21
13 74760512 BOLT Price: Call Us
13 75-1430 RH BRAKE PEDAL ASM Price: $255.51
14 19111416 WASHER Price: Call Us
14 322-3 SCREW-HH Price: $0.79
15 72110606 BOLT Price: Call Us
15 75-1470 PIN-PIVOT, BRAKE Price: $45.68
16 32128-20 NUT-HF Price: $0.99
17 137096 SUPT AXLE FRONT Price: Call Us
17 3290-378 TIE-CABLE Price: $0.79
18 256-236 BEARING-MOUNT, FLANGE Price: $27.99
19 105-0138-03 STABILIZER Price: $159.95
20 3256-26 WASHER-FLAT Price: $0.39
20 73680600 SUB= 73690600 Price: Call Us
21 3234-38 SCREW-HHF Price: $3.33
22 100-3868-03 BRACKET-TIPPER Price: $64.55
23 3234-1 SCREW-HHF Price: $1.62
24 75-5390 ROLLER Price: $56.69
25 75-5400 PIN-ROLLER Price: $26.06
