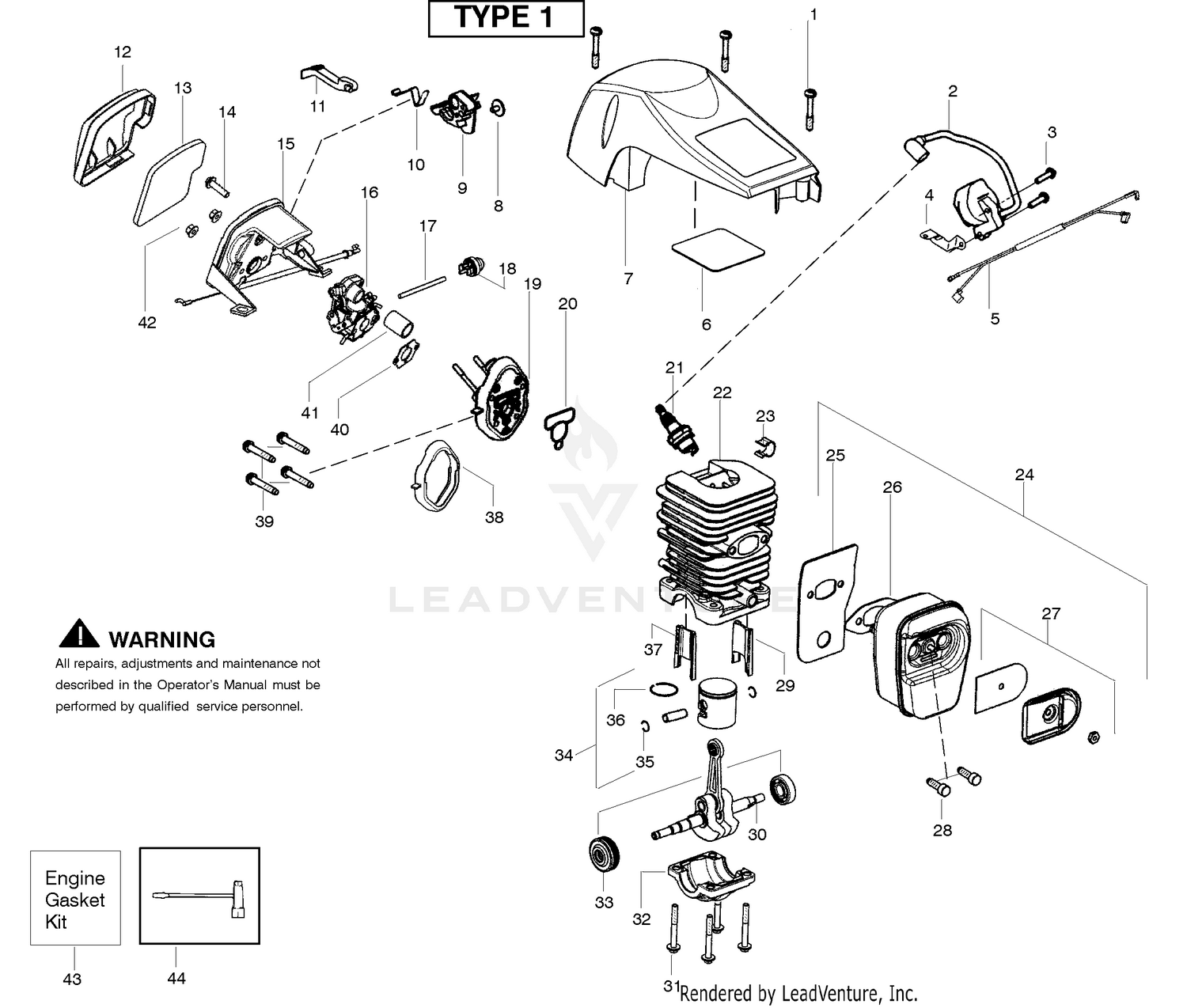

| Ref | Part Number | Description |
|---|
| 1 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
33114-045 |
SCREW-HH Price: $0.68 |
| 2 |
530039232 |
Module-Ignition Price: $16.40 |
| 3 |
530016432 |
Screw Price: $1.99 |
| 3 |
93-5042 |
DRIVESHAFT-4WD Price: $868.78 |
| 4 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 4 |
530058661 |
Strap-Ground Price: $1.99 |
| 5 |
33115-045 |
SCREW-HH Price: $0.61 |
| 5 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 6 |
33106-020 |
SCREW-HHF Price: $4.68 |
| 6 |
530055698 |
Reflector-Tape Price: $1.99 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 8 |
100-1353 |
DRIVESHAFT-ENGINE Price: $1,154.55 |
| 8 |
530016080 |
Screw Price: $1.99 |
| 9 |
530057891 |
Lever-Ignition Switch Price: $4.99 |
| 9 |
93-5043-03 |
COUPLER-ENGINE Price: $473.63 |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
530057908 |
Spring-Ignition Switch Price: $2.99 |
| 11 |
530059399 |
Knob-Choke Price: $1.99 |
| 12 |
530059001 |
Cover-Air Filter Price: $3.99 |
| 13 |
530057869 |
Filter-Air Price: $1.99 |
| 14 |
530016425 |
Screw Price: $1.99 |
| 15 |
530150029 |
Housing-Air Filter w/cable Price: $4.24 |
| 16 |
545070601 |
Carb-Zama W-26B This part replaces 530035590. Price: $27.99 |
| 17 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 18 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 20 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 21 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 23 |
530058660 |
Clip-High Tension Lead Price: $1.99 |
| 25 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 26 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 27 |
530071886 |
Kit-Spark Arrestor Price: $9.99 |
| 28 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 29 |
545015301 |
Insert-Left (black) Cyl. This part replaces 530057885. Price: $2.99 |
| 30 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $46.99 |
| 31 |
530016417 |
Bolt Price: $1.99 |
| 32 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 33 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 35 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 36 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 37 |
545015401 |
Insert-Right (gray) Cyl. This part replaces 530057886. Price: $2.99 |
| 38 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 39 |
530016426 |
Screw Price: $1.99 |
| 40 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 41 |
530057926 |
Tube-Intake Price: $1.99 |
| 42 |
530016101 |
Nut-Carb. Price: $1.99 |
| 44 |
530031163 |
Scrench This part replaces 530031135. Price: $4.99 |
