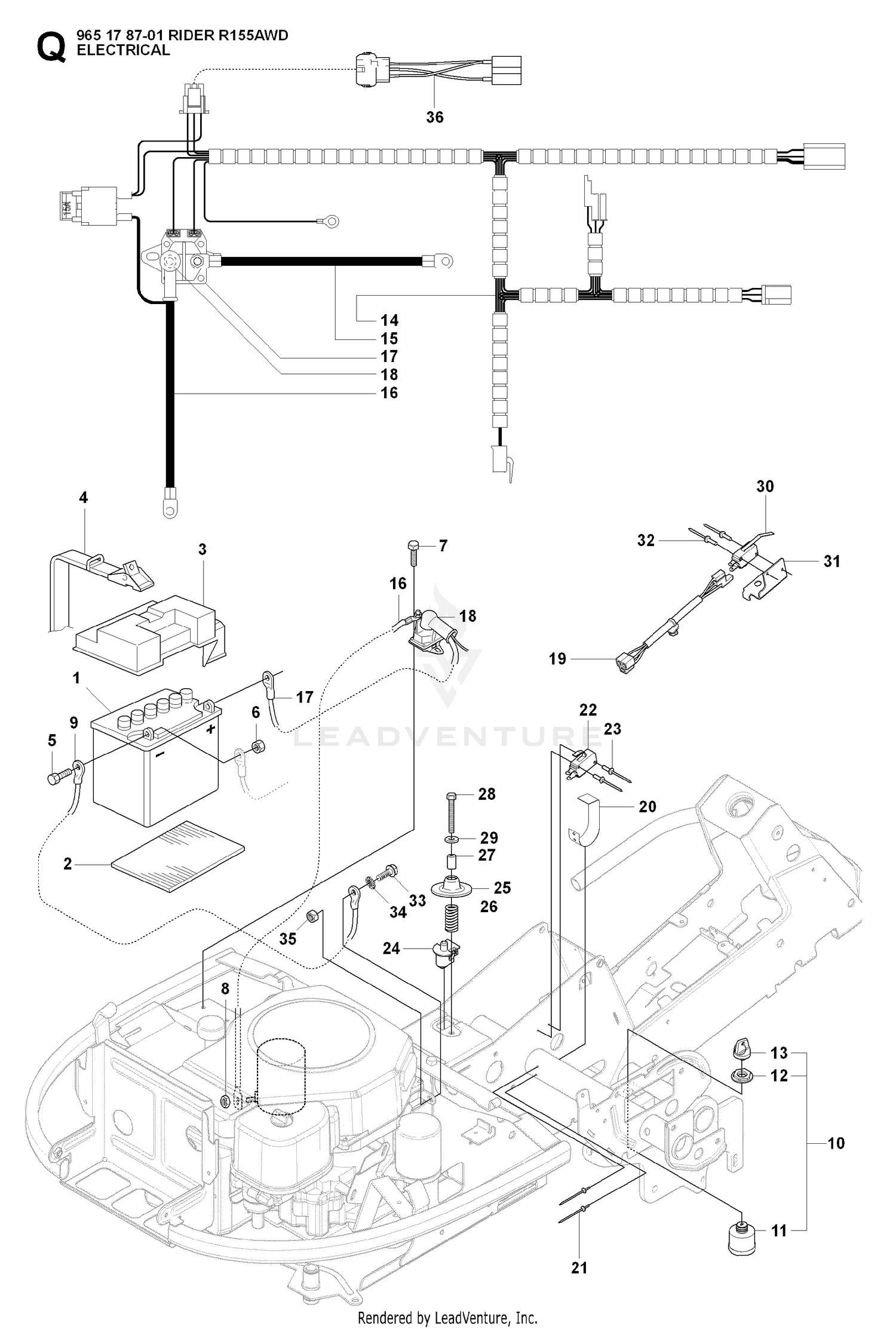

ELECTRICAL
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-5830 | HOUSING-HEAT/AC Price: $812.85 |
| 1 | 531031071 | BATTERY This part replaces 506788801. Price: $139.99 |
| 2 | 121-8491 | PLATE-SUPPORT Price: $6.47 |
| 2 | 535441101 | MAT Price: $8.55 |
| 3 | 3229-11 | SCREW-CARR Price: $0.99 |
| 3 | 506809901 | Cover Price: $18.17 |
| 4 | 121-8490 | BRACKET-MOUNT, DRIER Price: $23.85 |
| 4 | 506836802 | BELT Price: $9.99 |
| 5 | 104-7201 | NUT-HF Price: $0.69 |
| 5 | 725237071 | SCREW Price: $3.99 |
| 6 | 130-5834 | BRACKET-SUPPORT Price: Call Us |
| 6 | 731231601 | NUT Price: $2.99 |
| 7 | 130-5821 | BRACKET-AIRBOX, SIDE Price: $10.72 |
| 7 | 725236461 | SCREW Price: $2.99 |
| 8 | 125-7504 | PLATE-BACKER, CENTER Price: $5.77 |
| 8 | 506899801 | NUT Price: $2.99 |
| 9 | 130-0554 | BRACKET-AIRBOX, CENTER Price: $18.34 |
| 9 | 506550810 | Price: $15.26 |
| 10 | 130-5601 | DRAIN-LOWER Price: $35.83 |
| 10 | 544442101 | IGNITION SWITCH Price: $24.99 |
| 11 | 108-0342 | FITTING-STRAIGHT Price: $5.86 |
| 11 | 544442201 | IGNITION SWITCH Price: $17.99 |
| 12 | 121-6840 | WASHER-RUBBER Price: $1.29 |
| 12 | 544442301 | NUT Price: $2.99 |
| 13 | 107-3041 | WASHER-FLAT Price: $0.54 |
| 13 | 544442401 | IGNITION KEY Price: $6.99 |
| 14 | 544926301 | WIRING Price: $49.99 |
| 15 | 544928601 | CABLE Price: $9.99 |
| 16 | 544926101 | RP CABLE Price: $22.99 |
| 17 | 544439801 | RELAY Price: $17.99 |
| 18 | 506899801 | NUT Price: $2.99 |
| 19 | 544892201 | WIRING Price: $22.99 |
| 20 | 506909301 | SPRING Price: $6.99 |
| 21 | 722783902 | Rivet Price: $1.99 |
| 22 | 574316001 | SWITCH This part replaces 535469101. Price: $11.99 |
| 23 | 544440701 | RIVET Price: $2.99 |
| 24 | 506909601 | SWITCH Price: $14.99 |
| 25 | 506909701 | WASHER Price: $12.99 |
| 26 | 544441201 | SPRING Price: $4.99 |
| 27 | 506909902 | SPACER TUBE Price: $3.99 |
| 28 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 29 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 30 | 574316101 | MICRO SWITCH This part replaces 544415501. Price: $11.99 |
| 31 | 544415701 | BRACKET Price: $4.99 |
| 32 | 544440701 | RIVET Price: $2.99 |
| 33 | 506570103 | BOLT Price: $3.99 |
| 35 | 731231801 | NUT Price: $3.99 |
| 36 | 535453502 | NEEDS DESCRIPTION Price: Call Us |
