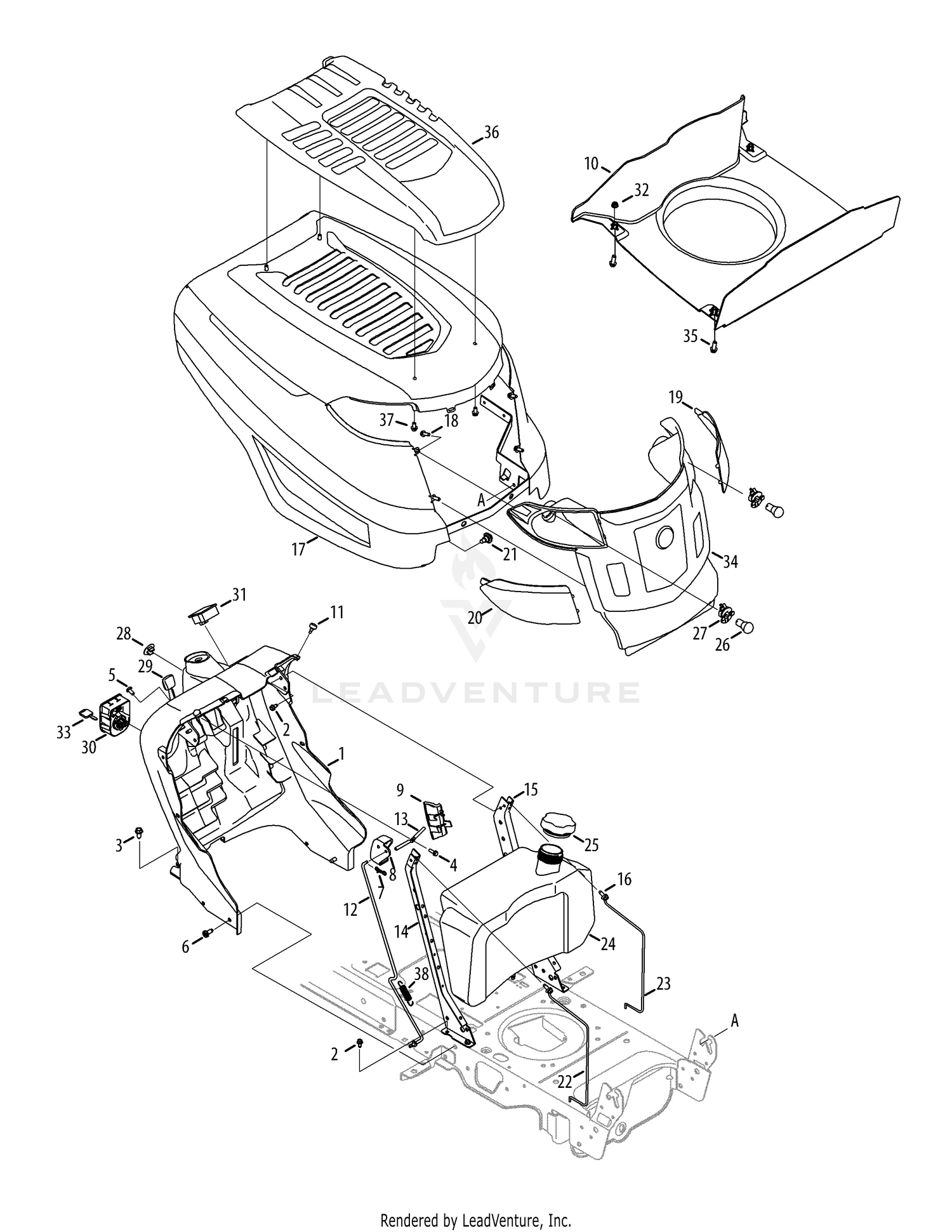

| Ref | Part Number | Description |
|---|
| 1 |
931-04664 |
DASH PANEL K-STYLE (ELECTRIC) Not Available Price: |
| 2 |
710-0599 |
Taptite Screw ,1/4-20 x 0.500 Price: $3.86 |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-0895 |
Hi-Lo Screw, 1/4-15 x 0.750 Price: $5.82 |
| 5 |
710-1017 |
Screw, 1/4-14 x 0.625 Price: $7.26 |
| 6 |
710-1611B |
Taptite Screw ,5/16-18 x 0.750 Price: $5.94 |
| 7 |
714-04040 |
Bow Tie Cotter Pin Price: $1.28 |
| 8 |
731-06639 |
PARK/BRAKE LEVER Not Available Price: |
| 9 |
731-06642 |
COVER PLATE Not Available Price: |
| 10 |
931-06212 |
Plenum Price: $34.07 |
| 11 |
735-0271A |
Bumper Price: $7.84 |
| 12 |
747-05008 |
PARK BRAKE ROD Not Available Price: |
| 13 |
747-1196 |
Lever Price: $13.38 |
| 14 |
783-04285F-0637 |
DASH SUPPORT Not Available Price: |
| 15 |
783-04323F-0637 |
DASH SUPPORT Not Available Price: |
| 16 |
710-1652 |
Tap Screw, 1/4-20, 0.625 Price: $3.86 |
| 17 |
683-04774-0638 |
HOOD ASSEMBLY(K STYLE) (MTD RED) Price: $302.86 |
| 18 |
710-05108 |
Screw, 1/4 DIA x .750 Price: $3.19 |
| 19 |
731-06095 |
LH Lens Price: $10.81 |
| 20 |
731-06096 |
RH Lens Price: $10.74 |
| 21 |
738-04091A |
Shoulder Screw, .43 x .29 Price: $3.50 |
| 22 |
747-04161 |
SUPPORT ROD (LH) Not Available Price: |
| 23 |
747-04946 |
TANK SUPPORT ROD (LH) Not Available Price: |
| 24 |
951-04309 |
FUEL TANK ASSEMBLY 2.5 GAL LO PRM Not Available Price: |
| 25 |
951-12182 |
Fuel Cap Price: $32.21 |
| 26 |
925-0963 |
Lamp Price: $6.73 |
| 27 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 925-1649. Price: $10.30 |
| 28 |
731-1999 |
Choke Plug Price: $8.98 |
| 29 |
946-04542 |
Throttle/Choke Cable, 46.5" Price: $41.41 |
| 30 |
725-13425 |
IGNITION MODULE SWITCH (RMC ELC PTO WHTE) This part replaces 725-06102A. Price: $84.60 |
| 31 |
925-06170B |
HOUR METER/SERVICE MINDER This part replaces 925-06154. Price: $65.84 |
| 32 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 33 |
925-1745A |
IGNITION KEYS This part replaces 625-05002. Price: $15.91 |
| 34 |
631-04272 |
Grill Price: $61.79 |
| 35 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 36 |
731-06194B |
Hood Scoop Price: $49.26 |
| 37 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
