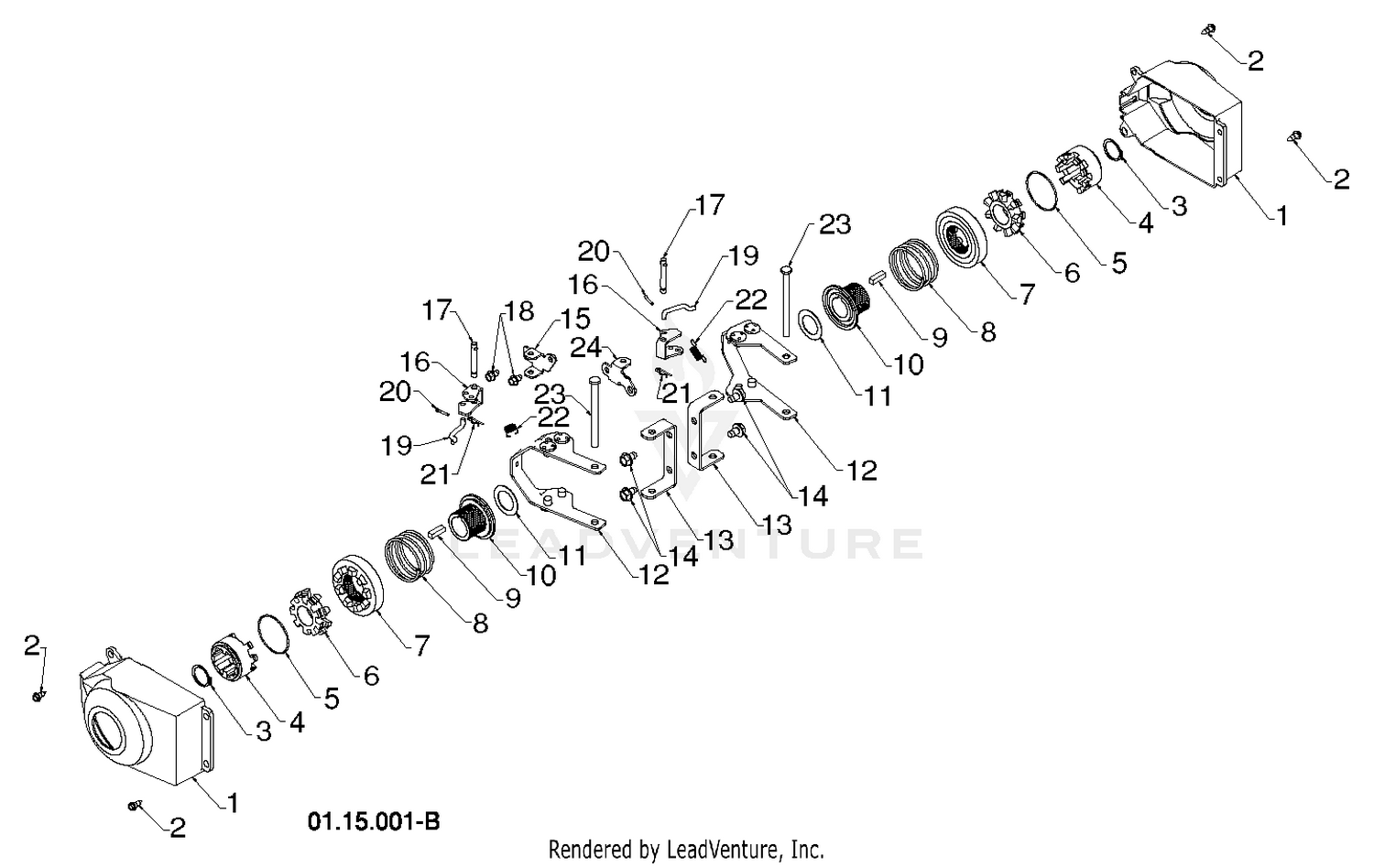

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
532405161 |
COVER, POWER STEERING Price: $5.99 |
| 2 |
532184471 |
SCREW, HEX HEAD, TAPPING Price: $2.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
812000045 |
RING Price: $3.99 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
581645001 |
DRIVER.WHEEL Price: $17.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
532182466 |
RING, WIRE RETAINER Price: $3.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
532187622 |
LOBE WHEEL Price: $11.99 |
| 7 |
581644901 |
SLIDE.CLUTCH.SNOW Price: $17.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
532179139 |
SPRING, CLUTCH SLIDE Price: $2.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
581645101 |
LOBE.AXLE Price: $8.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
532444949 |
WASHER 1.00 Price: $2.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
532445266 |
YOKE.WELDMENT.STEER.BLACK Price: $14.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
532184197 |
BRACKET.STEER.PNT.BLACK Price: $4.99 |
| 14 |
817490508 |
SCREW LT Price: $3.99 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 15 |
532194943 |
BRKT.STEER.PIVOT.RH This part replaces 532199511. Price: $2.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
532194944 |
BELLCRANK.STEER Price: $2.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
532181847 |
PIN, STEERING BELLCRANK Price: $8.99 |
| 18 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 19 |
532405077 |
LINK.STEER.YOKE Price: $2.99 |
| 20 |
532700279 |
RETAINER CLIP Price: $3.99 |
| 21 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
532193885 |
SPRING LATCH Price: $2.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
532182015 |
PIN, STEERING LEVER Price: $2.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 27 |
108-4269-01 |
WEIGHT Price: $146.07 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 32 |
137-8433 |
REEL+,7IN FWY(22)11 BLD This part replaces 117-0980. Price: $671.21 |
| 36 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
