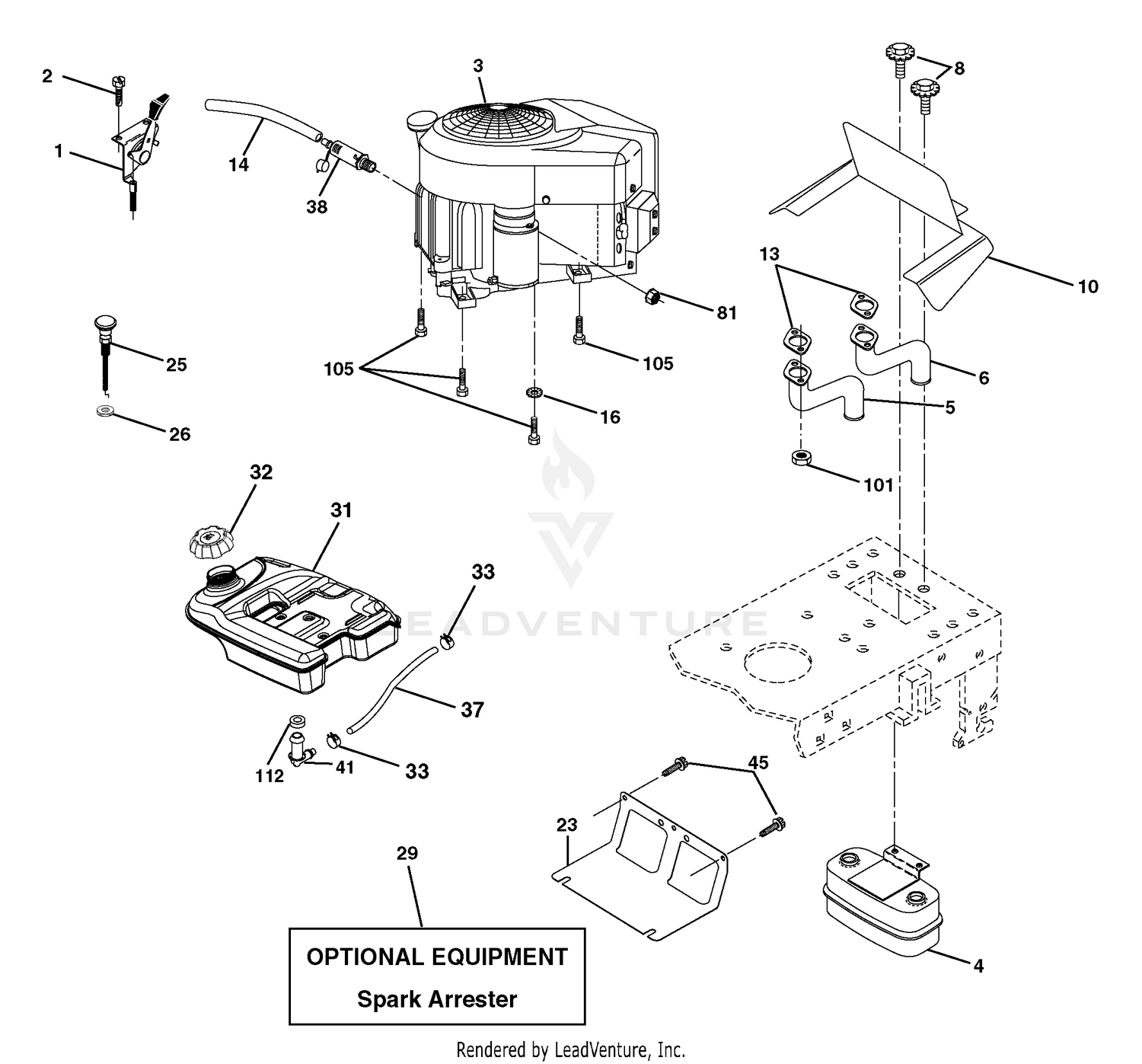

| Ref | Part Number | Description |
|---|
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 1 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 2 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
323-7 |
SCREW-HH Price: $0.65 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 6 |
94-5095 |
LIFT ARM ASM - SERVICE Price: $197.64 |
| 7 |
302-61 |
FITTING-GREASE Price: $10.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 12 |
99-2338 |
SHAFT-PIVOT This part replaces 94-5069. Price: $101.09 |
| 13 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 14 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 15 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
93-6912 |
DISCONTINUED Price: Call Us |
| 17 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 20 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
93-6738 |
CHAIN Price: $13.80 |
| 23 |
323-5 |
SCREW-HH Price: $0.41 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
62-7300 |
CHAIN Price: $9.30 |
| 25 |
282-4 |
SHACKLE Price: $32.98 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 26 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 26 |
873920600 |
Nut, Keps 3/8-24 Unf Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
