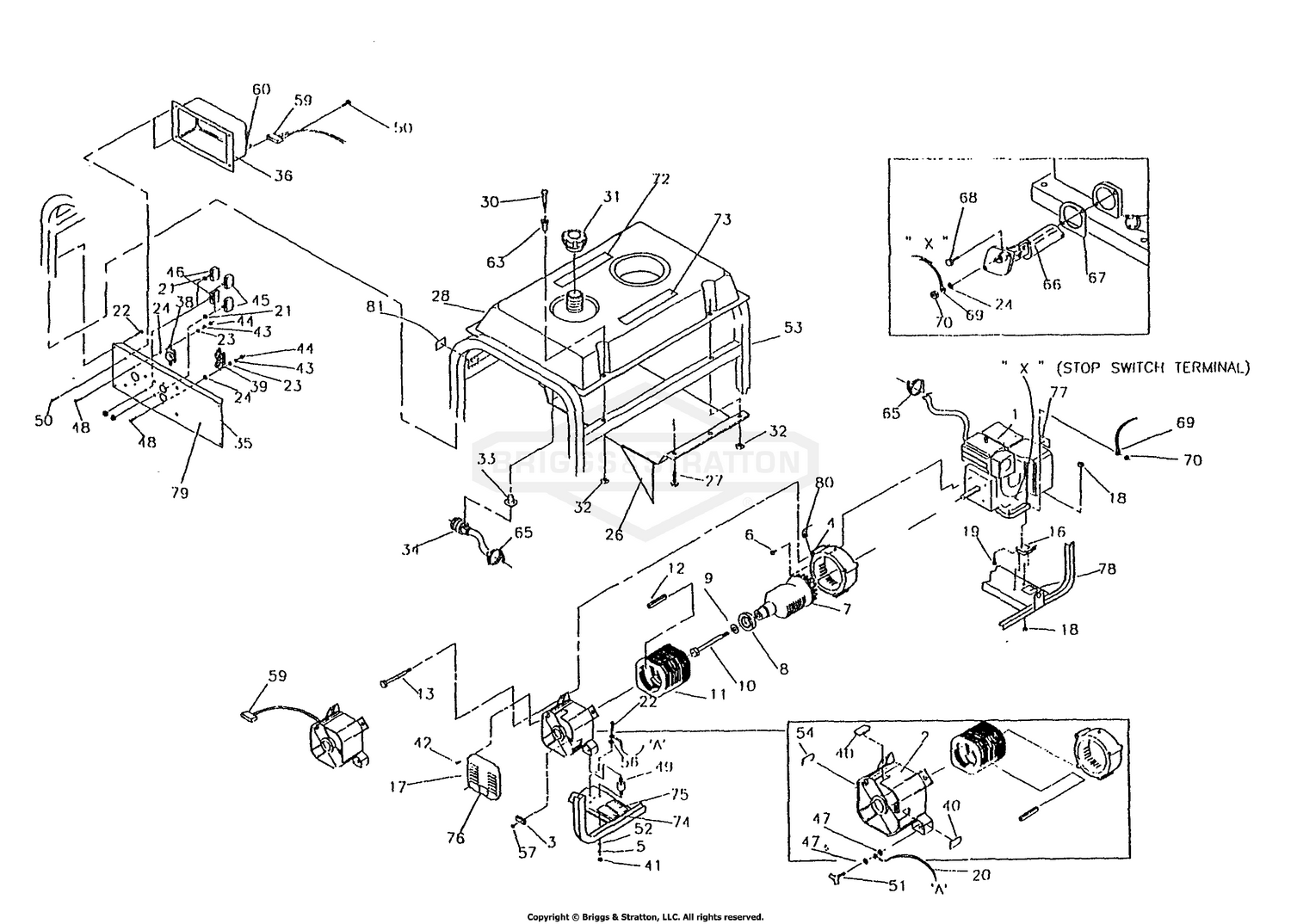

| Ref | Part Number | Description |
|---|
| 1 |
91009 |
ENGINE, BRIGGS Price: $555.25 |
| 2 |
SRV66825DGS |
CARRIER, Rear Bearing This part replaces 66825C. Price: $120.36 |
| 3 |
91825 |
BRUSH/BRIDGE RECTIFIER ASSEMBLY Price: Call Us |
| 4 |
66365GGS |
HOUSING, Engine Adapter This part replaces 66365G. Price: Call Us |
| 5 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 6 |
86307GS |
HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19 |
| 7 |
91836G |
ROTOR ASSEMBLY Price: Call Us |
| 8 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 9 |
67451 |
WASHER, SPECIAL Price: Call Us |
| 10 |
36180GS |
HHCS, 5/16-24 X 6 3/8 This part replaces 36180. Price: $9.39 |
| 11 |
96381GGS |
ASSY, STATOR, 4200DPE90, CSA This part replaces 96381G. Price: $613.80 |
| 12 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 13 |
86308GS |
HHCS, M6 - 1.0 x 115 SEMS This part replaces 86308. Price: $2.60 |
| 16 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 17 |
67025 |
COVER BEARING CARRIER Price: Call Us |
| 18 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 19 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 20 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 21 |
82881GS |
WASHER, 7/16" Int Lock This part replaces 82881. Price: Call Us |
| 22 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 23 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 24 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 26 |
79851A |
HEAT SHIELD Price: Call Us |
| 27 |
56892GS |
CRIMPTITE, 10-24 X 3/8 This part replaces 56892. Price: $2.79 |
| 28 |
77374 |
FUEL TANK Price: Call Us |
| 30 |
78331B |
CAPSCREW, M6-1.0 x 60mm Price: Call Us |
| 31 |
846987 |
CAP, Fuel Tank This part replaces 90878. Price: $17.57 |
| 32 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 33 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 34 |
7078298YP |
PULLEY CATCHER HZT/ This part replaces 78298. Price: $168.51 |
| 35 |
96367 |
CONTROL PANEL Price: Call Us |
| 36 |
81919GS |
PANEL, Control, Back, Plastic This part replaces 81919. Price: $109.99 |
| 38 |
68867GS |
OUTLET, 120/240V Locking, 20A This part replaces 68867. Price: $43.09 |
| 39 |
63025GS |
OUTLET, Duplex, 120 V, 15 A This part replaces 63025. Price: $8.70 |
| 40 |
84242GS |
GROMMET, Plastic RBC This part replaces 84242. Price: $4.19 |
| 41 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 42 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 43 |
22264 |
LOCK WASHER, No. 8 Price: $8.99 |
| 44 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 45 |
75207DGS |
BREAKER, Circuit This part replaces 75207D. Price: $12.69 |
| 46 |
209872GS |
BREAKER-CIRCUIT 20A This part replaces 75207. Price: $9.29 |
| 48 |
75475 |
SCREW, M4-0.7 x 10mm Price: $24.95 |
| 49 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 50 |
82308GS |
SCREW, Self Tapping, STC 3 x 18 This part replaces 82308. Price: $2.59 |
| 51 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 53 |
704005 |
PUSHNUT, CAP, 1/4 This part replaces 91020. Price: $3.82 |
| 54 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 56 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 57 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 59 |
22695GS |
FASTEN, On Tab Housing 6P This part replaces 22695. Price: $3.20 |
| 60 |
22694GS |
HOUSING, Receptacle This part replaces 22694. Price: $5.44 |
| 63 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 66 |
88977 |
LOW OIL SHUTDOWN SWITCH Price: Call Us |
| 67 |
91841 |
L.O.S. GASKET Price: Call Us |
| 68 |
24679GS |
TRILOBULAR, #10-32 x 3/4 This part replaces 24679. Price: $2.64 |
| 69 |
91842AGS |
WIRE-A, 18AWG, BLK, 445MM This part replaces 91842A. Price: $5.05 |
| 70 |
22471GS |
NUT, #8-32 This part replaces 22471. Price: $2.39 |
| 72 |
194984GS |
DECAL, Danger, French This part replaces 94479. Price: $13.99 |
| 73 |
690341 |
SCREW This part replaces 94480. Price: $4.70 |
| 74 |
74728GS |
DECAL, Neutral Ground This part replaces 74728. Price: $4.05 |
| 75 |
76247GS |
DECAL, Ground, French This part replaces 76247. Price: Call Us |
| 76 |
25717 |
NAME PLATE - CSA Price: Call Us |
| 77 |
81886GS |
DECAL, STA-BIL This part replaces 81886. Price: $9.79 |
| 78 |
96049GS |
DECAL, CRTN, 4PAK 75197 This part replaces 96049. Price: $5.79 |
| 79 |
98460GS |
DECAL, PNL, CNTRL, 4200, SRS This part replaces 98460. Price: $17.60 |
| 80 |
77026 |
DECAL - DATA SHEET Price: Call Us |
