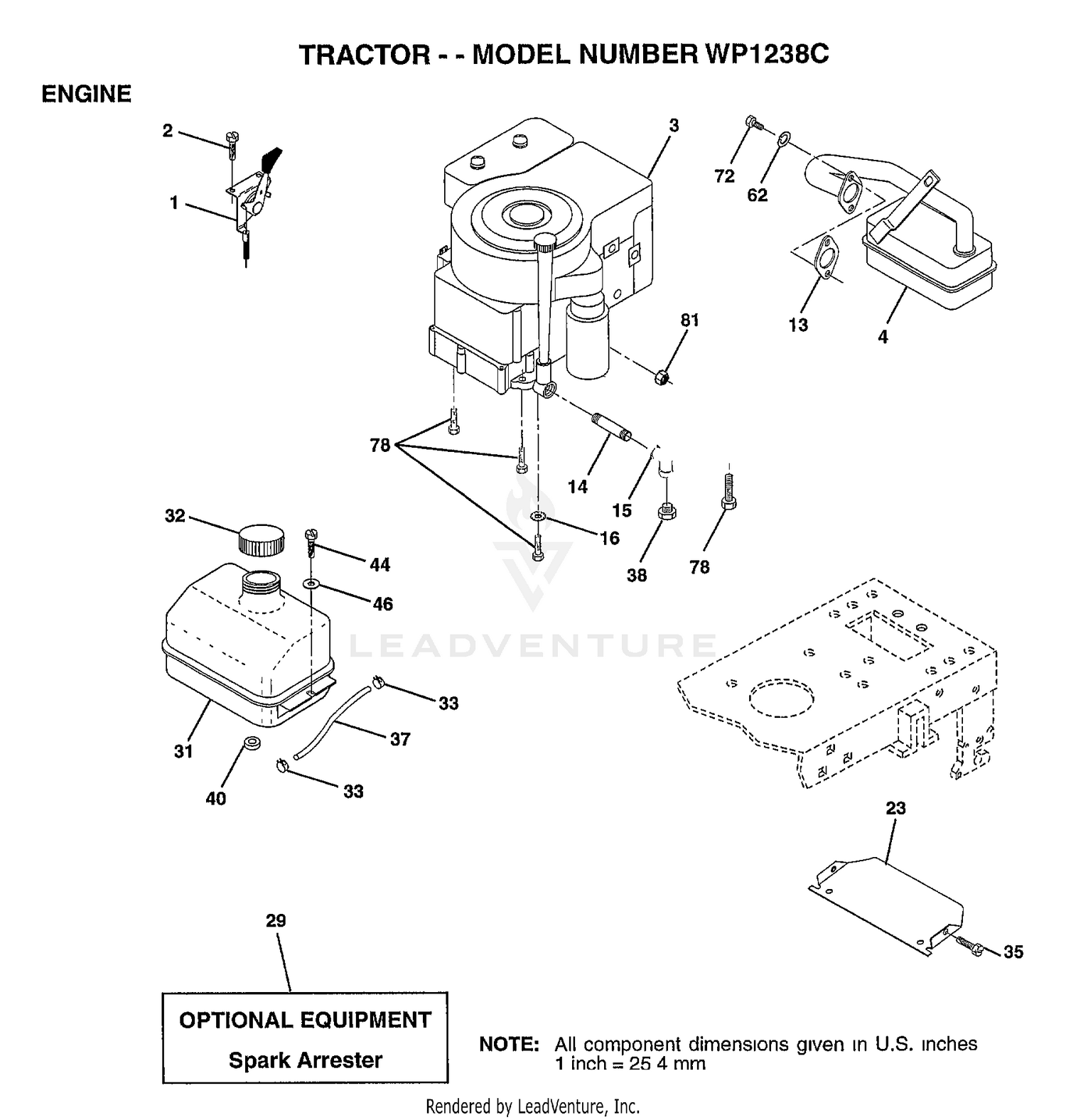

| Ref | Part Number | Description |
|---|
| 1 |
132771 |
THROTTLE CONTROL Price: Call Us |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 3 |
289707 |
ENGINE B&S Price: Call Us |
| 4 |
137348 |
MUFFLER Price: Call Us |
| 10 |
98-9705 |
STARTER ASM Price: $663.57 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 35 |
17490512 |
SCREW Price: Call Us |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 70 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 72 |
71070512 |
SCREW Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
| 80 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
100-9240 |
BOLT Price: $7.23 |
| 200 |
98-7758 |
BOLT ASM Price: $4.90 |
| 210 |
99-8375 |
COVER Price: $24.86 |
| 220 |
99-8371 |
NUT-HEX Price: $3.75 |
| 230 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 260 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
