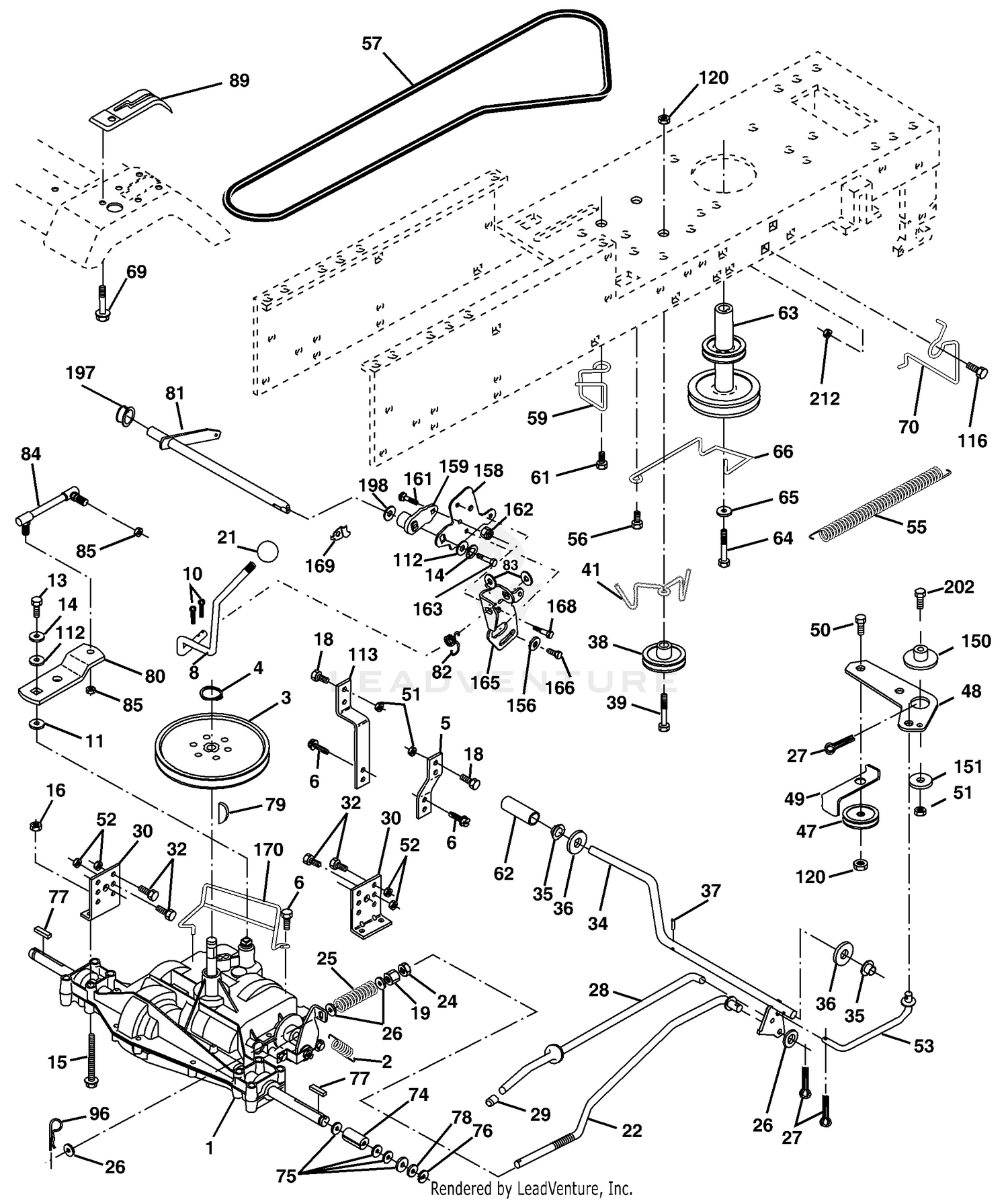

| Ref | Part Number | Description |
|---|
| 1 |
69-3620 |
DISCONTINUED Price: Call Us |
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 2 |
69-3630 |
NUT Price: $39.01 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 3 |
69-3640 |
COVER-SERVO Price: $389.32 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
69-3710 |
GASKET-SERVO Price: $58.74 |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
69-3610 |
NUT-HEX Price: $1.44 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 6 |
69-3600 |
NUT-HEX Price: $1.89 |
| 7 |
69-3590 |
RING-RETAINING Price: $4.15 |
| 8 |
165619 |
Rod Shift Fender Adjust Lt Price: Call Us |
| 8 |
69-3580 |
GUIDE-SPRING Price: $142.64 |
| 9 |
69-3130 |
PLUG Price: $62.97 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 13 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 13 |
74550412 |
Bolt 1/4-28 Unf Gr 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
107-4379 |
CYLINDER BLOCK KIT This part replaces 69-3910. Price: $2,151.85 |
| 15 |
69-3250 |
SWASHPLATE-VARIABLE Price: $640.86 |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 16 |
AU193488A1 |
JOURNAL This part replaces 69-3240. Price: $57.15 |
| 17 |
94-2878 |
PIN Price: $9.76 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 18 |
76-4590 |
SCREW Price: $5.43 |
| 19 |
69-3220 |
SCREW Price: $15.55 |
| 19 |
73800600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 20 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 21 |
140845 |
Knob Price: Call Us |
| 21 |
69-3190 |
SEAL-LIP Price: $94.91 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 22 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 23 |
75-0460 |
BEARING-BALL This part replaces 69-3210. Price: $175.71 |
| 24 |
107-4354 |
COVER-FRONT This part replaces 76-4610. Price: $1,302.74 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 26 |
69-3510 |
PIN Price: $29.51 |
| 27 |
69-3470 |
PIN Price: $1.27 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
69-3180 |
DISCONTINUED Price: Call Us |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 29 |
76-4600 |
GASKET-COVER, FRONT Price: $81.78 |
| 30 |
169592 |
Bracket Mtg Transaxle Price: Call Us |
| 30 |
93-9320 |
PLATE-VALVE, LH Price: $466.03 |
| 31 |
69-3450 |
PIN Price: $3.33 |
| 32 |
69-3820 |
SLEEVE-VALVE, CONTROL Price: $569.45 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18unc X 3/4 Price: Call Us |
| 33 |
28-3590 |
O-RING Price: $4.60 |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 34 |
28-3580 |
RING-BACK UP Price: $20.88 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 35 |
69-3880 |
SPRING-RETURN, NEUTRAL Price: $64.49 |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Ga. Price: Call Us |
| 36 |
69-3830 |
SPOOL-VALVE, ROTARY Price: $291.51 |
| 37 |
1572H |
Pin Roll 3/16 x 1" Price: Call Us |
| 37 |
25-2630 |
RING-BACK UP Price: $3.55 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 38 |
69-3890 |
BRACKET-RETURN, NEUTRAL Price: $60.82 |
| 39 |
69-3860 |
SCREW Price: $3.87 |
| 39 |
72110622 |
Bolt RDH 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
| 40 |
69-3870 |
HANDLE-VALVE, CONTROL Price: $60.69 |
| 41 |
107-4374 |
WASHER-LOCK This part replaces 69-3900. Price: $0.81 |
| 41 |
175556 |
Keeper Belt Flat Idler Price: Call Us |
| 42 |
69-3840 |
O-RING Price: $1.58 |
| 43 |
69-3650 |
PISTON-SERVO Price: $852.55 |
| 44 |
69-3690 |
BEARING Price: $153.22 |
| 45 |
69-3560 |
O-RING Price: $7.18 |
| 46 |
69-3920 |
PISTON RING AND O-RING KIT This part replaces 69-3570. Price: $181.90 |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 47 |
69-3720 |
COVER-SERVO Price: $406.84 |
| 48 |
154407 |
Bellcrank Asm Price: Call Us |
| 48 |
69-3140 |
BRACKET Price: $30.30 |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 49 |
69-3080 |
PLUG Price: $40.47 |
| 50 |
69-3150 |
SCREW Price: $2.17 |
| 50 |
72110612 |
Bolt Hex Hd 3/8-16 unc X 1-1/2 Price: Call Us |
| 51 |
69-3070 |
WASHER Price: $0.28 |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
237-22 |
O-RING Price: $2.43 |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link Clutch Price: Call Us |
| 53 |
69-3800 |
VALVE Price: $39.31 |
| 54 |
69-3810 |
VALVE-BY PASS Price: $148.67 |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 55 |
69-3780 |
PLUG Price: $47.78 |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 56 |
69-3770 |
SHIM Price: $51.82 |
| 57 |
130801 |
V-Belt Ground Drive 95 25 Price: Call Us |
| 57 |
69-3790 |
SPRING Price: $18.69 |
| 58 |
94-9414 |
ADAPTER-SUCTION Price: $211.04 |
| 59 |
169691 |
Keeper Belt Span Ctr Price: Call Us |
| 59 |
69-3460 |
PLUG-EXPANSION Price: $76.84 |
| 60 |
94-9413 |
SCREW Price: $18.13 |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 61 |
94-9412 |
SEAL-ADAPTER, SUCTION Price: $129.88 |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 62 |
93-9321 |
PLUG ASM Price: $98.84 |
| 63 |
175410 |
Engine Pulley Price: Call Us |
| 63 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 64 |
173937 |
Bolt Hex Price: Call Us |
| 64 |
69-3730 |
RELIEF VALVE KIT Price: $226.03 |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 65 |
69-3550 |
PIN Price: $3.66 |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 66 |
69-3400 |
SCREW Price: $1.29 |
| 67 |
69-3430 |
KEY-WOODRUFF Price: $4.89 |
| 68 |
69-3410 |
ADAPTER-A, FLANGE Price: $516.81 |
| 69 |
142432 |
Screw Hex wsh Hi Lo 1/4 x 1/2 unc Price: Call Us |
| 69 |
69-3420 |
DISCONTINUED Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 70 |
69-3440 |
O-RING Price: $16.24 |
| 71 |
69-3540 |
COVER-GEROTOR Price: $538.45 |
| 72 |
69-3390 |
GEROTOR ASM Price: $542.68 |
| 73 |
69-3700 |
GUIDE-SPRING Price: $39.82 |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 74 |
69-3660 |
SCREW Price: $95.73 |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga Price: Call Us |
| 75 |
69-3680 |
STOP Price: $65.27 |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 76 |
69-3670 |
SPRING-SERVO Price: $194.02 |
| 77 |
123583X |
Key Square 2 0 x 1845/1865 Price: Call Us |
| 77 |
92-1352 |
PLUG This part replaces 69-3120. Price: $30.00 |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga Price: Call Us |
| 78 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
145090 |
Arm Shift Price: Call Us |
| 81 |
165592 |
Shaft Asm Cross Tapered PMST/20 Price: Call Us |
| 82 |
123782X |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga Price: Call Us |
| 84 |
166231 |
Link Transaxle PMST/20" Zinc Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4 - 28 FNTHD Price: Call Us |
| 89 |
169372X428 |
Console Shift STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
187414 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
