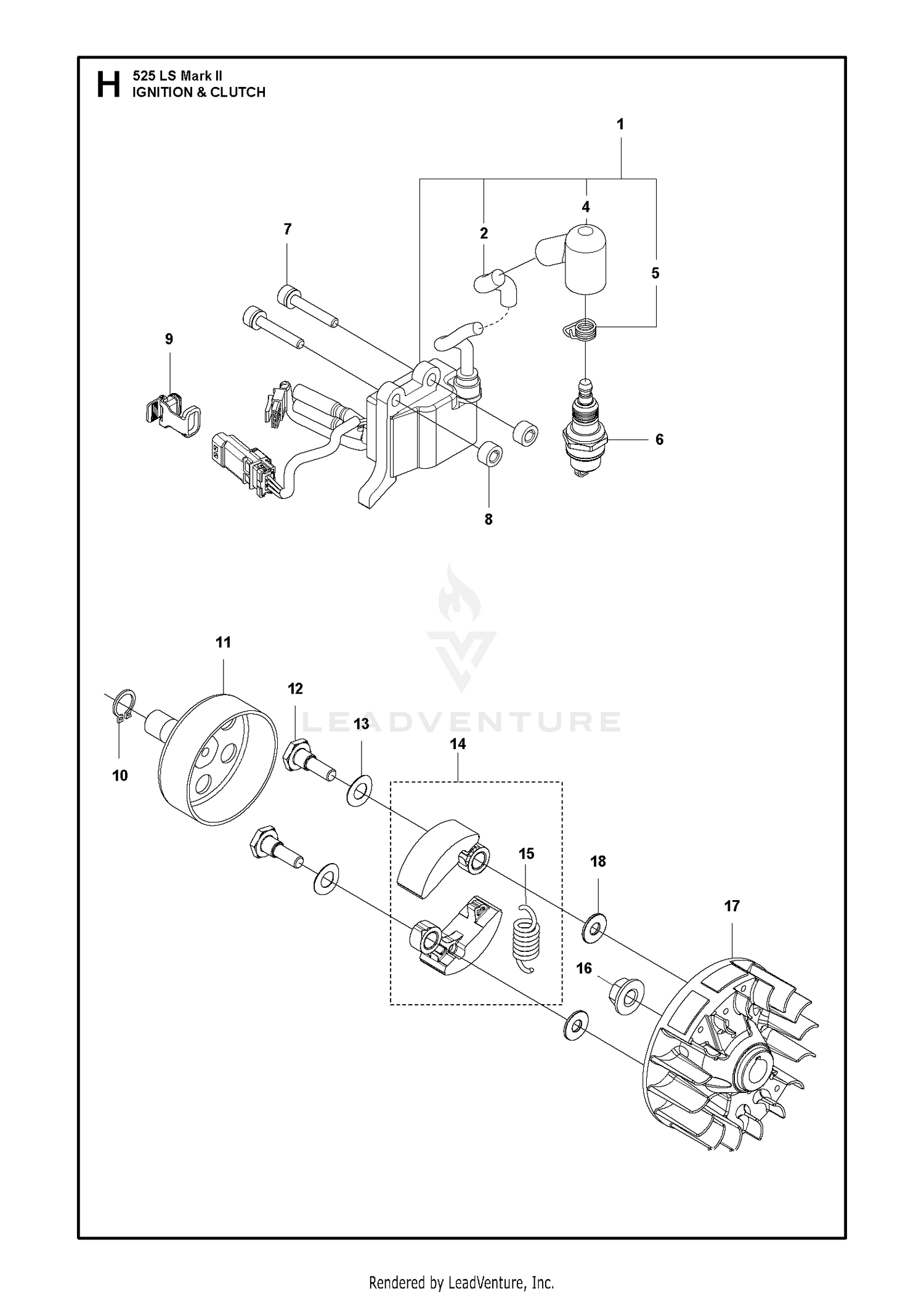

IGNITION SYSTEM & CLUTCH
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 597717201 | IGNITION COIL ASSY Price: $54.99 |
| 2 | 597717801 | TUBE Price: $1.99 |
| 4 | 597717701 | SPARK PLUG CAP Price: $1.99 |
| 5 | 597717601 | SPRING IGNITION COIL Price: $24.99 |
| 6 | 590710101 | SPARK PLUG HQT-2 RESISTOR Price: $4.99 |
| 7 | 521515801 | BOLT M4 X 25 Price: $2.99 |
| 8 | 588171401 | SPACER This part replaces 521769701. Price: $3.99 |
| 9 | 531067601 | CONNECTOR Price: $1.99 |
| 10 | 516124101 | RING Price: $3.99 |
| 11 | 581142001 | CLUTCH DRUM Price: $29.99 |
| 12 | 513189601 | SCREW Price: $2.99 |
| 13 | 521758201 | WASHER Price: $2.99 |
| 15 | 576400701 | CLUTCH SPRING Price: $5.99 |
| 16 | 516437401 | NUT(RPLS 1140-43230&182301) This part replaces 504118001. Price: $2.99 |
| 17 | 578967801 | FLYWHEEL Price: $59.99 |
| 18 | 505054401 | WASHER Price: $2.99 |
