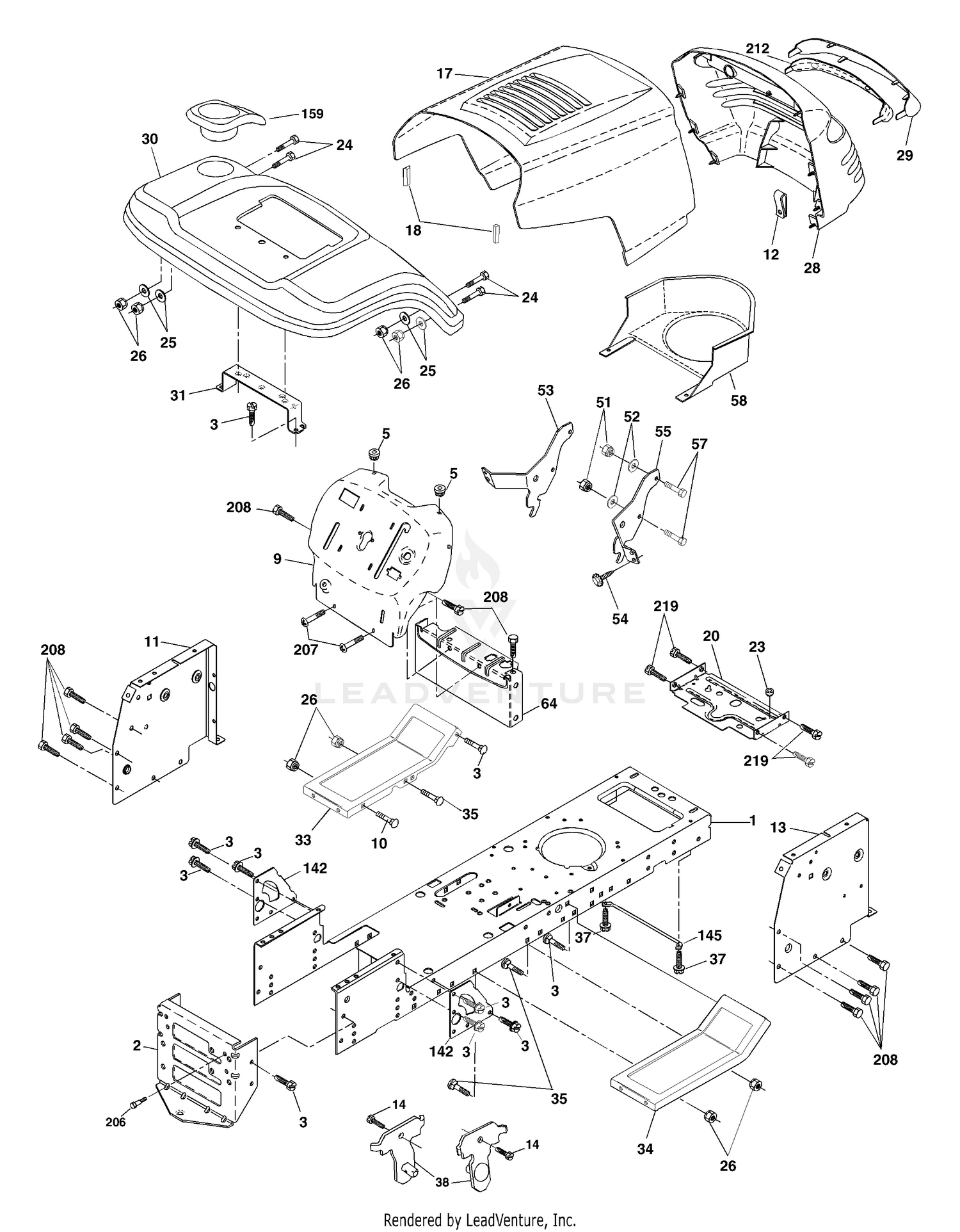

| Ref | Part Number | Description |
|---|
| 1 |
106-0050 |
LH INNER COVER ASM This part replaces 69-6800. Price: $186.64 |
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
69-6360-01 |
PLATE-GEARBOX, LH ASM Price: $258.21 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
237-81 |
O-RING Price: $2.76 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 7 |
237-65 |
O-RING Price: $2.50 |
| 8 |
93-9918 |
HYD HOSE ASM Price: $441.28 |
| 9 |
532168345 |
DASH This part replaces 532171924. Price: $32.72 |
| 9 |
93-9917 |
HYD HOSE ASM Price: $241.67 |
| 10 |
237-22 |
O-RING Price: $2.43 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
237-42 |
O-RING Price: $2.78 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 13 |
94-4907 |
MOTOR-HYD Price: $1,685.80 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 14 |
63-0660 |
GEARBOX PULLEY WA This part replaces 63-0660-03. Price: $80.31 |
| 15 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 16 |
106-0051 |
LH OUTER COVER ASM This part replaces 69-6810. Price: $251.73 |
| 17 |
3269-25 |
RIVET-POP Price: $0.27 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 18 |
69-6870 |
PLATE-MAGNET Price: $4.91 |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK Price: $9.99 |
| 20 |
69-6260 |
MAGNET Price: $58.32 |
| 21 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 22 |
3233-30 |
SCREW-CARR Price: $3.26 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 23 |
69-6960 |
SPACER-IDLER Price: $22.57 |
| 24 |
140-5848 |
PULLEY-IDLER This part replaces 63-1540-03. Price: $62.48 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
32128-23 |
NUT-HF Price: $1.51 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 28 |
532179845 |
GRILLE/LENS ASM Price: $173.99 |
| 28 |
95-0845 |
DECAL-HOC Price: $11.75 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
532169470 |
FENDER This part replaces 532177087. Price: $139.99 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
532136619 |
BRACKET FENDER Price: $4.99 |
| 32 |
99-4442 |
FITTING-TEE Price: $73.84 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 33 |
99-4443 |
FITTING Price: $27.38 |
| 34 |
354-79 |
CAP-DUST Price: $7.81 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 159 |
532169473 |
CUPHOLDER, GREY This part replaces 532177088. Price: $7.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
