| Ref | Part Number | Description |
|---|
| 1 |
92-7531-03 |
TUBE-PUMP CONTROL This part replaces 92-7531. Price: $139.90 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
323-9 |
SCREW-HH Price: $1.29 |
| 6 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
92-7608-03 |
BRACKET-SPRING This part replaces 92-7608. Price: $16.86 |
| 13 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 14 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 15 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 16 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 18 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 19 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 20 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 21 |
233-42 |
KNOB Price: $12.88 |
| 22 |
75-6490 |
LEVER ASM Price: $78.45 |
| 23 |
75-6710 |
DECAL - FAST/SLOW Price: $5.87 |
| 23 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 24 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
32128-20 |
NUT-HF Price: $0.99 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 28 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 29 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 30 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 31 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 32 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 33 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 34 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 35 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 36 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 37 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 38 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 39 |
256-42 |
BUSHING Price: $7.03 |
| 40 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 41 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 42 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 43 |
60-5700 |
SPRING Price: $27.02 |
| 44 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 45 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 46 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 47 |
5-0652 |
SPACER Price: $5.35 |

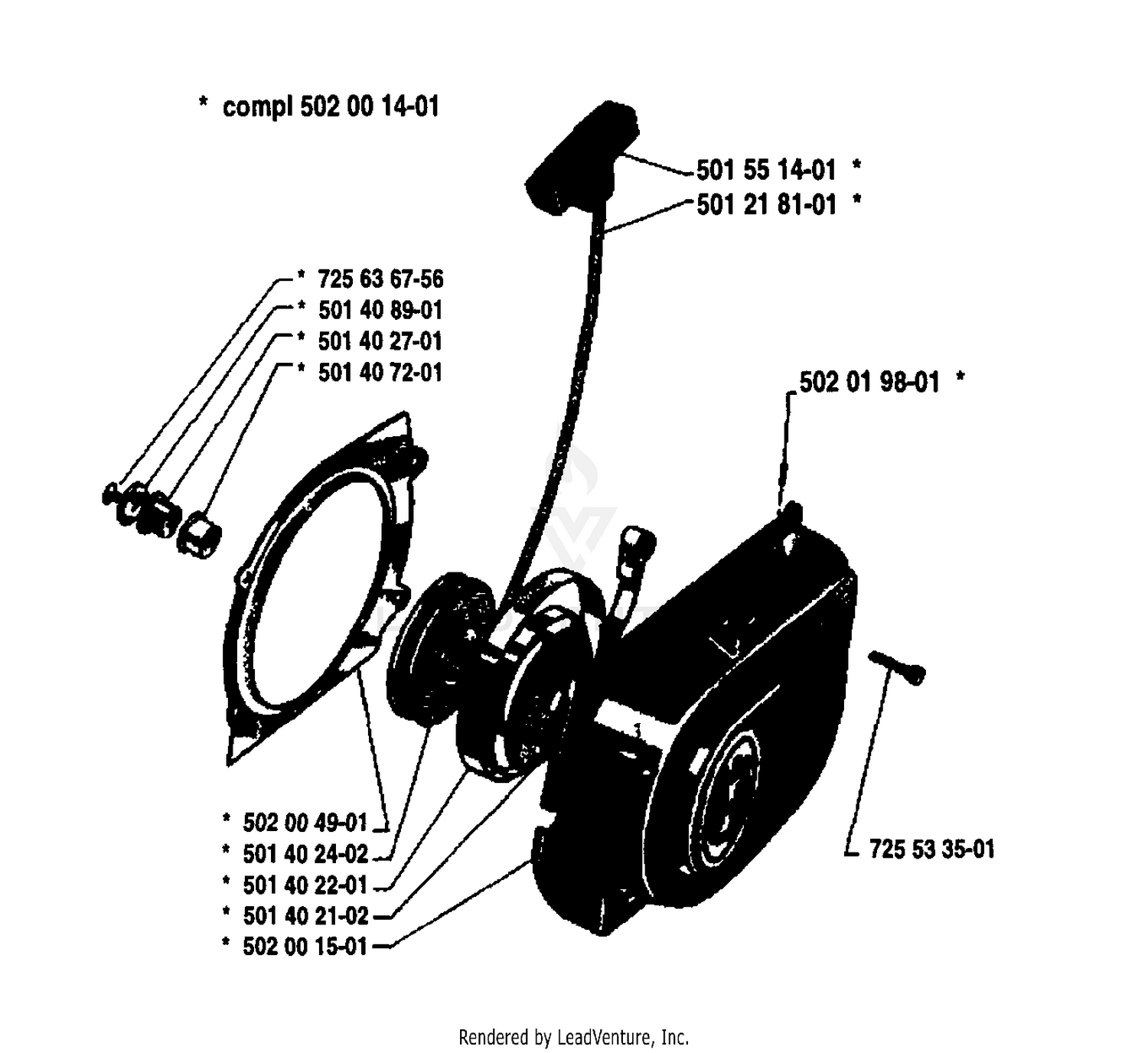

| 501218101 |
501218101 |
STARTER ROPE Price: $8.99 |
| 501402102 |
501402102 |
DAMPING DISC Price: $17.99 |
| 501402201 |
501402201 |
RECOIL SPRING Price: $14.99 |
| 501402402 |
501402402 |
STARTER PULLEY Price: $37.99 |
| 501402701 |
537226101 |
KIT, BEARING This part replaces 501402701. Price: $49.99 |
| 501407201 |
537226101 |
KIT, BEARING This part replaces 501407201. Price: $49.99 |
| 501408901 |
501408901 |
WASHER Price: $2.46 |
| 501551401 |
503543901 |
STARTER HANDLE This part replaces 501551401. Price: $9.99 |
| 502001401 |
502001401 |
Price: $115.08 |
| 502001501 |
502001501 |
Price: $90.87 |
| 502004901 |
502004901 |
AIR CONDUCTOR Price: $6.99 |
| 502019801 |
502019801 |
PIN Price: $4.61 |
| 725636756 |
725636755 |
SCREW MF6S 6X14 This part replaces 725636756. Price: $3.99 |
