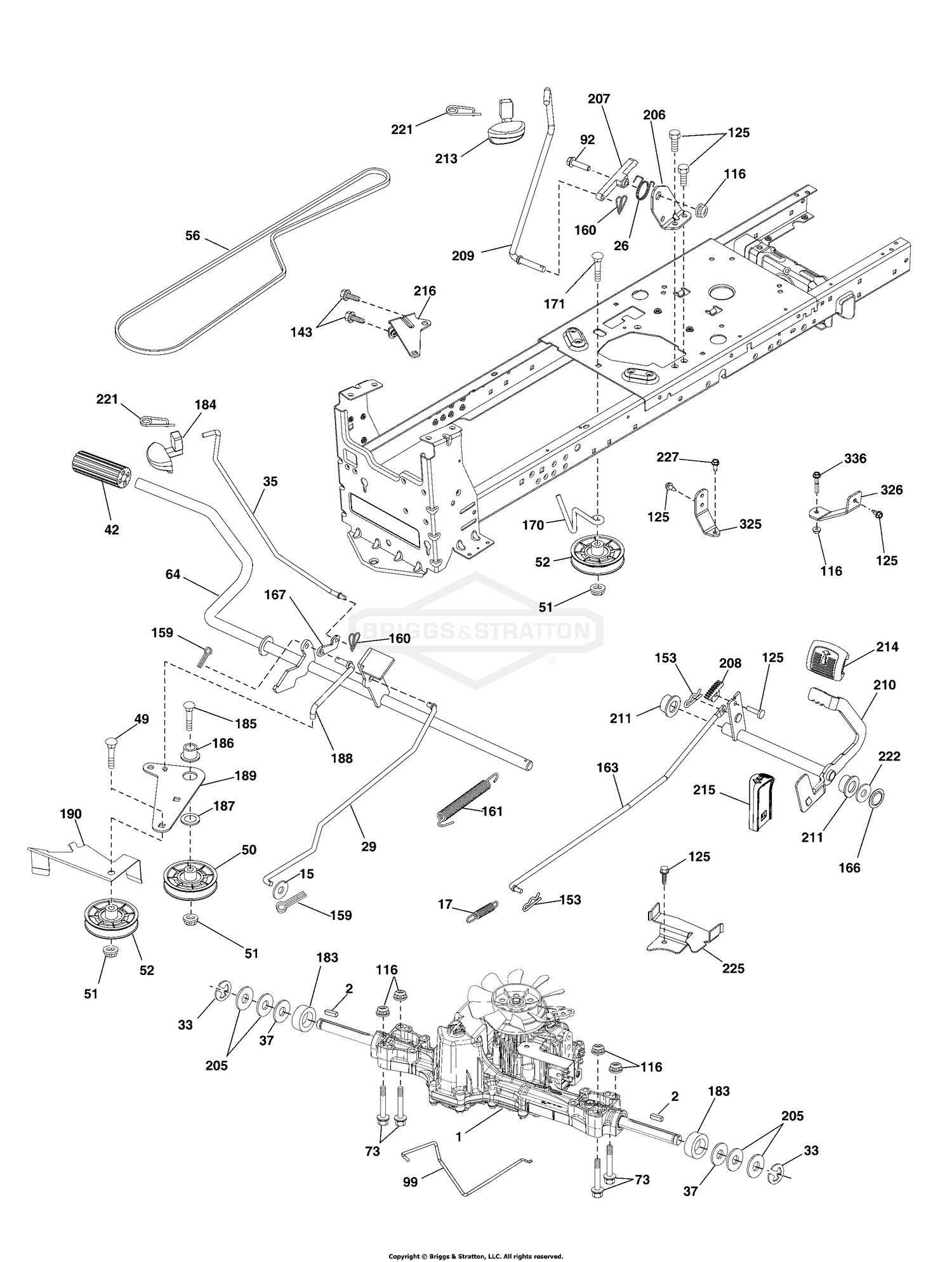

| Ref | Part Number | Description |
|---|
| 2 |
704998 |
Key Price: $8.49 |
| 15 |
705335 |
Washer 13/32 x 13/16 x 16 Ga. Price: $5.01 |
| 17 |
705229 |
Spring Brake Price: $9.69 |
| 26 |
705130 |
Spring Return Cruise Price: $4.03 |
| 29 |
705157 |
Rod, Brake Price: $22.49 |
| 33 |
705318 |
Ring E Price: $9.65 |
| 35 |
84004076 |
ROD, Park Brake Price: $13.39 |
| 37 |
705052 |
WASHER, Hardened Price: $9.42 |
| 42 |
84004022 |
COVER, Foot Pedal Price: $13.29 |
| 49 |
705341 |
Bolt Price: $4.29 |
| 50 |
705080 |
Pulley Idler Flat Price: $35.09 |
| 51 |
84004161 |
NUT, 3/8-16, Lock Price: $10.09 |
| 52 |
705079 |
Idler V-Groove Price: $28.91 |
| 56 |
704426 |
V-Belt Drive Price: $62.50 |
| 64 |
705119 |
Shaft Asm. Pedal Brake Control Price: $117.23 |
| 73 |
705359 |
Bolt 5/16-18 x 2-1/2 Gr. 5 Price: $5.59 |
| 92 |
705364 |
Bolt 5/16-18 unc x 1.25 Price: $6.69 |
| 99 |
705232 |
Rod Bypass Price: $7.41 |
| 116 |
705352 |
Nut, Lock Hex Flange 5/16-18 Unc Price: $5.02 |
| 125 |
709742 |
BOLT This part replaces 705321. Price: $7.67 |
| 143 |
84004011 |
SCREW, 5/16-18 X 1/2, Thread Roll Price: $7.19 |
| 153 |
84003969 |
RETAINER, Spring Price: $11.19 |
| 159 |
705366 |
Pin Cotter 1/8 x 3/4 Price: $5.63 |
| 160 |
705029 |
RETAINER CLIP Price: $7.88 |
| 161 |
704989 |
Spring Return Clutch Price: $20.52 |
| 163 |
705263 |
Rod Control Pedal Price: $37.49 |
| 166 |
705245 |
Nut Push Price: $5.15 |
| 167 |
705165 |
Latch Brake Parking Price: $8.05 |
| 170 |
705077 |
Keeper Belt Centerspan Price: $8.13 |
| 171 |
705342 |
Bolt RDHD SQNK 3/8-16 unc x 2 Price: $5.91 |
| 183 |
705011 |
Spacer Split Price: $9.97 |
| 184 |
84004077 |
HANDLE, Parking Brake Price: $24.49 |
| 185 |
705343 |
BOLT, 3/8-16 X 2-3/4, GR 5, Carriage Price: $9.09 |
| 186 |
705070 |
Spacer Retainer Price: $10.15 |
| 187 |
705336 |
Washer Price: $3.94 |
| 188 |
705078 |
Link Clutch Ground Drive Price: $10.65 |
| 189 |
705068 |
Bellcrank Ground Drive Price: $9.62 |
| 190 |
705069 |
Keeper Bellcrank Ground Price: $8.38 |
| 205 |
704995 |
WASHER Price: $6.90 |
| 206 |
705264 |
Bracket Mount Latch Price: $4.34 |
| 207 |
84004230 |
LATCH, Control Price: Call Us |
| 208 |
705121 |
Gear Sector Control Price: $4.49 |
| 209 |
84004078 |
ROD, Cruise Control Price: $13.19 |
| 210 |
705139 |
Rocker Asm. Pedal Price: $81.74 |
| 211 |
704994 |
BUSHING BRAKE SHAFT Price: $5.29 |
| 213 |
84004079 |
KNOB, Cruise Control Price: $24.99 |
| 214 |
705236 |
Pedal Forward Price: $5.98 |
| 215 |
705145 |
Pedal Reverse Price: $5.99 |
| 216 |
705096 |
Bracket Pulley Idler Price: $6.23 |
| 221 |
705155 |
Retainer Spring Clip Handle Price: $5.32 |
| 222 |
705367 |
WASHER, 21/32 x1-1/4 10 Ga. Price: $6.10 |
| 225 |
705156 |
Keeper Belt Trans. Price: $17.20 |
| 227 |
705327 |
SCREW, 5/16-18 x 3/4 Thred Roll Price: $6.20 |
| 325 |
84004215 |
STRAP, Torque Price: Call Us |
| 326 |
84004220 |
BRACKET, Torque Price: Call Us |
