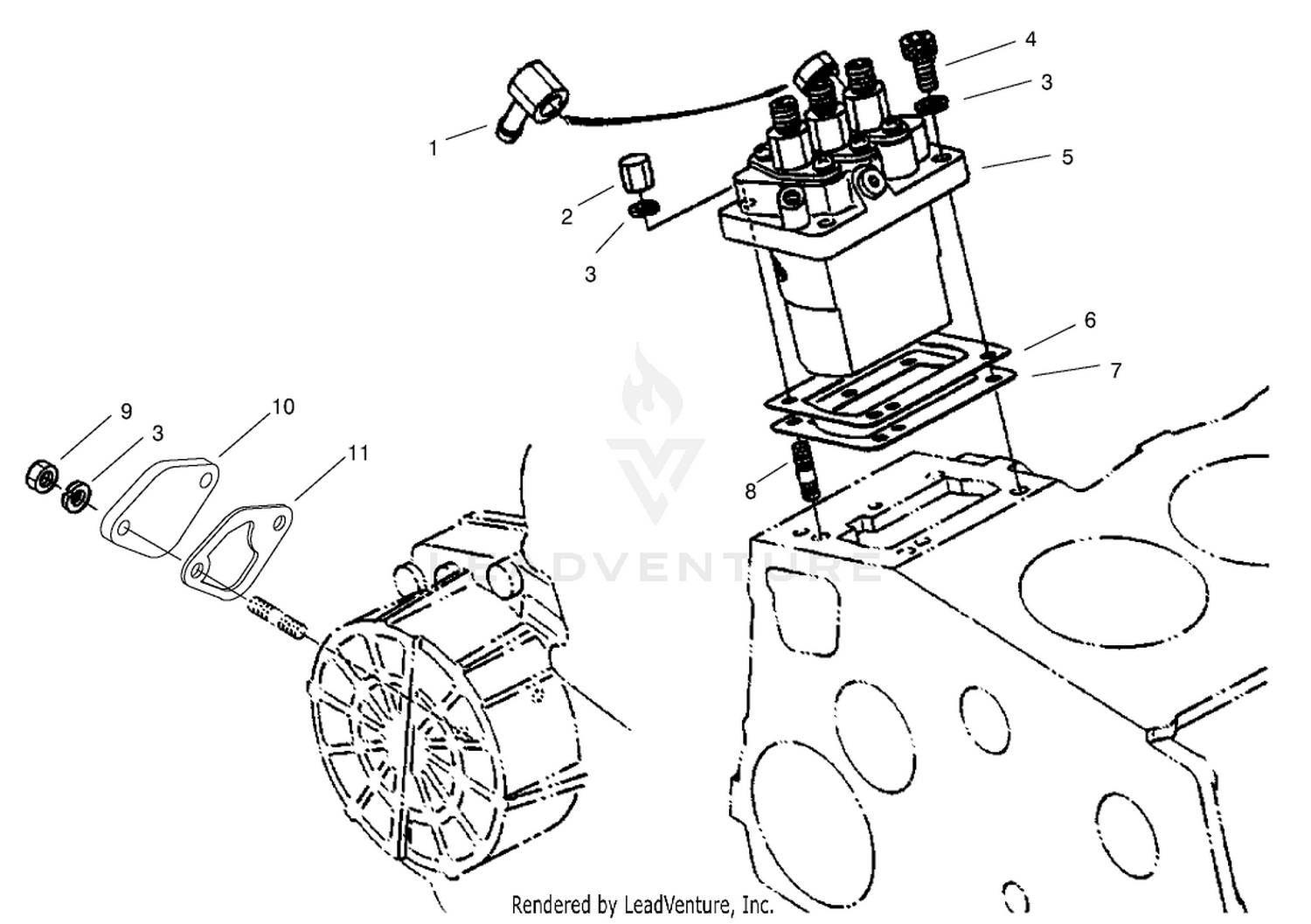

Injection Pump Installation Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-9596 | JOINT-EYE Price: $18.69 |
| 2 | 98-9440 | NUT-CAP Price: $18.34 |
| 3 | 98-7699 | WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 4 | 98-9361 | BOLT-HSH Price: $0.76 |
| 5 | 98-9643 | INJECTION PUMP ASM Price: $2,551.99 |
| 6 | 98-9456 | SHIM-INJECTION (0.20MM) Price: $7.29 |
| 6 | 98-9457 | SHIM-INJECTION (0.25MM) Price: $8.40 |
| 7 | 98-9458 | SHIM-INJECTION (0.30MM) Price: $12.10 |
| 8 | 98-9438 | STUD Price: $1.33 |
| 9 | 98-7572 | NUT Price: $0.32 |
| 10 | 99-3514 | COVER Price: $11.33 |
