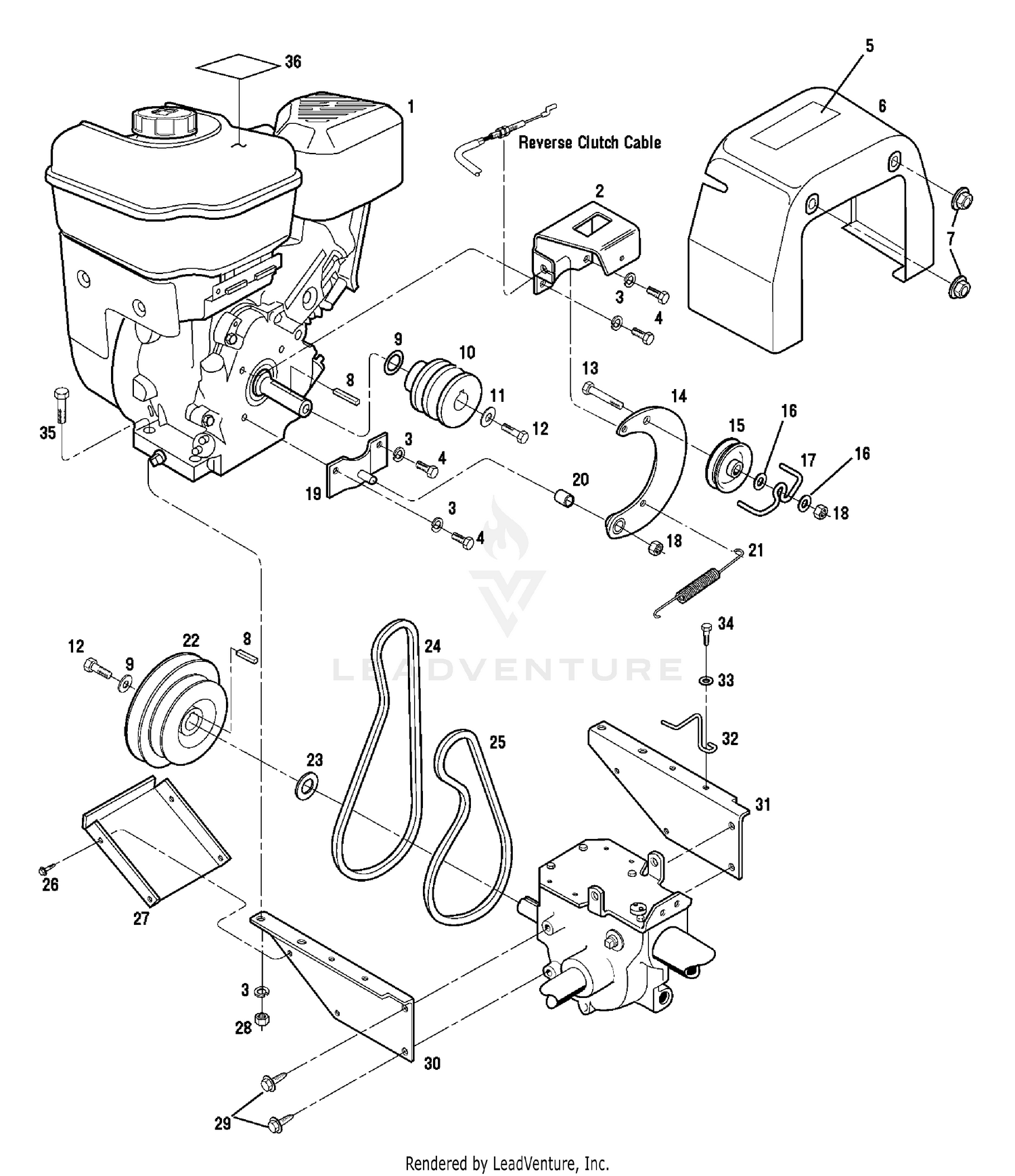

| Ref | Part Number | Description |
|---|
| 2 |
786-04070-0637 |
BELT COVER BRACKET Not Available This part replaces 1917326001. Price: |
| 3 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 4 |
1111696 |
HEX SCREW Not Available Price: |
| 5 |
1904557 |
DECAL-WARNING BELT Not Available Price: |
| 7 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 8 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 1108841. Price: $4.20 |
| 9 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 10 |
619-04130 |
Engine Pulley This part replaces 1916520. Price: $48.42 |
| 11 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 12 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces 9572. Price: $3.85 |
| 13 |
1111606 |
BOLT - HEX HD, 5/16-18 x 2 Not Available Price: |
| 14 |
1916578001 |
REVERSE IDLER ARM Not Available Price: |
| 15 |
756-04169 |
Reverse Idler Pulley This part replaces 1916535. Price: $22.24 |
| 16 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 17 |
732-04081 |
Wire Formed Belt Guide This part replaces 1916725. Price: $9.09 |
| 18 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 1110107. Price: $2.83 |
| 19 |
1916559001 |
BRACKET, REVERSE IDLER Not Available Price: |
| 20 |
1916536 |
BUSHING Not Available Price: |
| 21 |
1916724 |
SPRING-REV RETURN Not Available Price: |
| 22 |
619-04123 |
Transmission Pulley This part replaces 1916522. Price: $145.54 |
| 23 |
736-04079 |
Support Washer This part replaces 1440. Price: $4.13 |
| 24 |
954-04095 |
Reverse Clutch Belt This part replaces 1916753. Price: $17.19 |
| 25 |
954-04094 |
Forward Clutch Belt This part replaces 1909404. Price: $28.34 |
| 26 |
1900396 |
SCREW-HW M10-32X.5 Not Available Price: |
| 27 |
786-04080-0638 |
Belts/Pulleys Guard This part replaces 1916189001. Price: $18.41 |
| 28 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 30 |
786-04066-0637 |
ENGINE SUPPORT (LH) Not Available This part replaces 1916797001. Price: |
| 31 |
786-04067-0637 |
ENGINE SUPPORT (RH) Not Available This part replaces 1916796001. Price: |
| 32 |
1916736 |
BELT GUIDE Not Available Price: |
| 33 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 35 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 1100799. Price: $3.75 |
