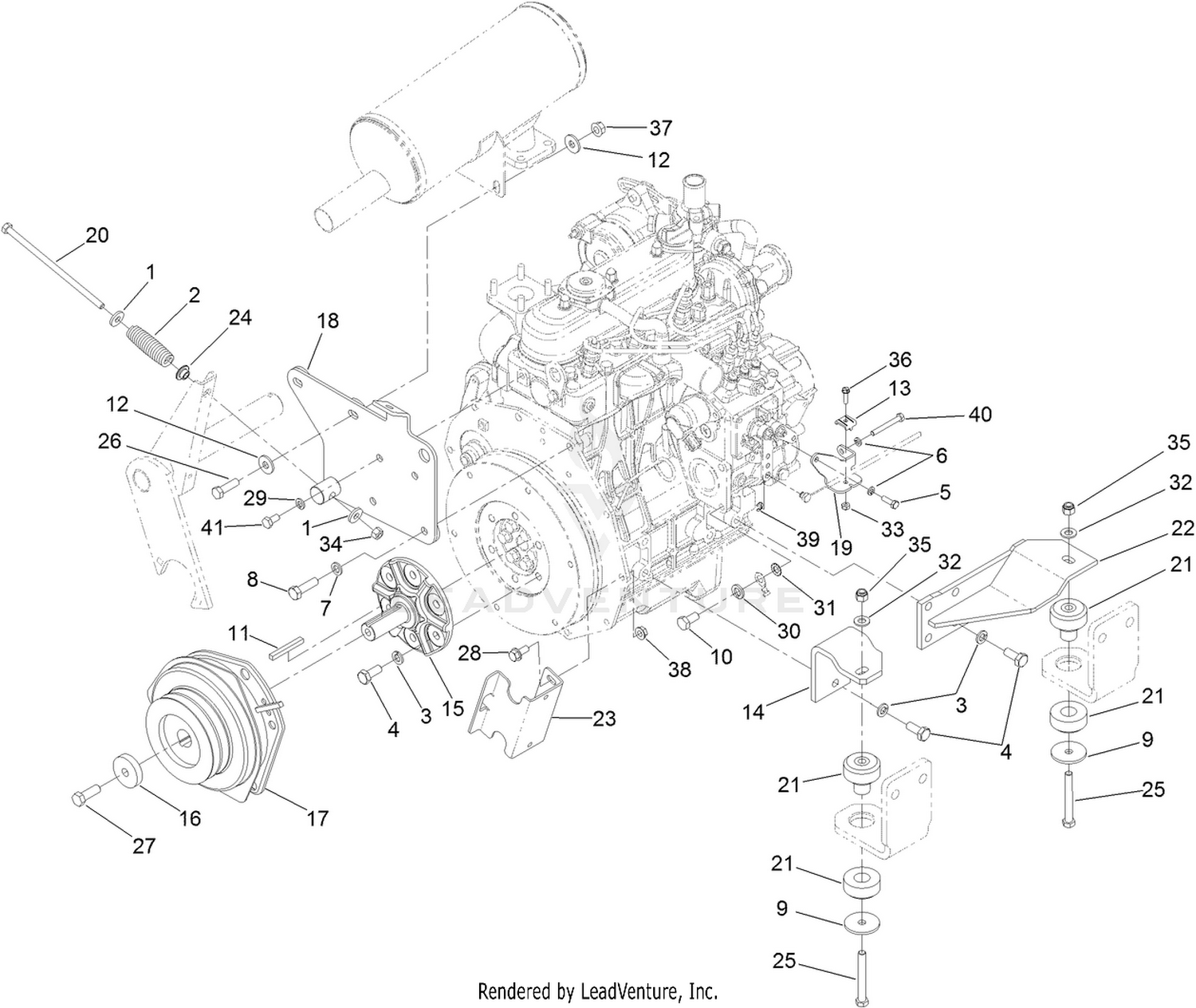

| Ref | Part Number | Description |
|---|
| 1 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 2 |
21-0400-01 |
SPRING-COMPRESSION Price: $20.88 |
| 3 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 4 |
43-0090 |
SCREW-HH Price: $8.05 |
| 5 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 6 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
56-2140 |
SCREW-HH Price: $4.17 |
| 9 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 10 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 11 |
63-8150 |
KEY-SQUARE Price: $9.44 |
| 12 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 13 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 14 |
104-1713-03 |
MOUNT-ENGINE, RH REAR Price: $78.67 |
| 15 |
104-1715 |
HUB-CLUTCH Price: $177.49 |
| 16 |
105-3698 |
SPACER Price: $65.71 |
| 17 |
107-9061 |
ELECTRIC CLUTCH / BRAKE ASM Price: $1,140.58 |
| 18 |
108-6561-03 |
MOUNT-MUFFLER Price: $183.52 |
| 19 |
110-9682-03 |
BRACKET-THROTTLE Price: $28.22 |
| 20 |
110-9696 |
BOLT-HH Price: $18.93 |
| 21 |
115-0600 |
MOUNT-ENGINE Price: $29.39 |
| 22 |
117-0836-03 |
MOUNT-ENGINE, RH FRONT Price: $82.72 |
| 23 |
120-6568-03 |
STOP-CLUTCH Price: $32.96 |
| 24 |
125-9249 |
SPACER-COUPLER, RUBBER Price: $2.15 |
| 25 |
323-14 |
SCREW-HH Price: $1.34 |
| 26 |
323-44 |
SCREW-HH Price: $3.69 |
| 27 |
3212-5 |
SCREW-HH Price: $2.46 |
| 28 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 31 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 33 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 34 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 35 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 36 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 37 |
32128-21 |
NUT-HF Price: $0.39 |
| 38 |
32128-25 |
NUT-HF Price: $3.19 |
| 39 |
701197 |
E-RING Price: $2.99 |
| 40 |
33113-050 |
SCREW-HH Price: $0.62 |
