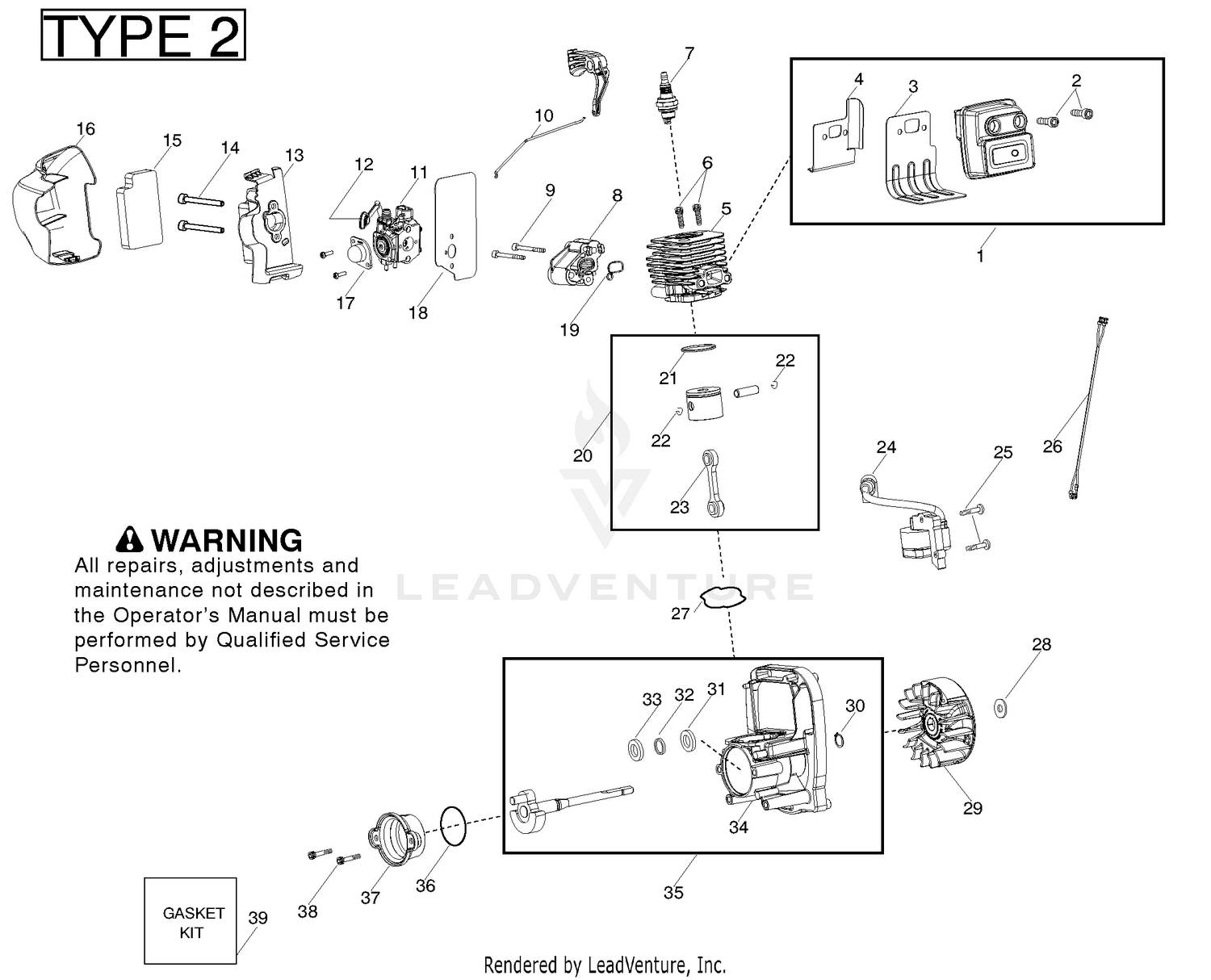

| Ref | Part Number | Description |
|---|
| 2 |
106-1025 |
PLUG-HYD Price: $9.96 |
| 2 |
530058982 |
Bolt Price: $1.99 |
| 3 |
106-1026 |
PLUG-HYD Price: $11.75 |
| 3 |
545081832 |
Gasket-Muffler (gasket kit) Price: $11.99 |
| 4 |
107-7516 |
SOLENOID VALVE ASM Price: $161.14 |
| 4 |
545098801 |
Shield - Muffler Heat Price: $5.99 |
| 5 |
107-7517 |
VALVE-SOLENOID Price: $218.46 |
| 5 |
545115301 |
Cylinder Price: $27.99 |
| 6 |
353-551 |
PLUG-HH Price: $18.48 |
| 6 |
530015953 |
Bolt Price: $1.99 |
| 7 |
110-8904 |
ORIFICE-CONTROL, FLOW (0.028) Price: $49.14 |
| 7 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 8 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 8 |
545084901 |
Adapter - Carb. Price: $9.99 |
| 9 |
105-9333 |
COIL-12VDC Price: $174.33 |
| 9 |
530016441 |
Screw Price: $1.99 |
| 10 |
147-3090 |
VALVE-SOLENOID This part replaces 110-8898. Price: $217.82 |
| 10 |
545115501 |
Linkage - Throttle Price: $2.99 |
| 12 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 12 |
545135905 |
Lever- Choke (Yellow) Price: $6.99 |
| 13 |
353-988 |
PLUG-HEX Price: $10.61 |
| 13 |
545163401 |
Base - Airbox Price: $1.07 |
| 14 |
530016429 |
Screw Price: $1.99 |
| 15 |
545146501 |
Filter Price: $3.99 |
| 16 |
545163501 |
Cover - Air Box Filter Price: $8.99 |
| 17 |
530035497 |
Bulb - Purge (walbro 188-16) Price: $4.99 |
| 18 |
545081832 |
Gasket (Carb / Adapter) (gasket kit) Price: $11.99 |
| 19 |
545081832 |
O-Ring (Adapter / Cylinder) (gasket kit) Price: $11.99 |
| 21 |
545154009 |
PISTON RING This part replaces 530012472. Price: $1.99 |
| 22 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 23 |
545156002 |
KIT PISTON CONN ROD FORGED This part replaces 545081865. Price: $14.99 |
| 24 |
545081826 |
Kit - Ignition Module This part replaces 545158001. Price: $32.99 |
| 25 |
530016357 |
Screw Price: $1.99 |
| 26 |
545127601 |
Assy - Wire Harness Price: $5.99 |
| 27 |
545081832 |
O-Ring (Cyl/Crankcase) (gasket kit) Price: $11.99 |
| 28 |
530015828 |
Washer Price: $1.99 |
| 29 |
545221701 |
FLYWHEEL ASSY This part replaces 545197301. Price: $8.99 |
| 30 |
530015941 |
Retainer - Crankshaft Price: $1.99 |
| 31 |
530055728 |
Bearing - Outer Price: $6.99 |
| 32 |
530019264 |
Seal Price: $2.99 |
| 33 |
530032125 |
Bearing - Inner Price: $11.99 |
| 36 |
545081832 |
O-Ring (Rear Plug) (gasket kit) Price: $11.99 |
| 38 |
530016386 |
Screw Price: $5.99 |
