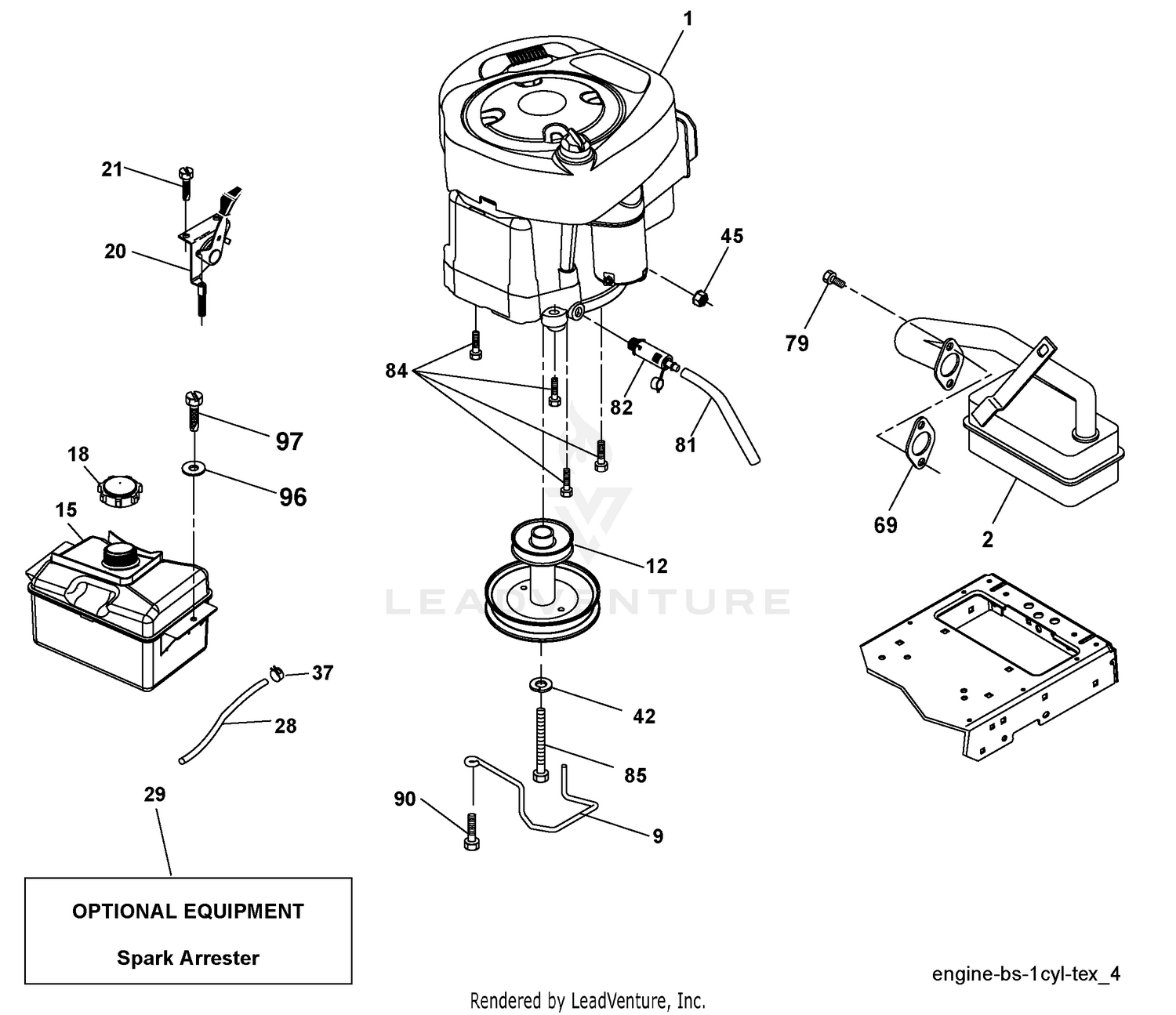

| Ref | Part Number | Description |
|---|
| 1 |
104-0000-03 |
PULLEY Price: $400.11 |
| 2 |
137352 |
Muffler Price: Call Us |
| 2 |
99-6937 |
FAN Price: $304.08 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 9 |
104-0017 |
HUB This part replaces 104-0017-03. Price: $185.06 |
| 9 |
194319 |
Keeper Belt Engine Price: Call Us |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 11 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 12 |
401985 |
Pulley Engine Price: Call Us |
| 13 |
104-1487 |
BOLT-CARR Price: $3.93 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
104-1440-03 |
SUPPORT-FAN Price: $395.73 |
| 15 |
407545 |
Tank Fuel 1.50 Price: Call Us |
| 16 |
104-0006-03 |
LEVER-FAN, IDLER Price: $61.11 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
197725 |
Cap Asm Price: Call Us |
| 18 |
98-3921 |
BELT Price: $16.95 |
| 19 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 20 |
176636X421 |
Control Throttle/Choke Price: Call Us |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
104-1447-03 |
BRACKET-FAN, SUPPORT Price: $39.88 |
| 21 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 22 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 26 |
104-1481-03 |
BRACKET-MOUNT, FAN Price: $58.30 |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
401137 |
Fuel Line Price: Call Us |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
33114-020 |
SCREW-HH Price: $0.28 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 33 |
104-0007 |
SPACER Price: $39.26 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 69 |
165291 |
Gasket Price: Call Us |
| 79 |
192334 |
Screw Socket Hd 5/16-18 x .75 Price: Call Us |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Price: Call Us |
| 90 |
17000612 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 96 |
19091416 |
Washer 9/32 x 7/8 x 16 GA Price: Call Us |
