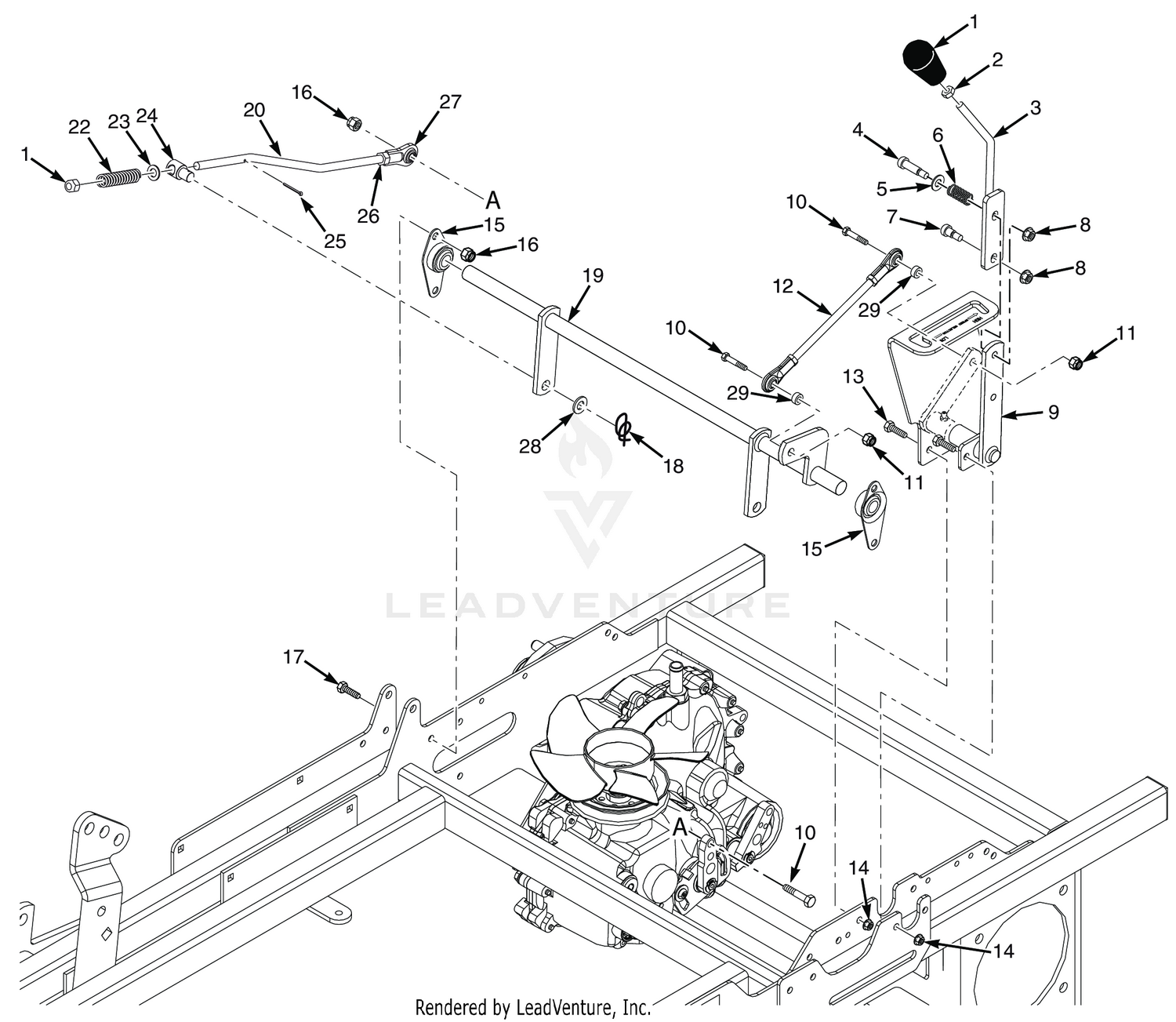

SCZ SPEED CONTROL COMPONENTS

SCZ SPEED CONTROL COMPONENTS

Parts (33)

RefPart NumberDescription
1 484093 Knob, Soft Touch Price: Call Us
2 04020-12 Nut, Jam 3/8-16 Price: Call Us
3 452222 LEVER WLMT, SPD CONTROL Price: Call Us
4 04009-11 Bolt, Shoulder 3/8 x 1" Price: Call Us
5 04040-05 Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us
6 483601 Spring, Speed Control Slide Price: Call Us
7 04009-14 Bolt, Shoulder 3/8 x .375" Price: Call Us
8 04019-03 Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us
9 452409 Control Weldment, Speed Range Adjust Price: Call Us
9 48114-04 GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us
10 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us
11 04021-09 HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us
12 04020-25 Nut, 3/8-24 UNF R.H. Thread Price: Call Us
12 04020-26 Nut, 3/8-24 UNF-2B LH Thread Price: Call Us
12 483339 Rod End, 3/8-24 UNF RH Price: Call Us
12 483340 Rod End, 3/8-24 UNF LH Price: Call Us
12 484187 Linkage Assembly, Upper Speed Control Price: Call Us
13 04001-09 Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us
14 04117-01 Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us
15 484149 Bearing, Self Align Price: Call Us
16 04117-01 Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us
17 04001-08 BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us
18 04069-02 Pin, Rue Cotter 1/2" Dia. Price: Call Us
19 452138 Speed Control Bellcrank Weldment Price: Call Us
20 485318 ROD, BRAKE LINKAGE Price: Call Us
21 04021-18 Nut, Elastic Stop 3/8-16, grade 8 black Price: Call Us
22 484175 Spring, Brake Price: Call Us
23 04042-04 Flatwasher, 3/8-.406 x .734 x .063 Price: Call Us
24 485317 BUSHING, PIVOT SLIDE Price: Call Us
25 04061-01 COTTER PIN, 3/32 X 1" Price: Call Us
26 04020-14 HEX NUT, 3/8-24 R.H. THREAD Price: Call Us
27 484177 Rod End, 3/8-24 Price: Call Us
28 04043-04 Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us
