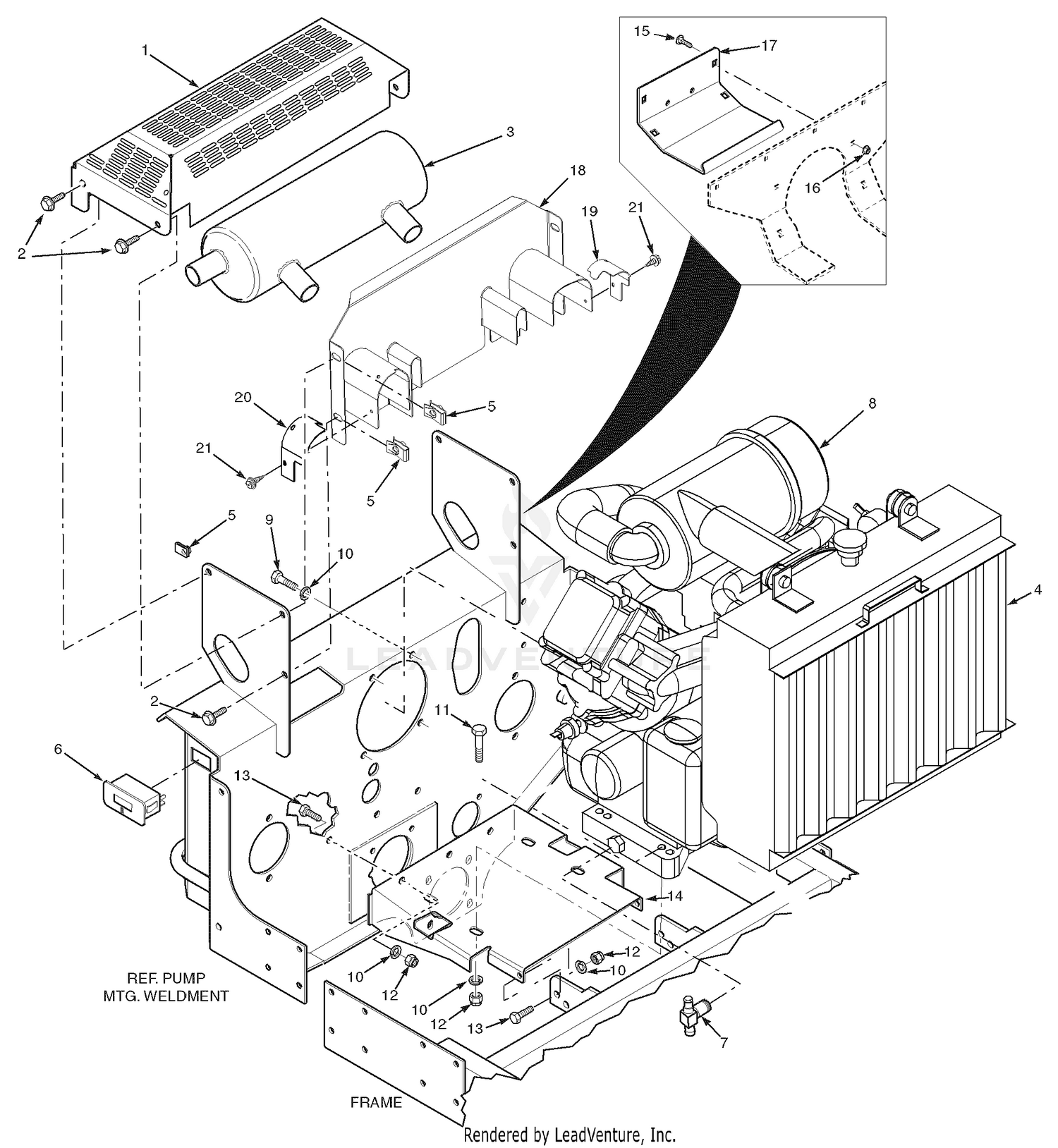

| Ref | Part Number | Description |
|---|
| 2 |
04017-05 |
Screw, Hex Serrated Flange 1/4-20 x 3/4" Price: Call Us |
| 3 |
462170 |
MUFFLER W/ SPARK ARRESTOR This part replaces 482860. Price: Call Us |
| 5 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 6 |
484565 |
Hourmeter, Inductive This part replaces 483355. Price: Call Us |
| 9 |
04002-18 |
Bolt, M10-1.50 x 25 Grade 8.8 Price: Call Us |
| 10 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 11 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 12 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 13 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 14 |
451454 |
Plate, Engine Mounting Price: Call Us |
| 15 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 16 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 17 |
424691 |
Rear Cover Price: Call Us |
| 18 |
451949 |
Heatshield Weldment, Muffler Price: Call Us |
| 19 |
425029 |
HEATSHIELD, BRACKET COVER LH This part replaces 424805. Price: Call Us |
| 20 |
424804 |
Heatshield Ext., RH Price: Call Us |
