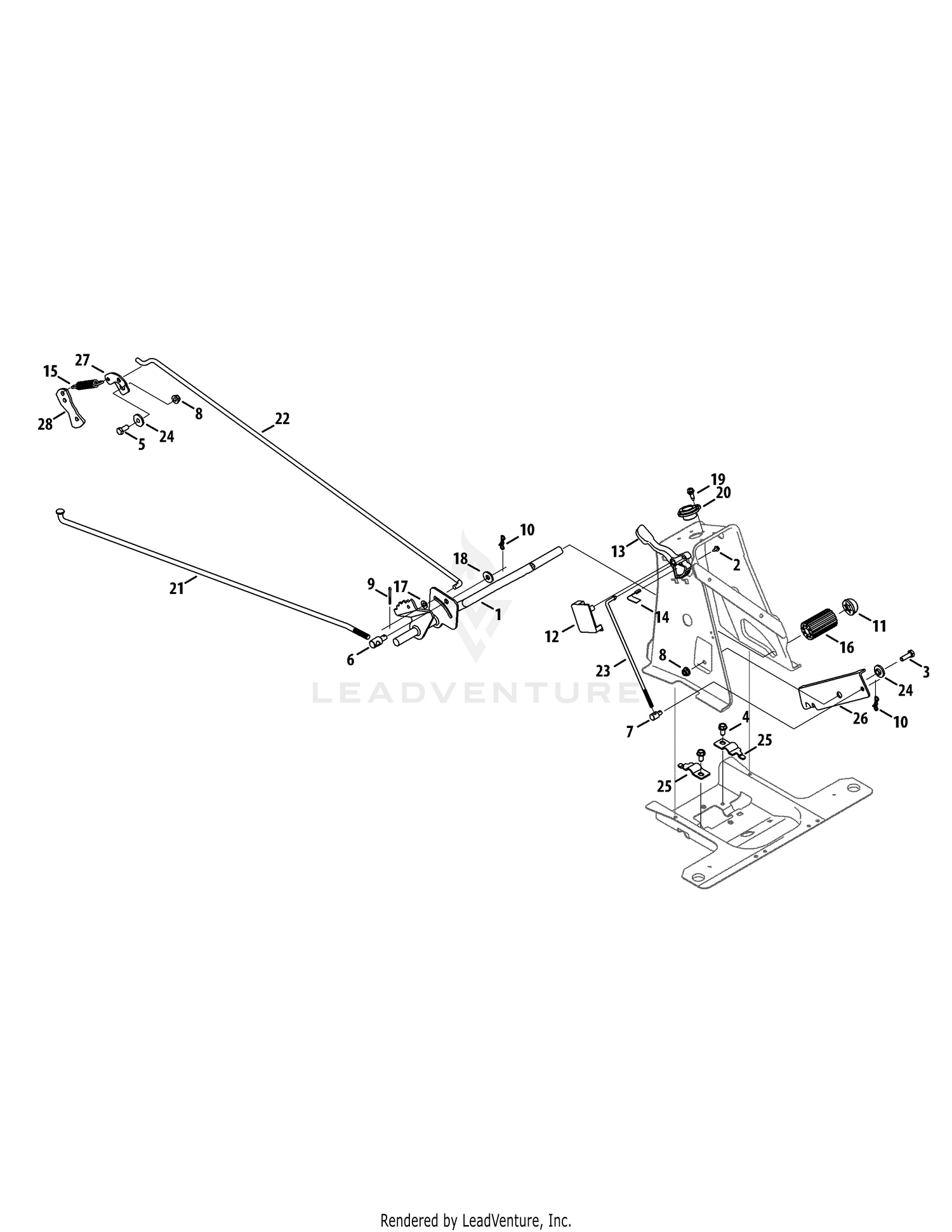

| Ref | Part Number | Description |
|---|
| 1 |
683-04699-0637 |
BRAKE PEDAL ASSEMBLY (POWDER BLACK) Not Available Price: |
| 2 |
910-0224 |
Screw, #10-16 X 0.500 Price: $3.19 |
| 3 |
710-0376 |
Hex Head Scerw, 5/16-18 X 1.00 Price: $3.66 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
911-04075A |
Ferrule 3/8-24 X .375 Dia. Price: $9.87 |
| 7 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 8 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 9 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 10 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 11 |
726-0214 |
Push Cap, 5/8 Price: $9.11 |
| 14 |
732-04937 |
Shift Spring Price: $3.46 |
| 15 |
732-0716D |
Extension Spring, .59 OD X 4.00 LG Price: $11.49 |
| 16 |
735-04279 |
Foot Pad, 2.5" LG. Price: $7.71 |
| 17 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 18 |
736-3072 |
Flat Washer, .380X.930X.110 Price: $4.11 |
| 19 |
738-04184A |
Shoulder Screw, .368 X.113, 1/4-20 Price: $5.99 |
| 20 |
741-0356A |
Steering Col. Bearing, .880 ID X 1.36 Price: $6.19 |
| 21 |
747-05506 |
Variable Speed Control Rod Price: $19.33 |
| 22 |
747-05508 |
TRANSMISSION BRAKE ROD Not Available Price: |
| 23 |
747-05616 |
SPEED SELECTOR CONTROL ROD Not Available Price: |
| 24 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 25 |
783-05940 |
Pedal Strap Support Bracket, 5/8 Price: $6.17 |
| 26 |
753-08452A |
SERVICE KIT (SPEED LATCH) This part replaces 783-07050-0637. Price: $20.03 |
| 27 |
783-07287A |
BRAKE CAM BRACKET Not Available This part replaces 783-07287. Price: |
