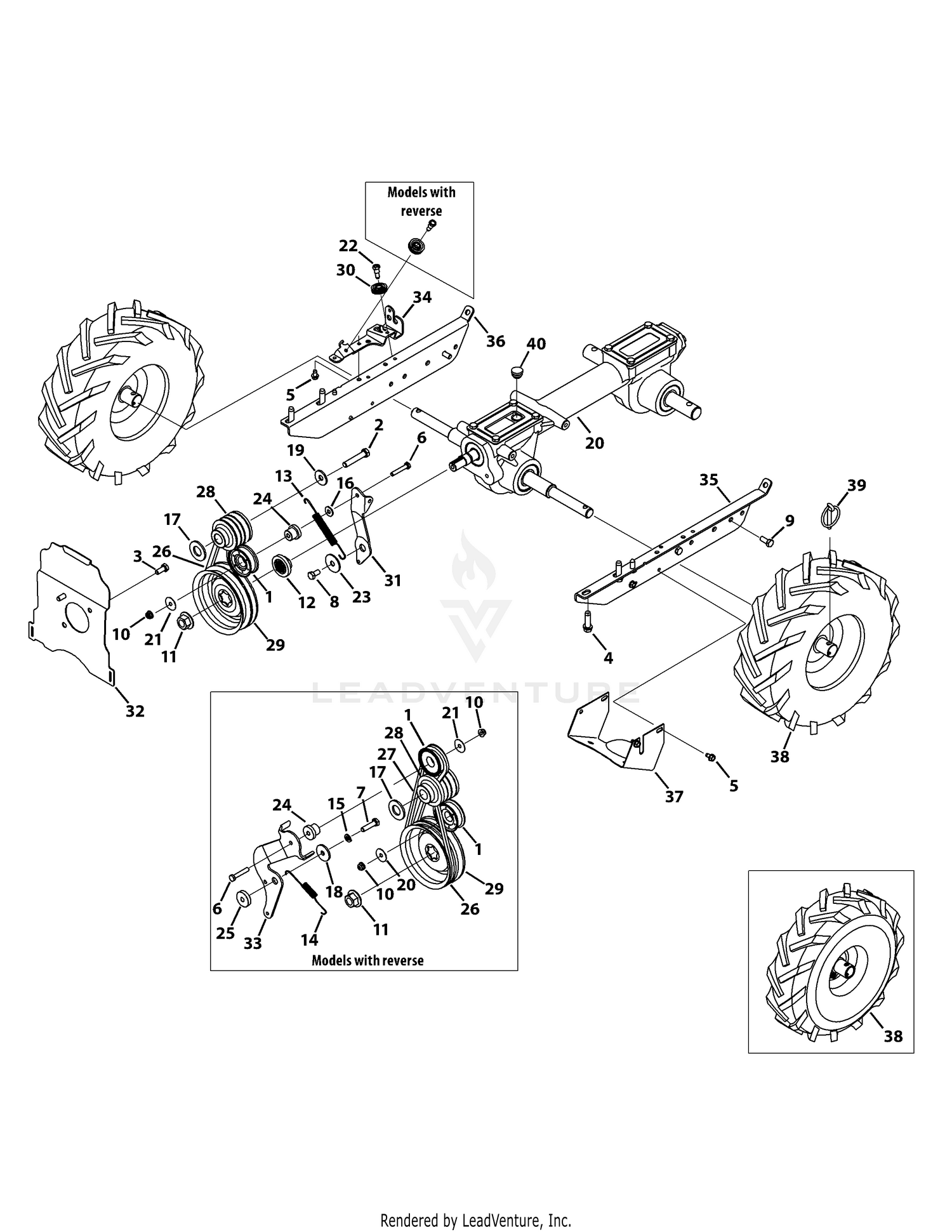

| Ref | Part Number | Description |
|---|
| 1 |
684-04168 |
Idler Pulley Assembly, 1.917 OD Price: $34.09 |
| 2 |
710-0151 |
Hex Head Screw, 3/8-24 x 2.00 Price: $6.55 |
| 3 |
710-0170 |
Hex Head Screw, 5/16-24 x .625 Price: $5.72 |
| 4 |
710-0502A |
Screw, 3/8-16 x 1.250 Price: $5.71 |
| 5 |
710-0599 |
Screw, 1/4-20 x 0.500 Price: $3.86 |
| 6 |
710-0606 |
Hex Head Screw, 1/4-20 x 1.50 Price: $4.67 |
| 7 |
710-0672 |
Hex Head Screw, 5/16-24 x 1.25 Price: $3.85 |
| 8 |
710-1880 |
Hex Head Screw, 5/16-18 x .75, Patch Price: $4.02 |
| 9 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 10 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 11 |
712-0700 |
Flange Nut, 9/16-18 Price: $10.12 |
| 12 |
718-04407 |
Pulley Hub, 5/8 SPLINE Price: $11.11 |
| 13 |
732-04085 |
Extension Spring, .480 OD x 5.00 LG Price: $12.40 |
| 14 |
732-04276A |
Extension Spring, LT5 PTO Price: $8.55 |
| 15 |
936-0119 |
Washer, Lock, 5/16 Price: $4.29 |
| 16 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 17 |
736-0315 |
Washer, Flat, .760 x 1.50 x .120 Price: $5.94 |
| 18 |
736-0343 |
Washer, Flat, .330 x 1.25 x .120 Price: $3.90 |
| 19 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 20 |
753-06042A |
Transmission Assembly This part replaces 753-06042. Price: $874.03 |
| 20 |
918-04934 |
TRANSMISSION ASSEMBLY This part replaces 618-04816. Price: $834.32 |
| 21 |
736-3092 |
Washer, Flat, .265 x 1.0 x .030 Price: $3.68 |
| 22 |
738-0924A |
Screw, Shoulder, 1/4-28 x .340 x .335 Price: $5.94 |
| 23 |
748-04087A |
Forward Idler Pivot Spacer Price: $5.66 |
| 24 |
750-04571 |
Spacer, Shoulder, .260 x .785 x .538 Price: $6.01 |
| 25 |
750-04907 |
Reverse Idler Pivot Spacer Price: $5.32 |
| 26 |
954-04090 |
V Belt, 4L x 25375 LG This part replaces 1916657. Price: $18.60 |
| 27 |
954-04091 |
V Belt, 3L x 29125 LG This part replaces 1916658. Price: $17.63 |
| 28 |
756-04198A |
Engine Pulley, 3L & 4L Price: $49.05 |
| 29 |
756-04355 |
Transmission Pulley Price: $48.52 |
| 30 |
756-0625 |
Cable Roller Price: $8.52 |
| 31 |
786-04312 |
Forward Idler Bracket Price: $11.96 |
| 32 |
786-04343-0638 |
Cover Mounting Plate Price: $17.41 |
| 33 |
786-04346 |
Reverse Idler Bracket Price: $9.16 |
| 34 |
786-04357A-0638 |
Pulley Mounting Bracket This part replaces 786-04357-0638. Price: $9.67 |
| 35 |
786-04367-0638 |
FRAME-MOUNT (LH) (MTD RED) Not Available Price: |
| 36 |
786-04368-0638 |
FRAME-MOUNT (RH) (MTD RED) Not Available Price: |
| 37 |
786-04371-0638 |
Pulley Shield Price: $17.73 |
| 38 |
634P06425 |
WHEEL ASSEMBLY (13 x 5 x 6) (SBD GRAY) This part replaces 934-04232. Price: $148.42 |
| 39 |
714-0143A |
Klik Pin, .25 DIA x 1.56 Price: $5.67 |
