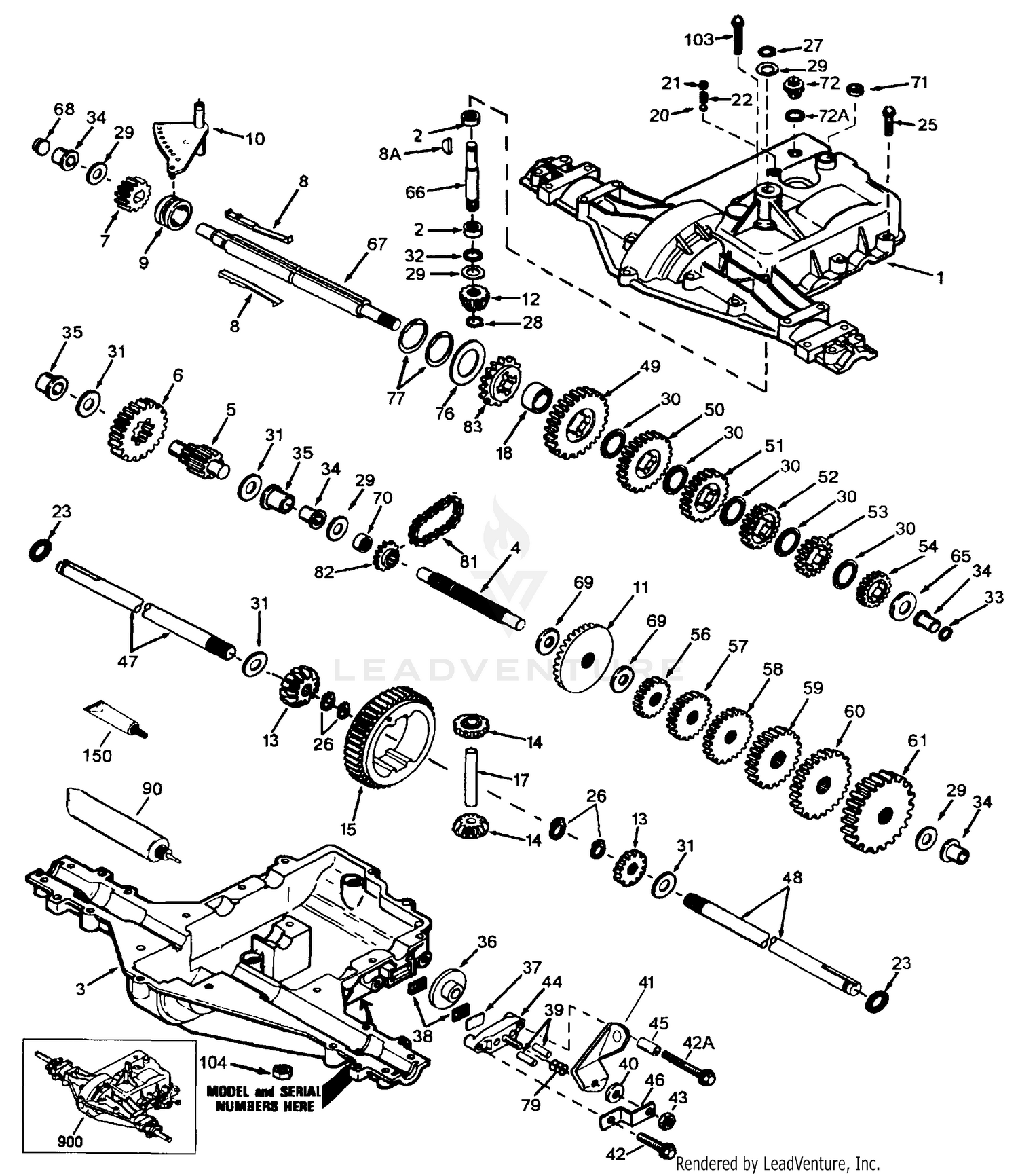

| Ref | Part Number | Description |
|---|
| 1 |
772108A |
Cover, Transaxle Price: Call Us |
| 2 |
780086 |
Bearing, Needle Price: Call Us |
| 3 |
770102A |
Case, Transaxle Price: Call Us |
| 4 |
776260 |
Shaft, Counter Price: Call Us |
| 5 |
776219B |
Shaft and Pinion Assembly, Output Price: Call Us |
| 6 |
778139 |
Gear, Output Price: Call Us |
| 7 |
778136 |
Gear, Spur, 15 Teeth Price: Call Us |
| 8 |
792136A |
Key, Shift Price: Call Us |
| 8A |
792047 |
Key, Woodruff Price: Call Us |
| 9 |
784352 |
Collar, Shifter Price: Call Us |
| 10 |
784355 |
Rod and Fork Assembly, Shift Price: Call Us |
| 11 |
778229 |
Gear, Bevel, 42 Teeth Price: Call Us |
| 12 |
778113A |
Bevel Pinion, Input Price: Call Us |
| 13 |
778221 |
Gear, Bevel Price: Call Us |
| 14 |
778068 |
Gear, Bevel Pinion Price: Call Us |
| 15 |
778260 |
Gear, Ring Price: Call Us |
| 17 |
786139 |
Pin, Drive Price: Call Us |
| 18 |
786102 |
Spacer, Neutral Price: Call Us |
| 20 |
792077 |
Ball, Steel 5/16" diameter Price: Call Us |
| 21 |
792078 |
Set Screw 3/8-16 x 3/8 Price: Call Us |
| 22 |
792079 |
Spring Price: Call Us |
| 23 |
788061 |
Ring, Seal Price: Call Us |
| 25 |
792073 |
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 Price: Call Us |
| 26 |
792125 |
Ring, Retainer (4 Required, Package of 2) Price: Call Us |
| 27 |
792035 |
Ring, Retainer Price: Call Us |
| 28 |
788040 |
Ring, Retainer Price: Call Us |
| 29 |
780072 |
Washer, Thrust Price: Call Us |
| 30 |
780108 |
Washer, Thrust Price: Call Us |
| 31 |
780001 |
Washer Price: Call Us |
| 33 |
788095 |
Seal, Square Cut Price: Call Us |
| 34 |
780105A |
Bushing, Flanged Price: Call Us |
| 35 |
780118A |
Bushing, Flanged Price: Call Us |
| 36 |
790003 |
Disk, Brake Price: Call Us |
| 37 |
790007 |
Plate, Brake Pad Price: Call Us |
| 38 |
799021 |
Pad, Brake Price: Call Us |
| 39 |
786026 |
Pin, Dowel Price: Call Us |
| 40 |
792076A |
Washer, Flat Price: Call Us |
| 41 |
790079 |
Lever, Brake Price: Call Us |
| 42 |
792073 |
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 Price: Call Us |
| 42A |
792085A |
Screw 1/4-20 x 2-1/4 Price: Call Us |
| 43 |
792075 |
Locknut 5/16-24 Price: Call Us |
| 44 |
790025 |
Holder, Brake Pad Price: Call Us |
| 45 |
786066 |
Spacer Price: Call Us |
| 46 |
786086 |
Bracket, Brake Lever Price: Call Us |
| 47 |
774690 |
Axle 11-5/16" long Price: Call Us |
| 48 |
774691 |
Axle 16-1/2" long Price: Call Us |
| 49 |
778215 |
Gear, Spur, 37 Teeth, Steel (1 ) Price: Call Us |
| 50 |
778125 |
Gear, Spur, 35 Teeth (2") Price: Call Us |
| 51 |
778124A |
Gear, Spur, 30 Teeth (3-) Price: Call Us |
| 52 |
778123A |
Gear, Spur, 25 Teeth (4-) Price: Call Us |
| 53 |
778122A |
Gear, Spur, 22 Teeth (5-) Price: Call Us |
| 54 |
778273 |
Gear, Spur, 19 Teeth, Steel (6 ) Price: Call Us |
| 56 |
778230 |
Gear, Spur, 12 Teeth (1 ) Price: Call Us |
| 57 |
778151 |
Gear, Spur, 15 Teeth (2") Price: Call Us |
| 58 |
778126A |
Gear, Spur, 20 Teeth (3-) Price: Call Us |
| 59 |
778127A |
Gear, Spur, 25 Teeth (4 ) Price: Call Us |
| 60 |
778128A |
Gear, Spur, 28 Teeth (5-) Price: Call Us |
| 61 |
778163 |
Gear, Spur, 31 Teeth (6 ) Price: Call Us |
| 65 |
780109 |
Washer, Thrust Price: Call Us |
| 66 |
776135 |
Shaft, Input Price: Call Us |
| 67 |
776315A |
Shaft, Brake, 4 Keyed Price: Call Us |
| 68 |
786116A |
Plug Price: Call Us |
| 69 |
780051 |
Washer, Thrust Price: Call Us |
| 70 |
786118 |
Spacer Price: Call Us |
| 71 |
788069 |
Seal, Square Cut Price: Call Us |
| 72 |
792165 |
Plug, Threaded 9/16-18 Price: Call Us |
| 76 |
780090 |
Washer, Thrust Price: Call Us |
| 77 |
788078A |
Ring, Retaining, Inverted (Package of 2) Price: Call Us |
| 79 |
792144 |
Spring, Brake Price: Call Us |
| 81 |
786081 |
Chain, Roller (Number 41 Chain, 24 Links) Price: Call Us |
| 82 |
786082 |
Sprocket, 9 Teeth (Reverse) Price: Call Us |
| 83 |
786123 |
Sprocket, 18 Teeth (Reverse) Price: Call Us |
| 90 |
788067B |
Grease, Bentonite, 32 Ounce Bottle Price: Call Us |
| 103 |
792166 |
Screw 1/4-20 x 2 Price: Call Us |
| 104 |
792167 |
Locknut 1/4-20 Price: Call Us |
| 150 |
510334 |
Gasket Eliminator (Loctite #515) Price: Call Us |
