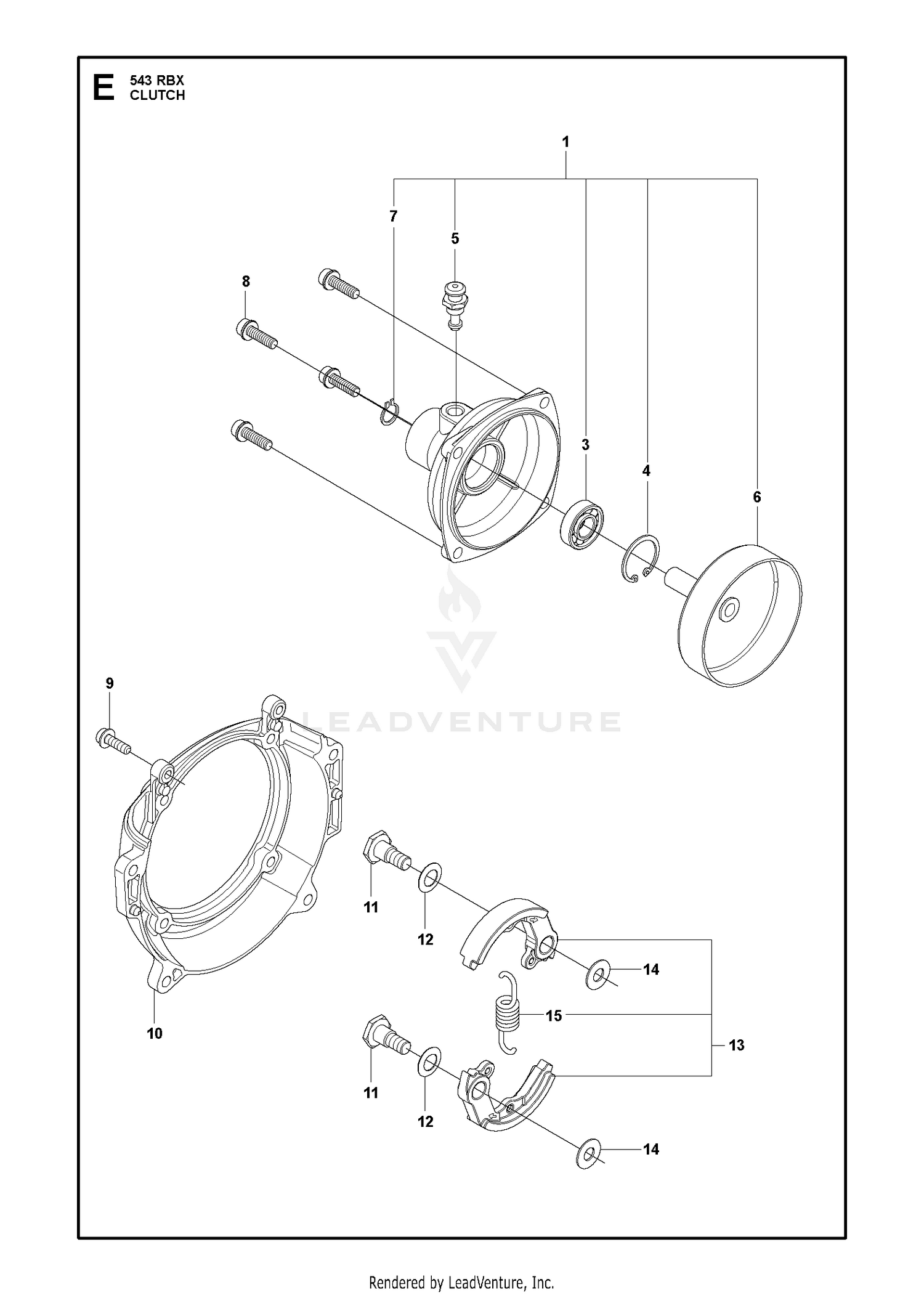

CLUTCH
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 25-8640 | SCREW-HH Price: $1.09 |
| 1 | 576203601 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 98-9311 | SWIVEL-THROTTLE Price: $28.41 |
| 3 | 529269801 | BEARING Price: $5.99 |
| 3 | 65-2720 | RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 4 | 105-1129-01 | PIVOT-SELECTOR, SPEED Price: $30.96 |
| 4 | 506609901 | RING Price: $2.99 |
| 5 | 3296-20 | NUT-LOCK, NI Price: $0.40 |
| 5 | 521602301 | Price: Call Us |
| 6 | 115-4712 | SPRING-EXTENSION Price: $13.02 |
| 6 | 591443601 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 115-2819 | SCREW-SET, HSH Price: $1.63 |
| 7 | 516124101 | RING Price: $3.99 |
| 8 | 105-1109 | CLAMP-TRUNNION Price: $6.11 |
| 8 | 523019001 | BOLT Price: $3.99 |
| 9 | 321-6 | SCREW-HH Price: $0.25 |
| 9 | 515391301 | BOLT Price: $2.99 |
| 10 | 105-1125-01 | LEVER-PUMP Price: $94.77 |
| 10 | 592874903 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 3210-3 | SCREW-HH Price: $5.29 |
| 12 | 3220-2 | NUT-JAM Price: $0.50 |
| 12 | 505298101 | WASHER Price: $2.99 |
| 13 | 597557301 | NEEDS DESCRIPTION Price: Call Us |
| 13 | 92-3133 | SPACER-LEVER, TRACTION Price: $3.69 |
| 14 | 3296-3 | NUT-LOCK Price: $0.54 |
| 14 | 505298001 | WASHER Price: $2.99 |
| 15 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 15 | 597578201 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 115-2809-01 | BRACKET-CONTROL Price: $102.91 |
| 18 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 19 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 20 | 251-259 | BEARING-BALL Price: $13.67 |
| 21 | 322-7 | SCREW-HH Price: $0.89 |
| 22 | 323-4 | SCREW-HH Price: $1.02 |
| 23 | 2411-34 | JOINT-BALL Price: $29.99 |
| 24 | 3220-1 | NUT-JAM Price: $0.99 |
| 25 | 322-9 | SCREW-HH Price: $3.09 |
| 26 | 76-8640 | STUD-TRACTION Price: $23.60 |
| 27 | 104-8331 | END-ROD, SPHERICAL Price: $46.75 |
| 28 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 29 | 256-113 | BUSHING-FLANGE Price: $5.58 |
| 30 | 105-3249 | DAMPER Price: $176.72 |
| 31 | 105-1060-01 | LEVER-NEUTRAL Price: $71.14 |
| 32 | 302-59 | PLUG-THREADED Price: $5.86 |
| 33 | 32105-13 | SCREW-HWH Price: $1.59 |
| 34 | 81-1690 | CLAMP-CABLE Price: $2.24 |
| 35 | 107-7578-01 | SHIELD-HYDROSTAT Price: $45.80 |
| 36 | 108-6836 | STRAP-TRACTION Price: $8.41 |
