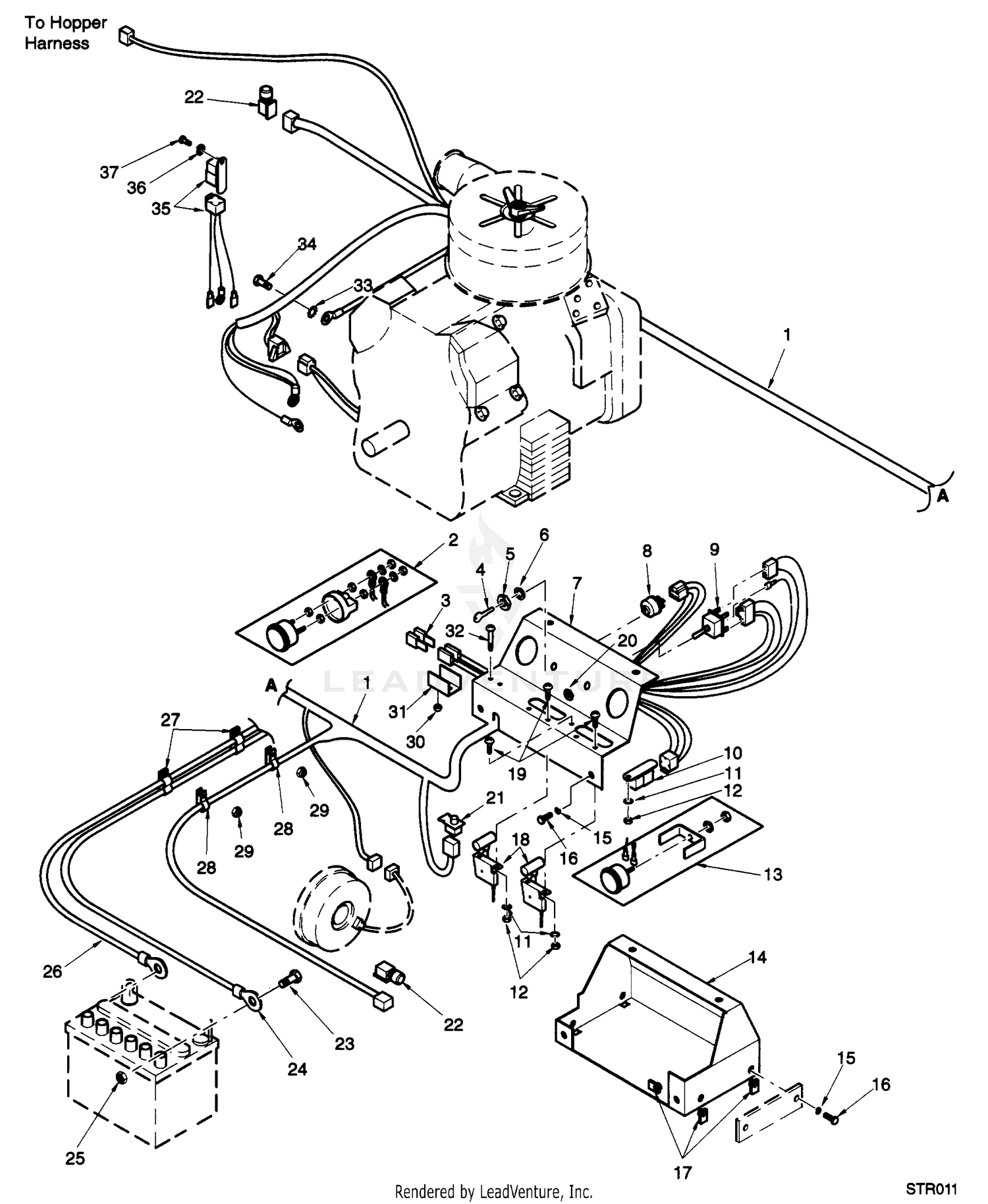

| Ref | Part Number | Description |
|---|
| 1 |
481422 |
Harness, Engine This part replaces 481238. Price: Call Us |
| 2 |
48023 |
HOURMETER Price: Call Us |
| 3 |
48298 |
FUSE, 20 AMP Price: Call Us |
| 4 |
48017-02 |
KEY & RING ASSEMBLY Price: Call Us |
| 5 |
48017-04 |
NUT, HEX, 5/8-32 Price: Call Us |
| 6 |
48017-03 |
LOCKWASHER, 5/8 INTERNAL Price: Call Us |
| 7 |
46883 |
INSTRUMENT PANEL, TOP WITH DECAL Price: Call Us |
| 8 |
48798 |
KEYSWITCH Price: Call Us |
| 9 |
48787 |
SWITCH, MOWER ENGAGEMENT ELECTRIC CLUTCH Price: Call Us |
| 10 |
48788 |
RELAY Price: Call Us |
| 11 |
04031-01 |
LOCKWASHER, #10 EXTERNAL TOOTH Price: Call Us |
| 12 |
04021-01 |
HEX LOCKNUT, ELASTIC STOP, #10-32 Price: Call Us |
| 13 |
481755 |
Ammeter This part replaces 48022. Price: Call Us |
| 14 |
45798 |
BASE, INSTRUMENT PANEL Price: Call Us |
| 15 |
04030-02 |
LOCKWASHER, 1/4 Price: Call Us |
| 16 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 Price: Call Us |
| 17 |
04110-01 |
U-NUT Price: Call Us |
| 18 |
481363 |
THROTTLE AND CHOKE CONTROLS Price: Call Us |
| 19 |
04010-01 |
SCREW, WASHER ROUND HEAD, #10-32 X 1/2 Price: Call Us |
| 20 |
48787-01 |
NUT, HEX, 1/2-27 Price: Call Us |
| 21 |
48717 |
SWITCH, INTERLOCK - SEAT Price: Call Us |
| 22 |
481474 |
Switch, Parking Brake This part replaces 48522. Price: Call Us |
| 23 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 24 |
48029-16 |
CABLE, BATTERY - RED Price: Call Us |
| 25 |
04020-02 |
NUT, HEX, 1/4-20 Price: Call Us |
| 26 |
48029-17 |
CABLE, BATTERY - BLACK Price: Call Us |
| 27 |
48030-11 |
CLAMP, DOUBLE CABLE Price: Call Us |
| 28 |
48030-10 |
CLAMP, CABLE Price: Call Us |
| 29 |
04021-10 |
HEX LOCKNUT, ELASTIC STOP, 5/16-18 Price: Call Us |
| 30 |
04021-01 |
HEX LOCKNUT, ELASTIC STOP, #10-32 Price: Call Us |
| 31 |
42413 |
BRACKET, FUSE HOLDER Price: Call Us |
| 32 |
04010-11 |
SCREW, ROUND HEAD, #10-32 X 1-1/2 Price: Call Us |
| 33 |
04031-03 |
LOCKWASHER, EXTERNAL TOOTH, 5/16 Price: Call Us |
| 34 |
04002-12 |
BOLT, HEX HEAD, M8-1.25 X 20 Price: Call Us |
| 35 |
481275 |
RELAY AND HARNESS Price: Call Us |
| 36 |
04030-02 |
LOCKWASHER, 1/4 Price: Call Us |
