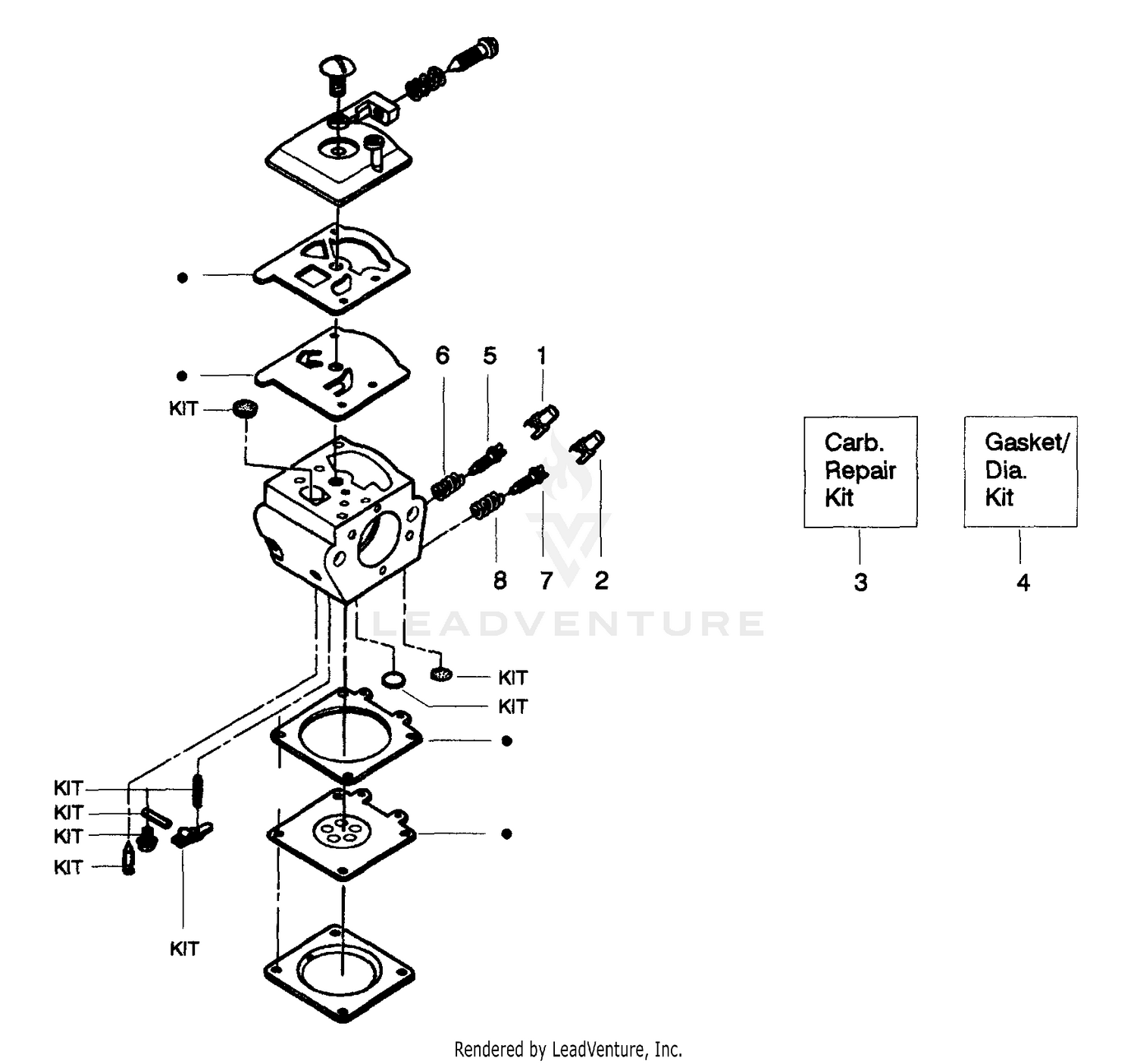

Carburetor Assembly Kit P/N 530069703

Carburetor Assembly Kit P/N 530069703

Parts (32)

RefPart NumberDescription
1 108-9083 PLATE-SIDE, RH Price: $328.36
1 530038318 Limiter Cap-High Price: $1.99
2 108-9082 PLATE-SIDE, LH Price: $328.36
2 530038317 Limiter Cap-Low Price: $1.99
3 104-3396 SCREW-HH Price: $0.75
4 99-8662 TUBE-SPRING Price: $21.55
5 3218-5 NUT-JAM Price: $0.27
5 530035383 Needle-Low Speed Price: $2.05
6 530035293 Needle Spring-Low Speed Price: $1.99
6 87-7270 WASHER-THRUST Price: $0.89
7 104-8301 NUT-HF, NI Price: $1.09
7 530035384 Needle-High Speed Price: $4.99
8 3290-357 NUT-HHF, WHIZ Price: $0.61
9 110-4079 SPRING-COMPRESSION Price: $13.57
12 110-4069 BRACKET Price: $5.57
13 115-2007 ROD-SPRING Price: $34.97
14 92-2762 PIN-HAIR Price: $1.09
15 119-4162 SCREW-CARR This part replaces 3231-25. Price: $1.73
16 119-8010-03 KICKSTAND This part replaces 110-4088-03. Price: $34.60
17 110-4058 BRACKET-CHAIN Price: $32.43
18 107-7400 PIN-LYNCH Price: $9.56
19 107-3258 FRAME Price: $331.61
20 107-2979 BOLT-SHOULDER Price: $3.94
21 3234-19 SCREW-HHF Price: $1.73
22 67-9410 WASHER Price: $2.04
23 108-4279 SPACER-FRAME Price: $8.34
24 108-4284 TUBE-SUPPORT Price: $60.29
25 110-9713 CARRIER FRAME ASM Price: $642.24
26 3256-24 WASHER-FLAT Price: $0.28
27 323-7 SCREW-HH Price: $0.65
28 114-3972 CHAIN Price: $8.62
29 112-6564 BRACKET-CHAIN Price: $47.71
