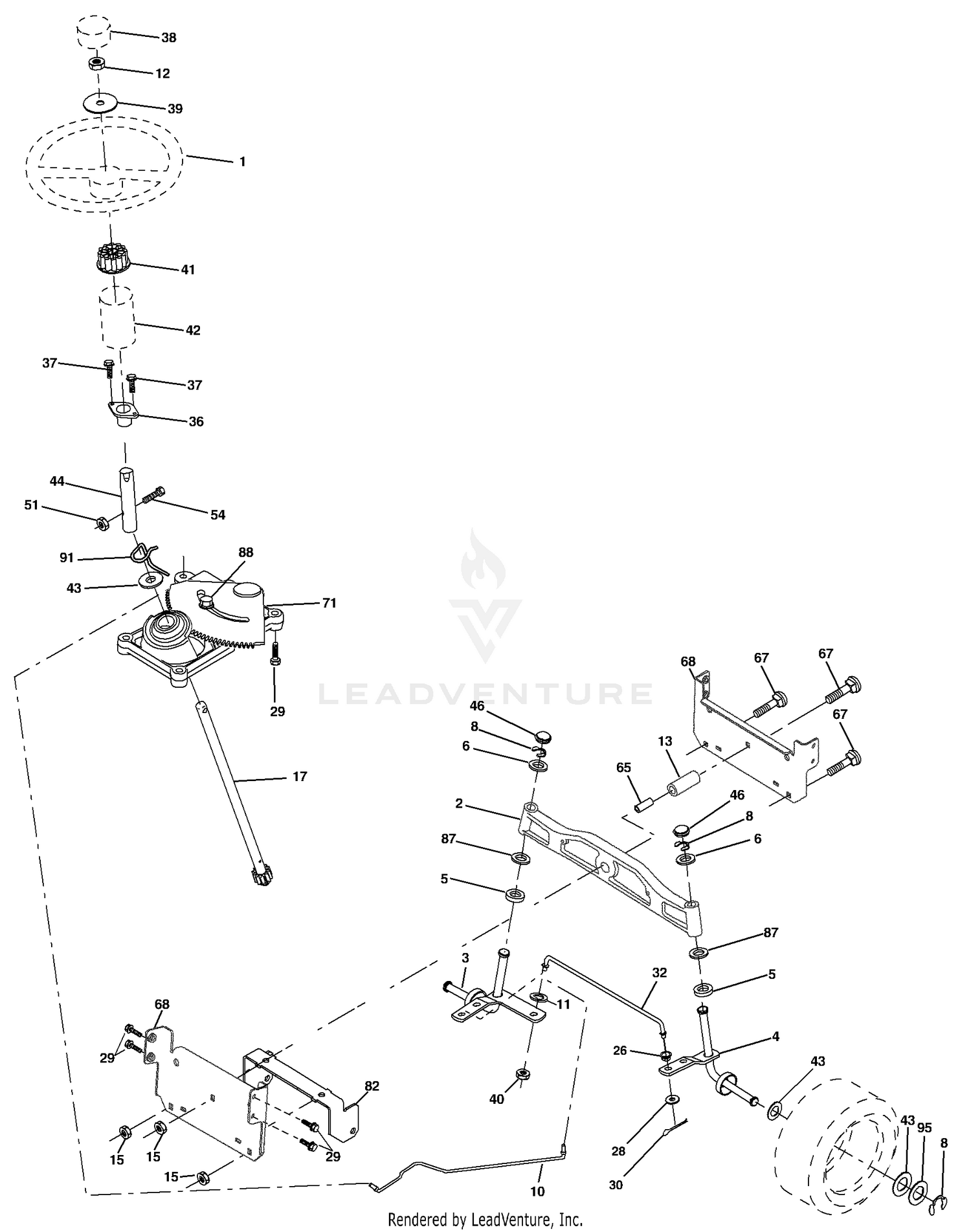

Steering Assembly

Steering Assembly

Parts (38)

RefPart NumberDescription
1 184704X428 Wheel Steering Price: Call Us
2 184706 Axle Asm Cast Iron LT Price: Call Us
3 169840 Spindle Asm LH Price: Call Us
4 169839 Spindle Asm RH Price: Call Us
5 6266H Bearing Race Thrust Harden Price: Call Us
6 121748X Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us
8 12000029 Ring Klip #t5304-75 Price: Call Us
10 175121 Link Drag Price: Call Us
11 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us
12 73940800 Nut Hex Jam Toplock 1/2-20 unf Price: Call Us
13 136518 Spacer Brg. Axle Front Price: Call Us
15 145212 Nut Hex Flange Lock Price: Call Us
17 180641 Shaft Asm. Steering Price: Call Us
26 126847X Bushing Link Drag Price: Call Us
28 19131416 Washer 13/32 x 7/8 x 16 Ga. Price: Call Us
29 17000612 Screw 3/8-16 x .75 Price: Call Us
30 76020412 Pin Cotter 1/8 x 3/4 Price: Call Us
32 130465 Rod Tie Price: Call Us
36 155099 Bushing Strg Price: Call Us
37 152927 Screw Price: Call Us
38 159946X428 Insert Cap Strg Wh Au Price: Call Us
39 19182411 Washer Price: Call Us
40 73540600 Nut Crownlock 3/8-24 Price: Call Us
41 159945 Adaptor Wheel Strg Price: Call Us
42 145054X428 Boot Steering Dash Price: Call Us
43 121749X Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us
44 180640 Extension Steering Shaft Price: Call Us
46 121232X Cap Spindle Fr Top Blk Price: Call Us
51 73540400 Nut Crownlock 1/4-28 Price: Call Us
54 71130420 Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8 Price: Call Us
65 160367 Brace Axle Price: Call Us
67 72110618 Bolt Rdhd Sq 3/8-16 unc x 2-1/4 Price: Call Us
68 169827 Axle, Brace Price: Call Us
71 175146 Steering Asm. Price: Call Us
82 169835 Bracket Susp. Chassis Front Price: Call Us
87 173966 Washer Flat .781 x 1-1/2 x 14 Price: Call Us
88 175118 Bolt Shoulder 7/16-20 unc Price: Call Us
91 175553 Clip Steering Price: Call Us
