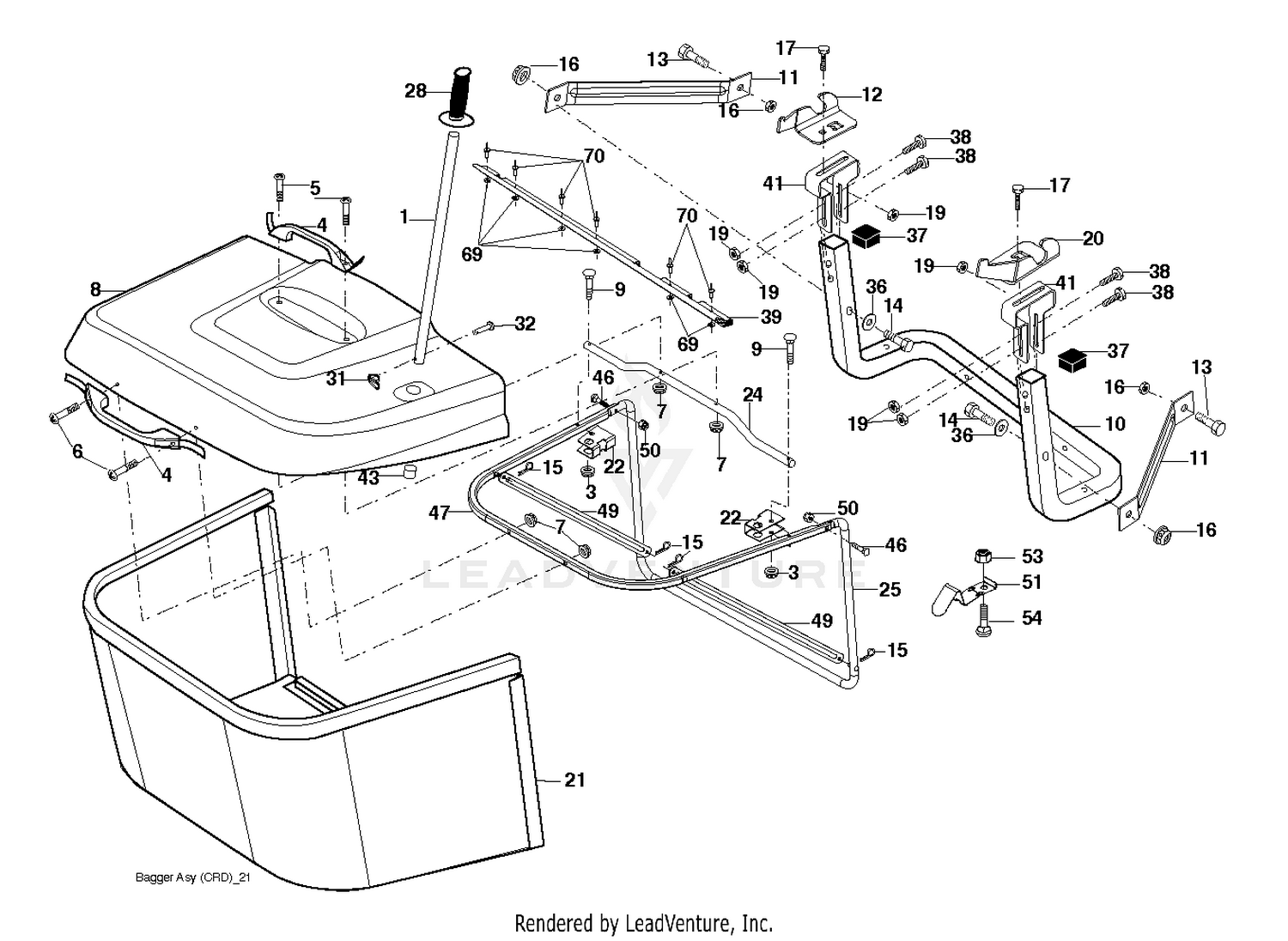

| Ref | Part Number | Description |
|---|
| 1 |
532428610 |
TUBE.HANDLE.BAGGER.CRD/SRD.BLA Price: $11.99 |
| 1 |
SGH08704 |
HEAD-TINE ADAPTER This part replaces SGH08704-03. Price: $281.09 |
| 3 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $4.99 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $5.99 |
| 6 |
532750029 |
Pan Head Machine Screw #10-24 x 2 (AYP part number) This part replaces 874981032. Price: $3.99 |
| 7 |
873401000 |
NUT Price: $2.99 |
| 8 |
532448432 |
Price: Call Us |
| 9 |
872140418 |
BOLT Price: $6.99 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $54.99 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $7.99 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $3.99 |
| 13 |
874760612 |
BOLT Price: $1.99 |
| 14 |
874520636 |
BOLT-HEX EAK Price: $3.99 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 17 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 19 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $3.99 |
| 21 |
532406180 |
BAGGER.ASM.CRD.2007 Price: $109.99 |
| 22 |
532428236 |
BRACKET.BAGGER.SD.ELECTRIC.CRD Price: $3.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $14.99 |
| 25 |
583211601 |
TUBE.FRONT.BAGGER.CRD This part replaces 532193705. Price: $74.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $2.99 |
| 31 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 36 |
819132012 |
WASHER Price: $2.99 |
| 37 |
583576301 |
PLUG SUPPORT BAGGER CRD This part replaces 532444848. Price: $2.99 |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $3.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD Price: $27.99 |
| 41 |
532432755 |
BRACKET.BAGGER.SD.ELECTRIC.CRD Price: $6.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $3.99 |
| 46 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $3.99 |
| 47 |
583211501 |
TUBE.UPPER.BAGGER.CRD This part replaces 532193704. Price: $249.99 |
| 49 |
583208201 |
BAR.SPREADER.BAGGER.CRD This part replaces 532193305. Price: $2.99 |
| 50 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 51 |
583255601 |
LATCH.SPRING.BAGGER.CRD This part replaces 532199903. Price: $22.99 |
| 53 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 54 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $2.99 |
| 69 |
575180801 |
MEGA-FIRE ELECTR This part replaces 532435611. Price: $2.99 |
