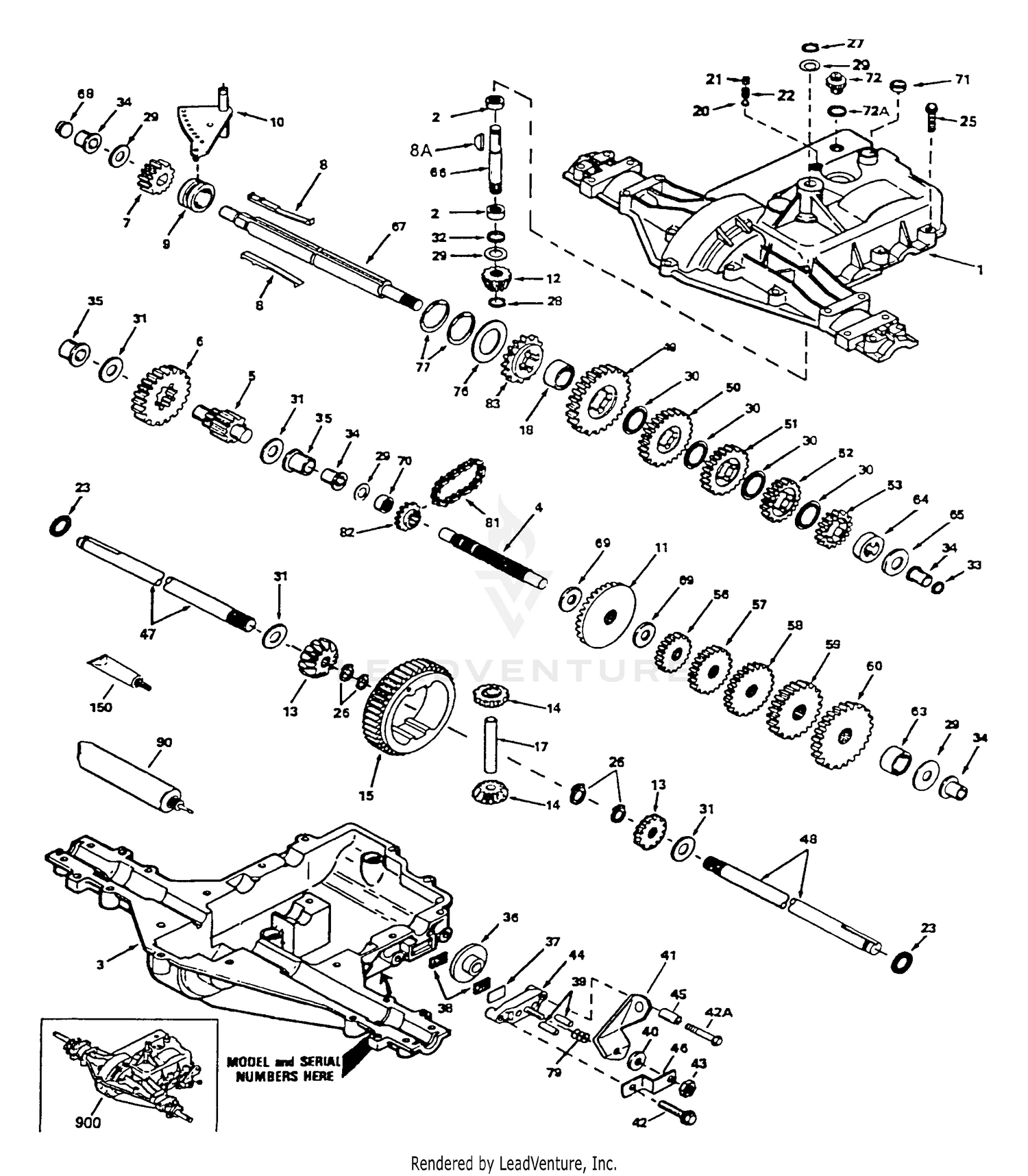

| Ref | Part Number | Description |
|---|
| 0 |
632205C |
CARBURETOR This part replaces 632204A. Price: Call Us |
| 1 |
114-5401 |
ROLLER-WIEHLE, PLASTIC Price: $248.52 |
| 1 |
632160 |
SHAFT & LEV Price: $13.61 |
| 1 |
772108A |
Cover, Transaxle (Peerless part number) Price: Call Us |
| 2 |
114-5403 |
SHAFT-ROLLER, FRONT Price: $82.00 |
| 2 |
32096 |
RET SPRING Price: $2.62 |
| 2 |
780086 |
Bearing, Needle (Peerless part number) Price: Call Us |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
770102A |
Case, Transaxle (Peerless part number) Price: Call Us |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
776260 |
Shaft, Counter (Peerless part number) Price: Call Us |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
632039 |
WASHER Price: $3.86 |
| 5 |
776219B |
Shaft and Pinion Assembly, Output (Peerless part number) Price: Call Us |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
631682 |
SHUTTER Price: $10.04 |
| 6 |
778139 |
Gear, Output (Peerless part number) Price: Call Us |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 7 |
778136 |
Gear, Spur, 15 Teeth (Peerless part number) Price: Call Us |
| 8 |
792136A |
Key, Shift (Peerless part number) Price: Call Us |
| 8A |
792047 |
Key, Woodruff (Peerless part number) Price: Call Us |
| 9 |
784352 |
Collar, Shifter (Peerless part number) Price: Call Us |
| 10 |
631683 |
SHAFT & LEV Price: $12.88 |
| 10 |
784355 |
Rod and Fork Assembly, Shift (Peerless part number) Price: Call Us |
| 11 |
778229 |
Gear, Bevel, 42 Teeth (Peerless part number) Price: Call Us |
| 12 |
778113A |
Bevel Pinion, Input (Peerless part number) Price: Call Us |
| 13 |
632040 |
WASHER Price: $3.86 |
| 13 |
778221 |
Gear, Bevel (Peerless part number) Price: Call Us |
| 14 |
631684 |
SHUTTER Price: $3.86 |
| 14 |
778068 |
Gear, Bevel Pinion (Peerless part number) Price: Call Us |
| 15 |
27113 |
SPRING Price: $2.62 |
| 15 |
778260 |
Gear, Ring (Peerless part number) Price: Call Us |
| 17 |
650399 |
SCREW Price: $1.20 |
| 17 |
786139 |
Pin, Drive (Peerless part number) Price: Call Us |
| 18 |
27114 |
SPRING Price: $2.62 |
| 18 |
786102 |
Spacer, Neutral (Peerless part number) Price: Call Us |
| 20 |
27112 |
IDLE SCREW Price: $1.26 |
| 20 |
792077 |
Ball, Steel 5/16" diameter (Peerless part number) Price: Call Us |
| 21 |
27114 |
SPRING Price: $2.62 |
| 21 |
792078 |
Set Screw 3/8-16 x 3/8 (Peerless part number) Price: Call Us |
| 22 |
792079 |
Spring (Peerless part number) Price: Call Us |
| 23 |
788061 |
Ring, Seal (Peerless part number) Price: Call Us |
| 25 |
29170 |
FLOAT BOWL Price: Call Us |
| 25 |
792073 |
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 (Peerless part number) Price: Call Us |
| 26 |
31503 |
SPRING Price: $1.23 |
| 27 |
27106 |
FLOAT SHAFT Price: $2.04 |
| 27 |
792035 |
Ring, Retainer (Peerless part number) Price: Call Us |
| 28 |
27105 |
FLOAT Price: $20.00 |
| 28 |
788040 |
Ring, Retainer (Peerless part number) Price: Call Us |
| 29 |
27109 |
GASKET Price: $1.18 |
| 29 |
780072 |
Washer, Thrust (Peerless part number) Price: Call Us |
| 30 |
631687 |
INLET NEEDLE Price: $17.46 |
| 30 |
780108 |
Washer, Thrust (Peerless part number) Price: Call Us |
| 31 |
780001 |
Washer (Peerless part number) Price: Call Us |
| 33 |
788095 |
Seal, Square Cut (Peerless part number) Price: Call Us |
| 34 |
780105A |
Bushing, Flanged (Peerless part number) Price: Call Us |
| 35 |
780118A |
Bushing, Flanged (Peerless part number) Price: Call Us |
| 36 |
632358 |
NOZZLE Price: Call Us |
| 36 |
790003 |
Disk, Brake (Peerless part number) Price: Call Us |
| 37 |
790007 |
Plate, Brake Pad (Peerless part number) Price: Call Us |
| 38 |
799021 |
Pad, Brake (Peerless part number) (AYP part number) Price: Call Us |
| 39 |
786026 |
Pin, Dowel (Peerless part number) Price: Call Us |
| 40 |
631764 |
POWER SCREW Price: $22.59 |
| 40 |
792076A |
Washer, Flat (Peerless part number) Price: Call Us |
| 41 |
27544 |
O RING Price: $1.26 |
| 41 |
790079 |
Lever, Brake (Peerless part number) Price: Call Us |
| 42 |
792073 |
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 (Peerless part number) Price: Call Us |
| 42A |
792085A |
Screw 1/4-20 x 2-1/4 (Peerless part number) Price: Call Us |
| 43 |
630786 |
SPRING Price: $1.25 |
| 43 |
792075 |
Locknut 5/16-24 (Peerless part number) Price: Call Us |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 44 |
790025 |
Holder, Brake Pad (Peerless part number) Price: Call Us |
| 45 |
786066 |
Spacer (Peerless part number) Price: Call Us |
| 46 |
786086 |
Bracket, Brake Lever (Peerless part number) Price: Call Us |
| 47 |
774690 |
Axle 11-5/16" long (Peerless part number) Price: Call Us |
| 48 |
774691 |
Axle 16-1/2" long (Peerless part number) Price: Call Us |
| 49 |
778191 |
Gear, Spur, 37 Teeth (1st) (Peerless part number) Price: Call Us |
| 50 |
778124A |
Gear, Spur, 30 Teeth (2nd ) (Peerless part number) Price: Call Us |
| 51 |
778123A |
Gear, Spur, 25 Teeth (3rd) (Peerless part number) Price: Call Us |
| 52 |
778122A |
Gear, Spur, 22 Teeth (4th) (Peerless part number) Price: Call Us |
| 53 |
778273 |
Gear, Spur, 19 Teeth, Steel (5th) (Peerless part number) Price: Call Us |
| 56 |
778230 |
Gear, Spur, 12 Teeth (1st) (Peerless part number) Price: Call Us |
| 57 |
778126A |
Gear, Spur, 20 Teeth (2nd) (Peerless part number) Price: Call Us |
| 58 |
778127A |
Gear, Spur, 25 Teeth (3rd) (Peerless part number) Price: Call Us |
| 59 |
778128A |
Gear, Spur, 28 Teeth (4th) (Peerless part number) Price: Call Us |
| 60 |
778163 |
Gear, Spur, 31 Teeth (5th) (Peerless part number) Price: Call Us |
| 63 |
786071 |
Spacer (Peerless part number) Price: Call Us |
| 64 |
786072 |
Spacer (Peerless part number) Price: Call Us |
| 65 |
780109 |
Washer, Thrust (Peerless part number) Price: Call Us |
| 66 |
776135 |
Shaft, Input (Peerless part number) Price: Call Us |
| 67 |
776315A |
Shaft, Brake, 4 Keyed (Peerless part number) Price: Call Us |
| 68 |
786116A |
Plug (Peerless part number) Price: Call Us |
| 69 |
780051 |
Washer, Thrust (Peerless part number) Price: Call Us |
| 70 |
786118 |
Spacer (Peerless part number) Price: Call Us |
| 71 |
788069 |
Seal, Square Cut (Peerless part number) Price: Call Us |
| 72 |
792165 |
Plug, Threaded 9/16-18 (Peerless part number) Price: Call Us |
| 76 |
780090 |
Washer, Thrust (Peerless part number) Price: Call Us |
| 77 |
788078A |
Ring, Retaining, Inverted (Peerless part number) Price: Call Us |
| 79 |
792144 |
Spring, Brake (Peerless part number) Price: Call Us |
| 82 |
786082 |
Sprocket, 9 Teeth (Reverse) (Peerless part number) Price: Call Us |
| 83 |
786123 |
Sprocket, 18 Teeth (Reverse) (Peerless part number) Price: Call Us |
| 90 |
788067B |
Grease, Bentonite, 32 Ounce Bottle (Peerless part number) Price: Call Us |
