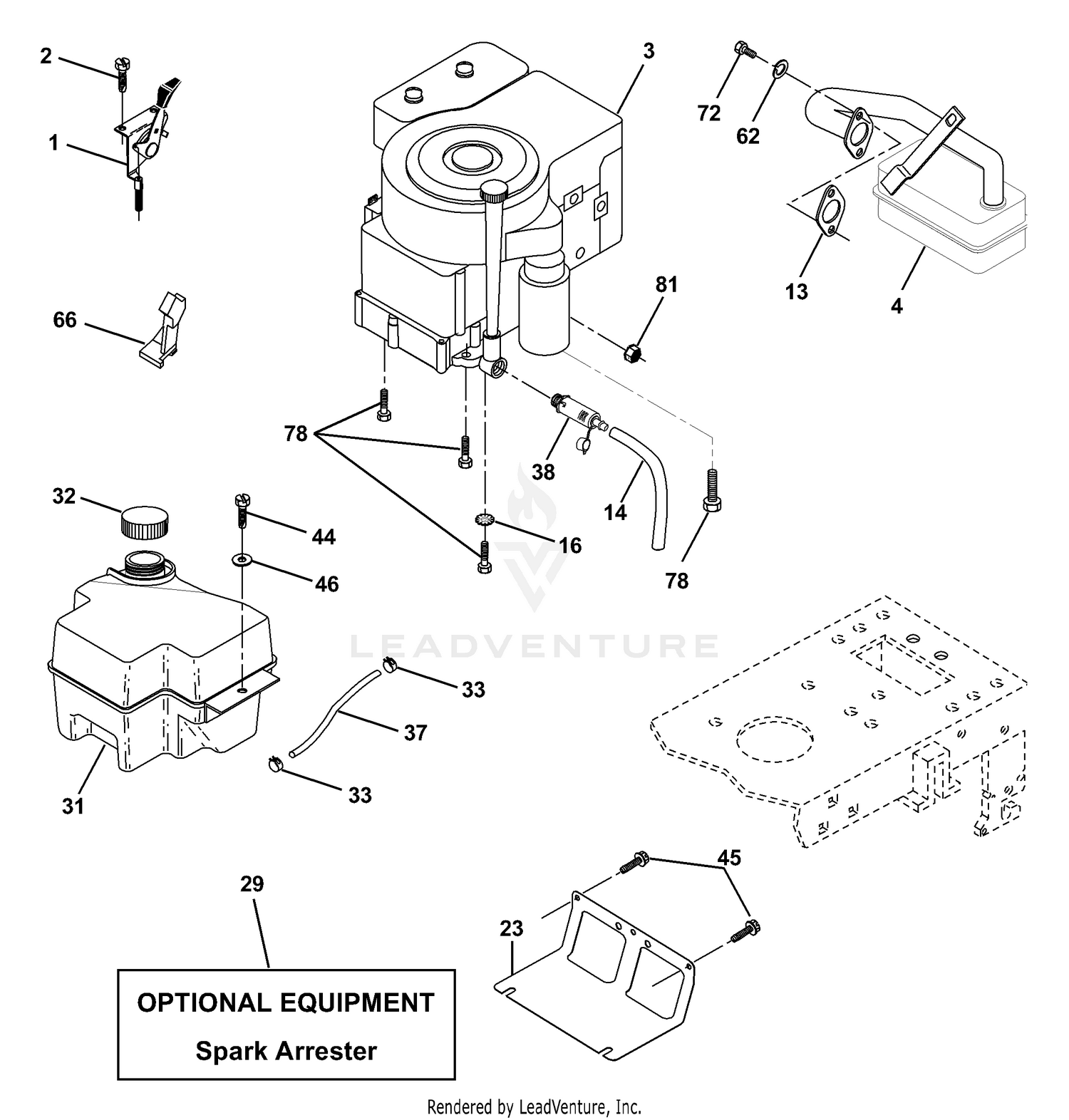

| Ref | Part Number | Description |
|---|
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK Price: $22.99 |
| 1 |
94-5598 |
DISCONTINUED Price: Call Us |
| 2 |
32121-27 |
PIN-ROLL Price: $1.56 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
237-78 |
O-RING Price: $3.85 |
| 4 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
237-21 |
O-RING Price: $0.70 |
| 6 |
237-42 |
O-RING Price: $2.78 |
| 7 |
98-8069 |
CYLINDER - HYD 1-5/8 Price: $778.75 |
| 8 |
82-8170 |
CLAMP Price: $17.27 |
| 9 |
67-1750 |
BUSHING Price: $0.92 |
| 10 |
84-8320 |
INSERT-HINGE Price: $29.68 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 12 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 13 |
328-12 |
SCREW-HH Price: $9.77 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER This part replaces 75-5210. Price: $94.91 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
328-7 |
SCREW-HH Price: $4.00 |
| 19 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 27 |
75-4550-03 |
SHAFT-LIFT, CENTER This part replaces 75-4550. Price: $259.44 |
| 28 |
75-5890 |
HOSE Price: $75.32 |
| 29 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532174642. Price: $59.99 |
| 31 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 32 |
94-5800 |
DISCONTINUED Price: Call Us |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 33 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 34 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 35 |
322-13 |
SCREW-HH Price: $2.73 |
| 36 |
93-7960 |
SPACER Price: $5.67 |
| 37 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 39 |
323-11 |
SCREW-HH Price: $1.08 |
| 40 |
104-8602 |
CENTER LIFT ARM ASM This part replaces 94-5802. Price: $649.23 |
| 41 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 43 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 44 |
94-5808 |
DISCONTINUED Price: Call Us |
| 45 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 93-9310. Price: $582.35 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 47 |
75-5900 |
HOSE Price: $78.45 |
| 48 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 49 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 51 |
92-8754 |
DISCONTINUED Price: Call Us |
| 52 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 53 |
75-5410 |
BRACKET-ARM Price: $12.57 |
| 54 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 55 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 56 |
323-12 |
SCREW-HH Price: $1.14 |
| 57 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 58 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 59 |
325-4 |
SCREW-HH Price: $0.95 |
| 60 |
75-5910 |
HOSE Price: $69.05 |
| 61 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 62 |
93-6687 |
DECAL-NO STEP Price: $14.45 |
| 64 |
340-1 |
FITTING-STRAIGHT Price: $10.19 |
| 65 |
82-6490 |
HOSE Price: $83.18 |
| 66 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 67 |
98-8068 |
CYLINDER - HYD 1-1/2 PHAS Price: $772.51 |
| 68 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 69 |
92-9097 |
SCREW-HS Price: $1.56 |
| 70 |
340-143 |
ELBOW-SWIVEL, 90 DEG Price: $58.91 |
| 71 |
98-9742 |
VALVE-CONTROL, FLOW Price: $158.79 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
