| Ref | Part Number | Description |
|---|
| 1 |
159530 |

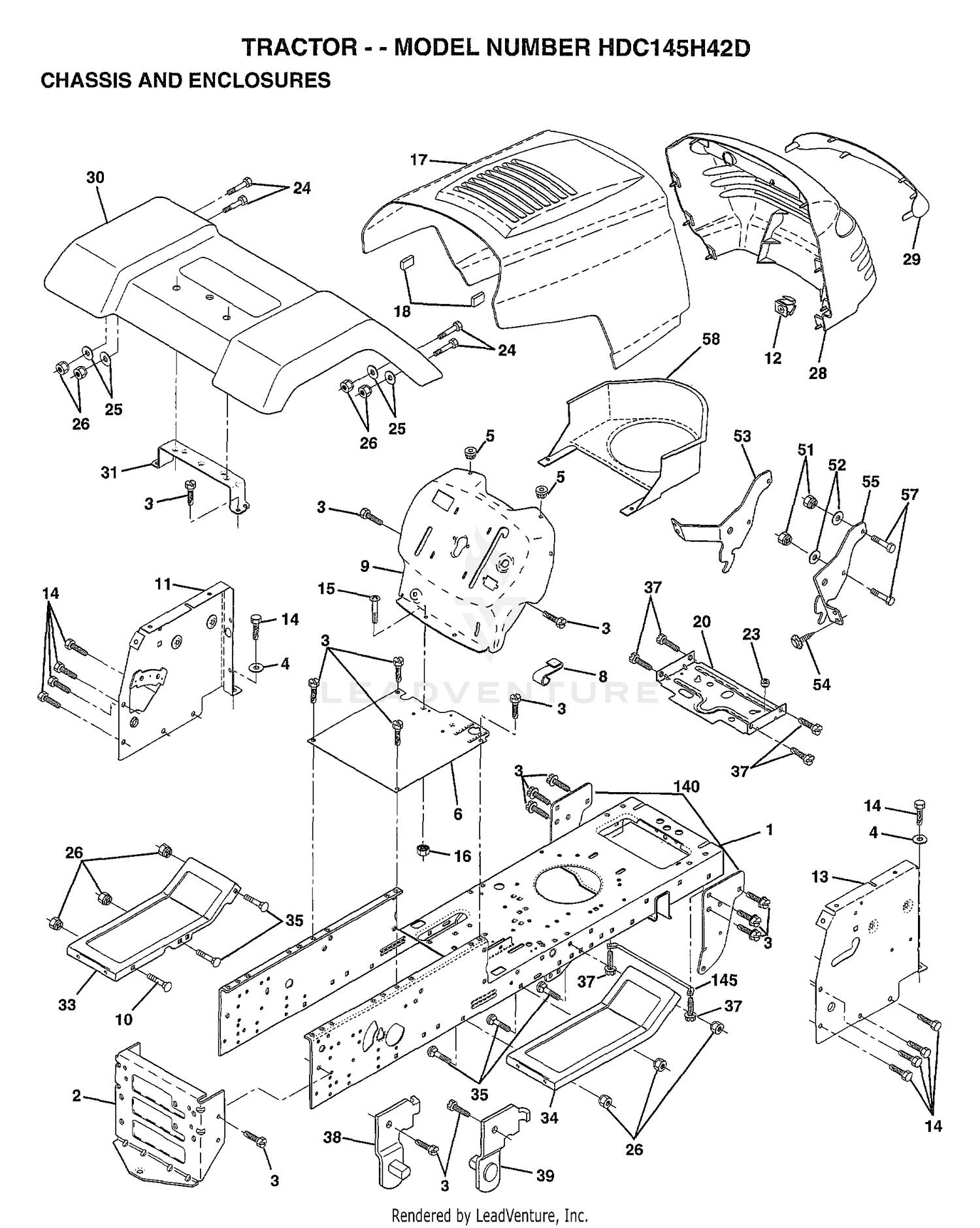

CHASSIS ASM Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
155923 |
SADDLE Price: Call Us |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 9 |
147627X011 |
DASH.SILKSCREENED Price: Call Us |
| 010 |
112-7000 |
PISTON ASM This part replaces 100-9181. Price: $594.20 |
| 010 |
99-5435 |
DISCONTINUED Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 020 |
100-9182 |
PISTON RING ASM (STD) Price: $207.83 |
| 020 |
99-5436 |
DISCONTINUED Price: Call Us |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 030 |
115-8544 |
PIN-PISTON This part replaces 98-7464. Price: $12.02 |
| 30 |
140001X428 |
FENDER ASM LT W/S Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
105476X428 |
FOOTREST LH Price: Call Us |
| 34 |
105475X428 |
FOOTREST RH Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 040 |
98-7465 |
CLIP-PIN, PISTON Price: $1.15 |
| 050 |
120-5837 |
CONNECTING ROD ASM This part replaces 98-7466. Price: $636.87 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 060 |
98-7467 |
DISCONTINUED Price: Call Us |
| 070 |
120-5184 |
BOLT-CONNECTING ROD This part replaces 98-7468. Price: $2.86 |
| 080 |
115-8547 |
METAL-CRANKPIN (-0.20MM) This part replaces 98-7470. Price: $30.50 |
| 080 |
115-8548 |
METAL-CRANKPIN (-0.40MM) This part replaces 98-7471. Price: $20.98 |
| 080 |
98-7469 |
METAL-CRANKPIN (STD) Price: $51.49 |
| 090 |
98-7472 |
CRANKSHAFT-COMPLETE Price: $1,292.46 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-7474 |
SLEEVE-CRANKSHAFT Price: $51.84 |
| 120 |
98-7475 |
GEAR-CRANKSHAFT Price: $167.20 |
| 130 |
98-7451 |
KEY-FEATHER Price: $1.72 |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
| 140 |
98-7476 |
SLINGER-OIL Price: $12.10 |
| 150 |
98-7477 |
COLLAR-CRANKSHAFT Price: $53.13 |
| 160 |
98-7478 |
O-RING Price: $2.39 |
| 170 |
98-7479 |
NUT-CRANKSHAFT Price: $23.66 |
| 180 |
98-7481 |
METAL-CRANKSHAFT (STD) Price: $45.98 |
| 180 |
98-7482 |
METAL-CRANKSHAFT (-0.20MM) Price: $18.75 |
| 180 |
98-7483 |
METAL-CRANKSHAFT (-0.40MM) Price: $55.04 |
| 190 |
98-7484 |
METAL-CRANKSHAFT (STD) Price: $34.20 |
| 190 |
99-6862 |
METAL-CRANKSHAFT (-0.20MM) Price: $63.26 |
| 190 |
99-6863 |
METAL-CRANKSHAFT (-0.40MM) Price: $63.74 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) This part replaces 99-6864. Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 99-6869. Price: $12.65 |
| 210 |
98-9688 |
BEARING-THRUST (STD) This part replaces 99-6867. Price: $16.90 |
