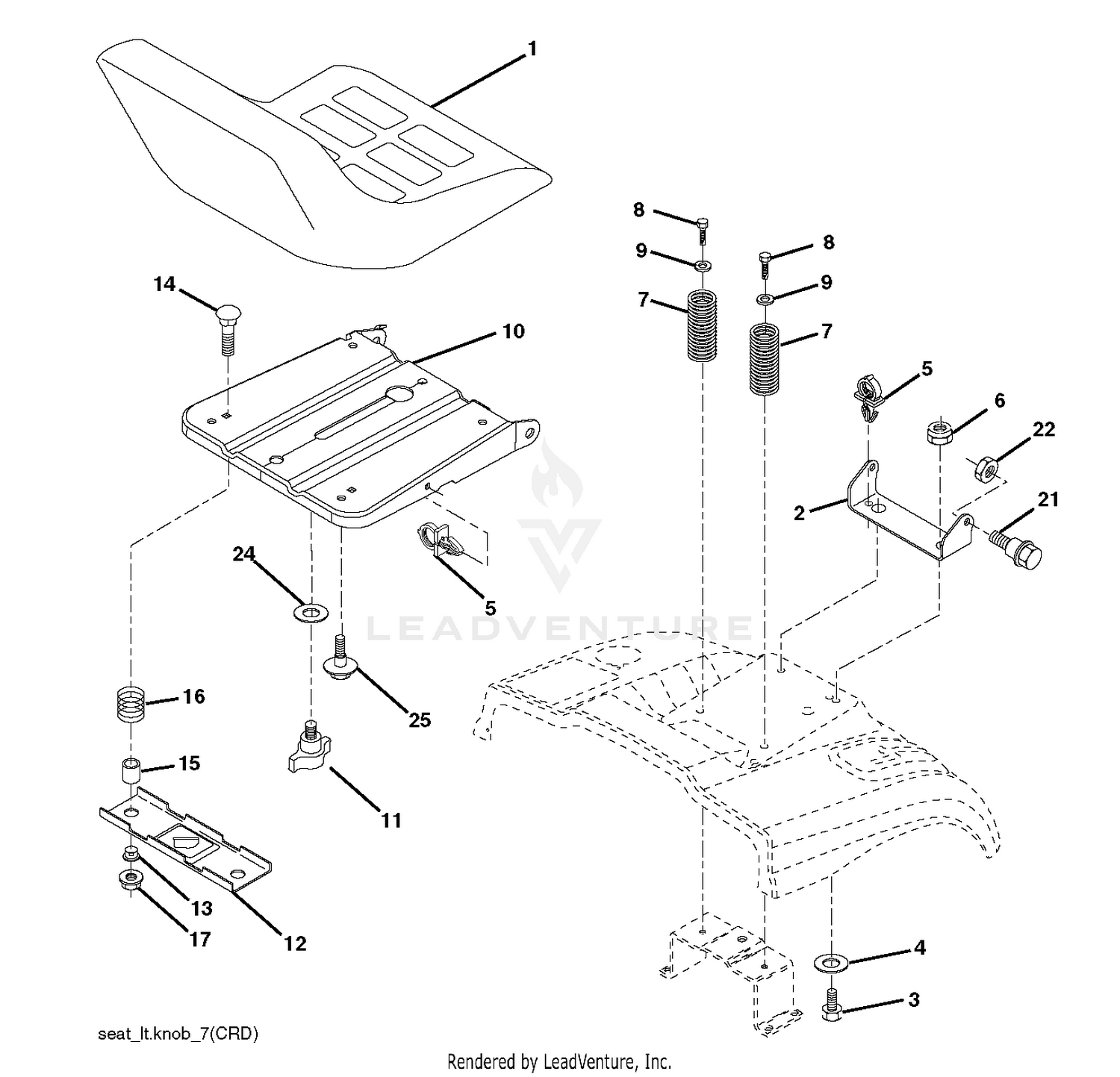

| Ref | Part Number | Description |
|---|
| 1 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 2 |
3-8448 |
WASHER-THRUST Price: $2.58 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
26-8310-01 |
BAIL-LIFT This part replaces 26-8310. Price: $233.66 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
32153-5 |
NUT-HEX Price: $1.59 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
6-1030 |
HOUSING Price: $158.52 |
| 6 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
325-17 |
SCREW-HH Price: $2.90 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
5-1091 |
SPACER Price: $4.98 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
3-9280-01 |
DRAWBAR This part replaces 3-9280. Price: $321.93 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $17.99 |
| 11 |
325-14 |
SCREW-HH Price: $2.64 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
5-1706 |
SPRING-EXTENSION Price: $12.91 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
