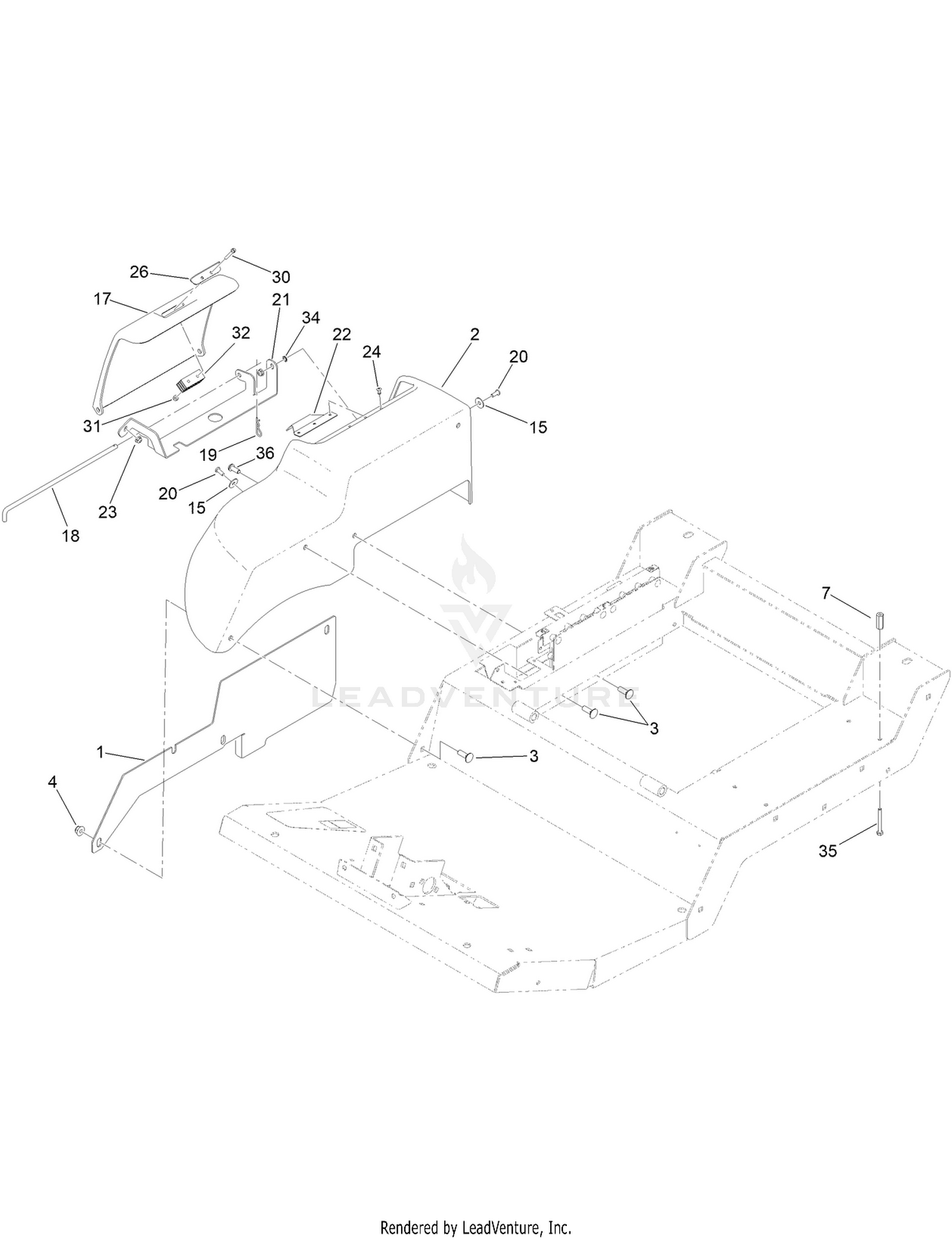

RH Fender Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-8391-0P | PLATE-FENDER, RH Price: $27.62 |
| 2 | 120-4113 | FENDER-RH Price: $186.72 |
| 3 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 136-4358 | NUT-COUPLING Price: $29.99 |
| 15 | 87-6630 | WASHER-PLAIN Price: $0.39 |
| 17 | 120-4115 | COVER-BATTERY Price: $105.88 |
| 18 | 121-1588 | ROD-HINGE Price: $21.72 |
| 19 | 3290-467 | PIN-HAIR Price: $0.27 |
| 20 | 3274-31 | SCREW-HSBH Price: $0.89 |
| 21 | 121-1586-0P | MOUNT-COVER Price: $43.43 |
| 22 | 127-3706 | PLATE-COVER Price: $10.13 |
| 23 | 104-7201 | NUT-HF Price: $0.69 |
| 24 | 3269-23 | RIVET-POP Price: $0.25 |
| 26 | 127-3705 | PLATE-COVER Price: $7.81 |
| 30 | 32105-1 | SCREW-SHH Price: $3.19 |
| 31 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 32 | 69-6260 | MAGNET Price: $58.32 |
| 34 | 3255-7 | WASHER-LOCK/EXT Price: $1.39 |
| 35 | 100-5858 | SCREW-HH Price: $5.89 |
