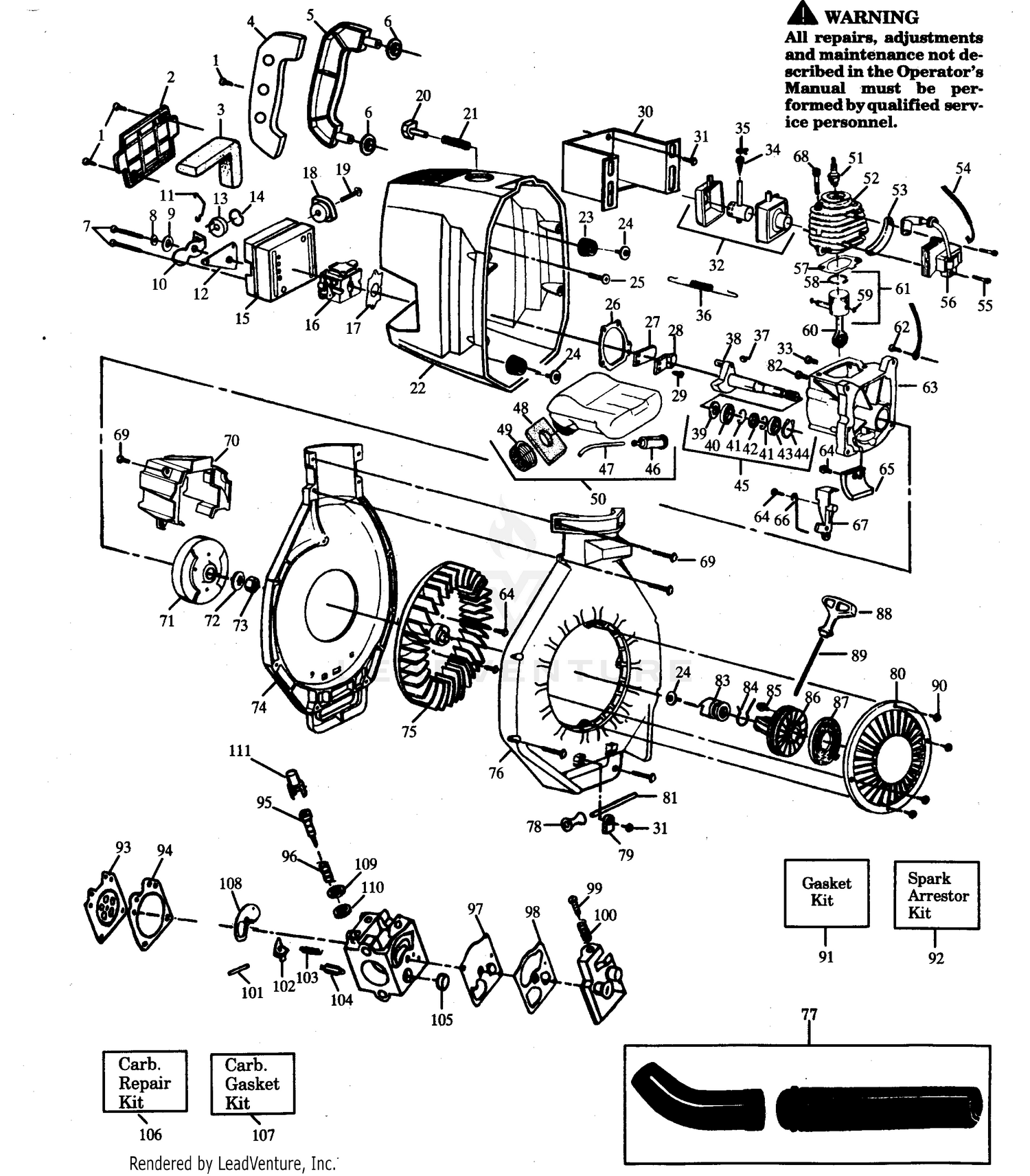

BLOWER ASSEMBLY
Parts (121)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 222-8 | CAP-GAS Price: $65.84 |
| 1 | 530015635 | Screw Price: $1.99 |
| 2 | 3-9022 | DISCONTINUED Price: Call Us |
| 2 | 530029488 | Air Filter Cover Price: $1.99 |
| 3 | 289-4 | DISCONTINUED Price: Call Us |
| 3 | 530029611 | Air Filter Price: $1.99 |
| 4 | 224-173 | DISCONTINUED Price: Call Us |
| 4 | 530029615 | Handle Cover Price: $2.99 |
| 5 | 530029614 | Handle Price: $3.97 |
| 6 | 304-73 | FITTING-STRAIGHT Price: $12.59 |
| 6 | 530029608 | Handle Isolator Price: $1.99 |
| 7 | 32153-3 | NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 7 | 530015887 | Screw Price: $1.99 |
| 8 | 3-9334 | DISCONTINUED Price: Call Us |
| 8 | 530015852 | Choke Spacer Price: $1.99 |
| 9 | 3-8917 | DISCONTINUED Price: $18.99 |
| 9 | 530015254 | Wave Washer Price: $1.99 |
| 10 | 530029480 | Choke Shutter Price: $1.99 |
| 10 | 603773 | LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 11 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 11 | 530029485 | Throttle Wire Price: $1.99 |
| 12 | 322-10 | SCREW-HH Price: $0.70 |
| 12 | 530029481 | Choke Mtg. Plate Price: $0.99 |
| 13 | 3-6987 | DISCONTINUED Price: Call Us |
| 13 | 530029486 | Retainer Price: $1.99 |
| 14 | 323-10 | SCREW-HH Price: $0.89 |
| 14 | 530015147 | Wave Washer (Knob) Price: $1.99 |
| 15 | 3-6991 | DISCONTINUED Price: Call Us |
| 15 | 530029589 | Air Box Price: $4.99 |
| 16 | 304-75 | CONNECTOR-HOSE Price: $8.29 |
| 16 | 530035262 | Type 1 (WA-207A) Price: Call Us |
| 16 | 545081825 | KIT CARBURETOR ASSY This part replaces 530069637. Price: $49.99 |
| 17 | 3-9161 | DISCONTINUED Price: Call Us |
| 17 | 530019164 | Carburetor Gasket Price: $2.99 |
| 18 | 530029484 | Throttle Knob Price: Call Us |
| 19 | 530015880 | Screw Price: $1.99 |
| 20 | 530029600 | Button Price: $0.99 |
| 21 | 530029607 | Spring Price: $0.99 |
| 22 | 530037712 | Shroud Price: $27.99 |
| 23 | 530029434 | Spring Price: $0.65 |
| 24 | 530015879 | Screw Price: $1.99 |
| 25 | 530015876 | Screw Price: $0.99 |
| 26 | 530019154 | Gasket Price: $1.99 |
| 27 | 530027593 | Reed Valve Price: $1.99 |
| 28 | 530029781 | Reed Stop Price: $1.99 |
| 29 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 30 | 530029597 | Heat Shield Price: $1.92 |
| 31 | 530015805 | Screw Price: $1.99 |
| 32 | 530069293 | Muffler Price: $9.99 |
| 33 | 530015771 | Screw Price: $1.99 |
| 34 | 530029227 | Spark Arrestor Screen Price: $17.99 |
| 35 | 530029228 | Spark Arrestor Clamp Price: $0.62 |
| 36 | 530029116 | Muffler Spring Price: $1.99 |
| 37 | 530015126 | Key Price: $1.99 |
| 38 | 530010945 | Crankshaft Ass'y.- See Service Ref. 1 Price: $49.19 |
| 40 | 530032103 | Inner Bearing Price: Call Us |
| 41 | 530015787 | Ring Price: $1.99 |
| 42 | 530019158 | Crankshaft Seal Price: $2.99 |
| 43 | 530032102 | Outer Bearing Price: $8.99 |
| 44 | 530015789 | Retaining Ring Price: $2.99 |
| 45 | 530014004 | Crankcase/Crankshaft Ass'y. Price: Call Us |
| 46 | 530095646 | Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 47 | 530069247 | Fuel Line Kit Price: $3.99 |
| 48 | 530029602 | Foam Price: $1.99 |
| 49 | 530014347 | Fuel Cap Price: $4.99 |
| 50 | 530014267 | Fuel Tank Ass'y. Price: Call Us |
| 51 | 503235112 | Spark Plug This part replaces 952030078. Price: $5.99 |
| 52 | 530012349 | CYLINDER This part replaces 530012244. Price: $39.99 |
| 53 | 530027525 | Spacer Price: $0.99 |
| 54 | 530029606 | Leadwire Switch Price: $0.81 |
| 55 | 530015776 | Screw Price: $0.99 |
| 56 | 530039137 | Ignition Module Price: $37.99 |
| 57 | 530019267 | GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 58 | 530026413 | Piston Ring Price: $4.99 |
| 59 | 530015162 | Retainer Price: $1.99 |
| 60 | 530014005 | Piston Rod Price: Call Us |
| 61 | 530069274 | Piston Kit (Inc. 58,59,Pin) Price: $37.99 |
| 62 | 530015775 | Screw Price: $1.99 |
| 63 | 530014016 | Crankcase Ass'y. Price: Call Us |
| 64 | 530015918 | Screw Price: $1.99 |
| 65 | 530029603 | Isolator Price: $1.99 |
| 66 | 530029613 | Spring Price: $1.99 |
| 67 | 530029601 | Insulator Price: $0.60 |
| 68 | 530015239 | Screw Price: $1.99 |
| 69 | 530015814 | Screw-Line Limiter This part replaces 530015872. Price: $1.99 |
| 70 | 530029433 | Baffle Price: $3.99 |
| 71 | 530039139 | Flywheel Price: $26.63 |
| 72 | 530015149 | Washer Price: $1.99 |
| 73 | 530626605 | Nut Price: $1.99 |
| 74 | 530029432 | Blower Housing (Upper) Price: $11.99 |
| 75 | 530094865 | Impeller Price: $8.99 |
| 76 | 530014265 | Blower Housing (Lower) Price: $11.99 |
| 77 | 530038508 | Blower Tube Kit Price: $8.99 |
| 78 | 530029575 | Roller Price: $1.99 |
| 79 | 530027523 | Retainer Price: $2.99 |
| 80 | 530094867 | Pulley Housing Price: $5.99 |
| 81 | 530015851 | Roll Pin Price: $1.99 |
| 82 | 530015772 | Screw Price: $1.99 |
| 83 | 530029448 | Pinion Price: $1.99 |
| 84 | 530037716 | Drag Element Price: $0.39 |
| 85 | 530015882 | Screw Price: $1.99 |
| 86 | 530069306 | Starter Pulley Price: $5.99 |
| 87 | 545008015 | SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 88 | 530027569 | Starter Handle Price: $1.99 |
| 89 | 530069232 | Rope Kit Price: $3.99 |
| 90 | 530015886 | Screw Price: $1.99 |
| 91 | 530069302 | Gasket Kit Price: $3.99 |
| 92 | 530069348 | Spark Arrestor Kit Price: $17.99 |
| 93 | 503896701 | DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 94 | 530035151 | Metering Diaphragm Gasket Price: $1.99 |
| 95 | 530035212 | Mixture Needle Price: Call Us |
| 96 | 530035293 | Needle Spring-Low Speed This part replaces 530035214. Price: $1.99 |
| 97 | 504130807 | PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 98 | 504130906 | GASKET This part replaces 530035164. Price: $1.99 |
| 104 | 503117001 | Needle This part replaces 530035106. Price: $7.99 |
| 105 | 530035178 | Fuel Inlet Screen Price: $1.99 |
| 106 | 530035264 | Carb. Kwik Repair Kit Price: $22.99 |
| 107 | 530069844 | Gasket Diaphragm Kit This part replaces 530035219. Price: $11.99 |
| 108 | 530035211 | Circuit Plate Gasket Price: $1.99 |
| 109 | 530035217 | Mixture Needle Washer Price: Call Us |
| 111 | 530035337 | Limiter Cap (Black) Price: $3.33 |
