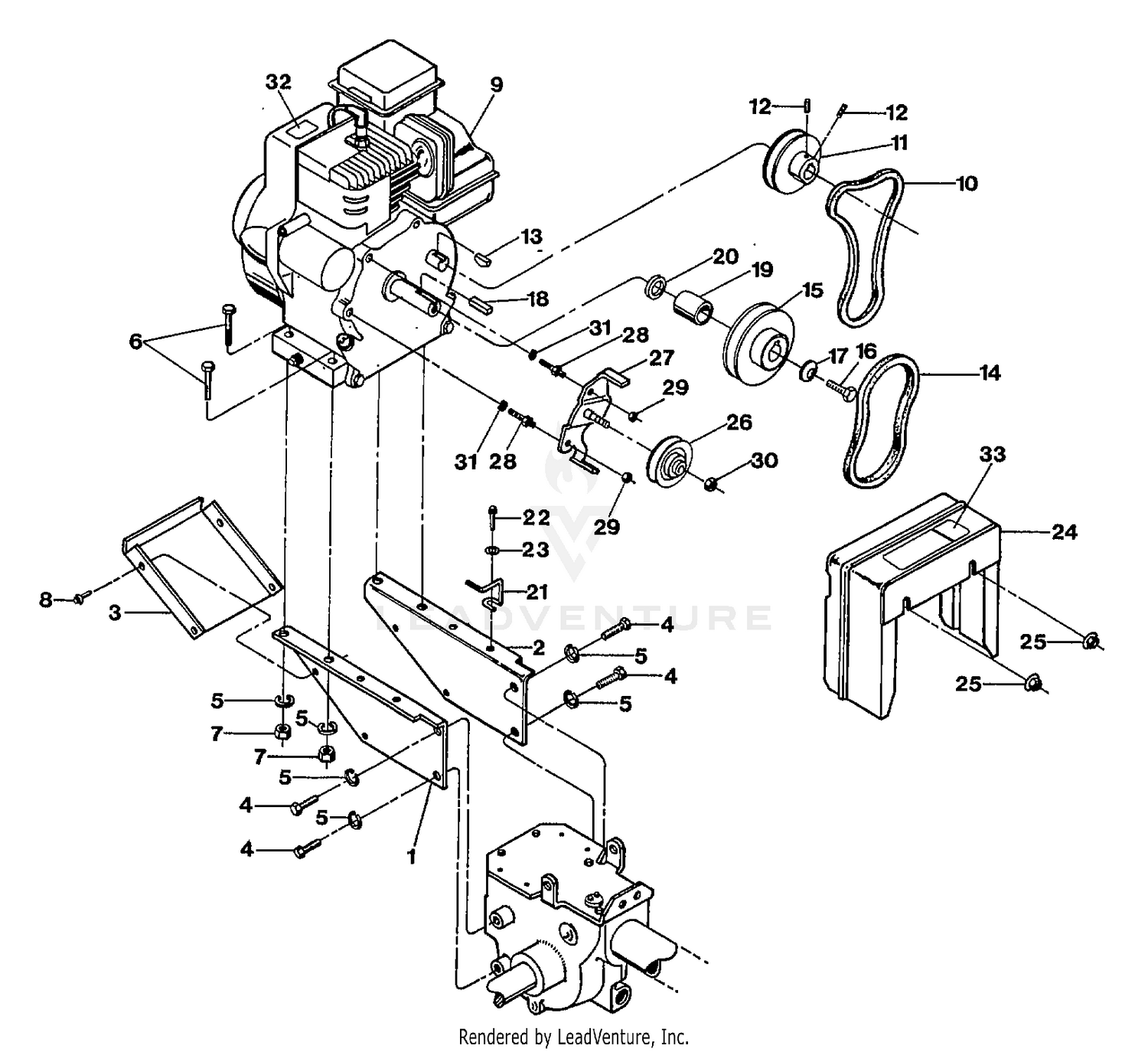

| Ref | Part Number | Description |
|---|
| 1 |
20754 |
BRKT-ENG LT P4 Not Available Price: |
| 2 |
20755 |
BRKT-ENG RT PNT Not Available Price: |
| 3 |
786-04080-0638 |
Belts/Pulleys Guard This part replaces 20673. Price: $18.41 |
| 4 |
9703 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: Call Us |
| 5 |
9912 |
WASHER-LK .312 ZP Price: $19.56 |
| 6 |
9758 |
SCR-HH 5/16-18X1.5 G5 ZP Price: Call Us |
| 7 |
9801 |
NUT-HEX 5/16-18 ZP Price: Call Us |
| 8 |
9768 |
SCR-HH SEMS 10-32 X .5 ZP Price: $21.33 |
| 9 |
N/A |
ENGINE B&S 5HP RECOIL, MAGNETRON IGNITION, MODEL 130292 TYPE 3016-01 |
| 10 |
GW-50134 |
V-BELT This part replaces 50134. Price: $26.70 |
| 11 |
20503 |
PULLEY-ENG MACH Price: Call Us |
| 12 |
9561 |
SCR-SS 1/4-20 X .25 (SECURES REVERSE ENGINE PULLEY) Price: Call Us |
| 13 |
9361 |
KEY-WOODRUFF #5 Price: Call Us |
| 14 |
20565 |
BELT-V GROOVE FWD SMFRAME Price: Call Us |
| 15 |
20765 |
ENGINE PULLEY Not Available Price: |
| 16 |
710-0157 |
HEX SCREW 5/16-24 x .75 This part replaces 9655. Price: $3.90 |
| 17 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 18 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 19 |
9089 |
SPACER (ON FORWARD PTO SHAFT BETWEEN ENGINE & FORWARD PULLEY) Price: Call Us |
| 20 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 21 |
20555 |
BELT GUIDE Not Available Price: |
| 22 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available This part replaces 9573. Price: |
| 23 |
9900 |
WASHER-FLAT 1/4 SAE Price: $61.14 |
| 24 |
20852 |
CVR-BELT W/DEC P/JR OPC (INCL #33) Price: Call Us |
| 25 |
9848 |
NUT-HFLK 5/16-18 ZP Price: $10.95 |
| 26 |
9017 |
IDLER-"V" GROOVE (INTERNAL BUSHING TYPE) Price: Call Us |
| 27 |
20648 |
BRKT-IDLER WELD PNT Price: Call Us |
| 28 |
EB94067 |
STUD-5HP (B&S PART) Price: Call Us |
| 29 |
9811 |
NUT-LK 1/4-20 Price: Call Us |
| 30 |
690-239-0020 |
PRIMER BULB TEC Not Available This part replaces 9807. Price: |
| 31 |
9910 |
WASHER-LK .25 ZP Price: Call Us |
| 32 |
2573 |
DECAL-STABIL STARTING Price: Call Us |
| 4922 |
KIT-BELT |
PONY III (INCL. #20565 & #50134) Price: Call Us 4922 |
