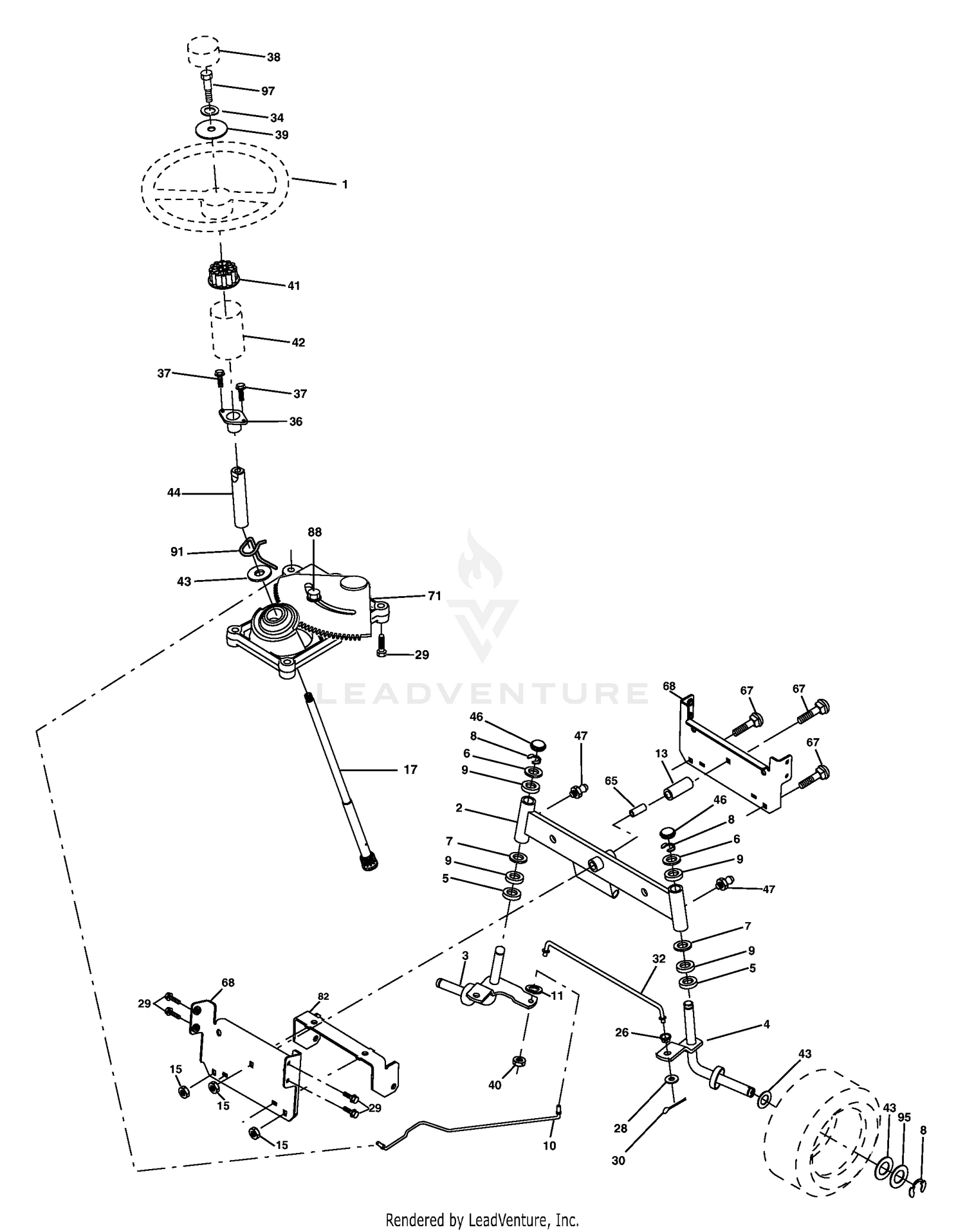

Steering Assembly

Steering Assembly

Parts (39)

RefPart NumberDescription
1 186780 Wheel Steering Price: Call Us
2 175131 Axle Asm Front Price: Call Us
3 169840 Spindle Asm Lh Price: Call Us
4 169839 Spindle Asm Rh Price: Call Us
5 6266H Bearing Race Thrust Harden Price: Call Us
6 121748X Washer 25/32 x 1 5/8 x 16 Ga. Price: Call Us
7 19272016 Washer 27/32 x 1 1/4 x 16 Ga. Price: Call Us
8 12000029 Ring Klip #t5304-75 Price: Call Us
9 3366R Bearing Col Strg Blk Price: Call Us
10 175121 Link Drag Extended Price: Call Us
11 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us
13 136518 Spacer Bearing Axle Front Price: Call Us
15 145212 Hex Flange Lock Price: Call Us
17 190753 Shaft Asm Strg Price: Call Us
26 126847X Bushing Rod Tie Blk Lt Price: Call Us
28 19131416 Washer 13/32 x 7/8 x 16 Ga. Price: Call Us
29 17000612 Screw 3/8-16 x 3/4 Price: Call Us
30 76020412 Pin Price: Call Us
32 192757 Rod Tie Wire Form Price: Call Us
34 10040500 Washer Lock Hvy Hlcl Spr. 5/16 Price: Call Us
36 155099 Bushing Strg 5/8 Id Dash Price: Call Us
37 152927 Screw TT #10-32 x 5 x 3/8 Flange Price: Call Us
38 192916 Insert Cap Strg Price: Call Us
39 19113812 Washer 11/32 ID x 2-3/8 OD 12 Gr. Price: Call Us
40 73540600 Nut Crownlock Price: Call Us
41 186737 Adaptor Wheel Strg .760 Price: Call Us
42 145054X428 Boot Dash Steering Price: Call Us
43 121749X Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us
44 190752 Extension Steering Price: Call Us
46 121232X Cap Spindle Fr Top Blk Price: Call Us
47 183226 Fitting Grease Price: Call Us
65 160367 Spacer Brace Axle Price: Call Us
67 72110618 Bolt Rdhd Sq 3/8-16 unc x 2-1/4 Price: Call Us
68 169827 Brace Axle Price: Call Us
71 175146 Steering Asm Price: Call Us
82 169835 Bracket Susp Chassis Front Price: Call Us
88 175118 Bolt Shoulder 7/16-20 Price: Call Us
91 175553 Clip Steering Price: Call Us
95 188967 Washer Hardened Price: Call Us
