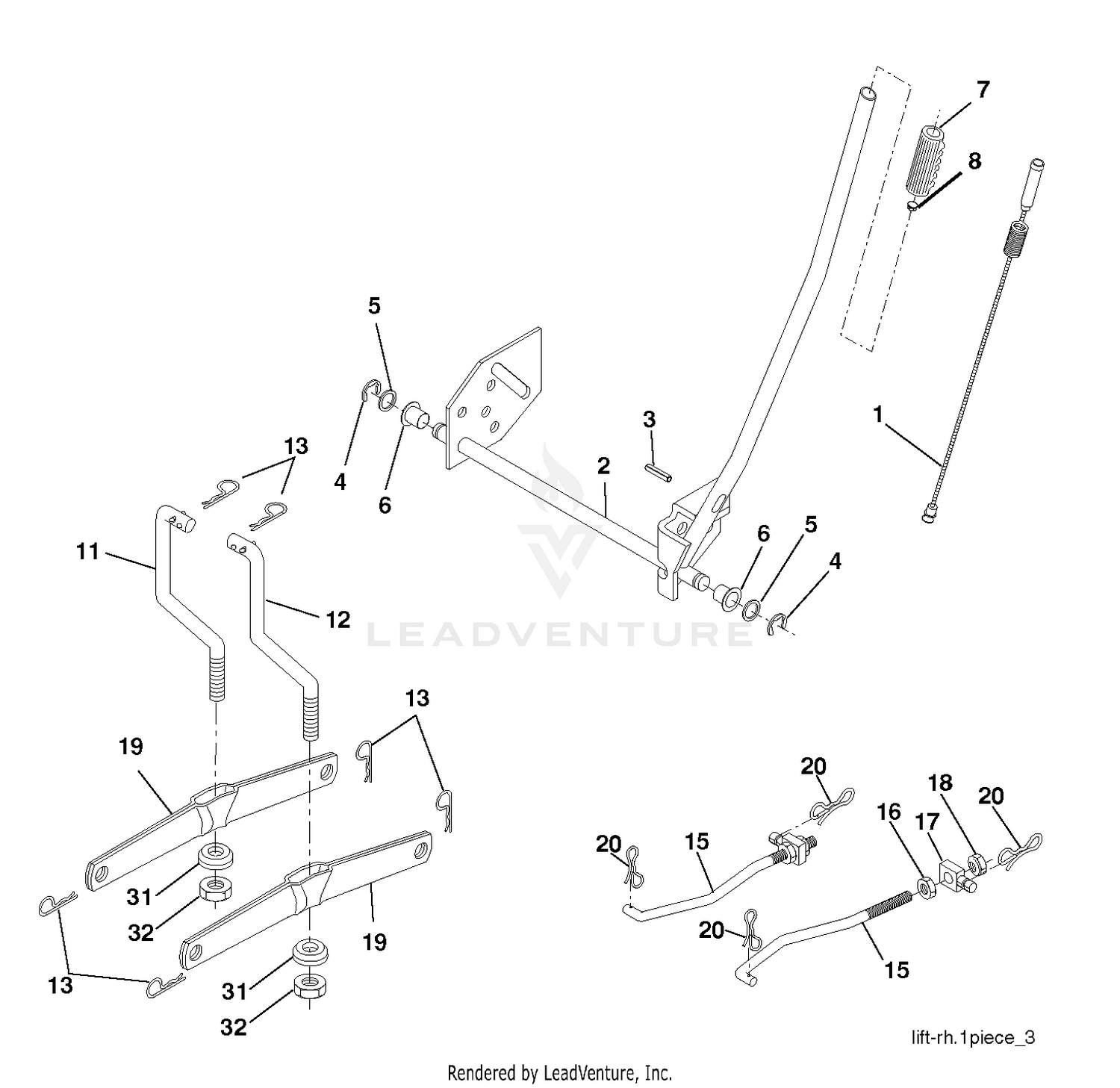

| Ref | Part Number | Description |
|---|
| 1 |
532404981 |
PLUNGER.ASM.LIFT.LVR.BLK.17.32 Price: $11.99 |
| 1 |
631030 |
SHAFT & LEV Price: Call Us |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 2 |
532159471 |
SHAFT ASM R HANDLE Price: $39.99 |
| 2 |
631045 |
RET SPRING This part replaces 630810. Price: Call Us |
| 3 |
22-8330 |
PLUG Price: $64.59 |
| 3 |
532105767 |
PIN GROOVE. Price: $2.99 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
22-8340 |
SPRING Price: $19.09 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
22-8350 |
BALL Price: $12.28 |
| 5 |
630738 |
SPRING Price: $1.25 |
| 5 |
819211621 |
WASHER Price: $3.99 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 6 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 7 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 7 |
532125631 |
GRIP HANDLE Price: $3.99 |
| 7A |
631236 |
SHAFT & LEV Price: Call Us |
| 8 |
22-8380 |
RETAINER Price: $17.86 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 8A |
630735 |
SPRING This part replaces 630972. Price: $1.25 |
| 9 |
22-8490 |
RING-SNAP Price: $6.51 |
| 9 |
630758 |
SHUTTER Price: $1.20 |
| 10 |
22-8480 |
RING-SNAP Price: $49.87 |
| 10 |
630748 |
WELCH PLUG Price: $1.17 |
| 11 |
22-8390 |
RETAINER Price: $56.56 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $14.99 |
| 12 |
22-8400 |
SPACER Price: $42.41 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $7.99 |
| 12B |
631505 |
INLET NEEDLE Price: Call Us |
| 13 |
22-8410 |
SPRING Price: $17.61 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 13A |
631352 |
SPRING Price: Call Us |
| 13B |
631506 |
SPRING Price: Call Us |
| 14 |
22-8420 |
SPOOL Price: $437.22 |
| 14 |
632019A |
FLOAT This part replaces 631023. Price: $5.85 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $8.99 |
| 15 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 16 |
631949 |
FLOAT BOWL This part replaces 631332. Price: $5.16 |
| 16 |
873350800 |
NUT.HEX.JAM.1/2-13 Price: $1.99 |
| 17 |
27136A |
DRAIN ASSY Price: $5.96 |
| 17 |
532175689 |
TRUNNION Price: $2.99 |
| 18 |
27554 |
GASKET Price: $1.05 |
| 19 |
532139868 |
ARM.REAR.SUSPENSION Price: $11.99 |
| 19 |
631345 |
SPRING Price: Call Us |
| 20 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 21 |
631334A |
GASKET This part replaces 631334. Price: $2.25 |
| 22 |
631861 |
POWER SCREW This part replaces 631343. Price: $7.29 |
| 23 |
630740 |
O RING Price: $1.49 |
| 24A |
631344 |
IDLE SCREW Price: Call Us |
| 25 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 26A |
632527 |
FUEL FITTING This part replaces 631038. Price: $6.03 |
| 28 |
630739 |
WASHER Price: $1.25 |
| 29 |
631335 |
LEAD SHOT Price: Call Us |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $3.99 |
