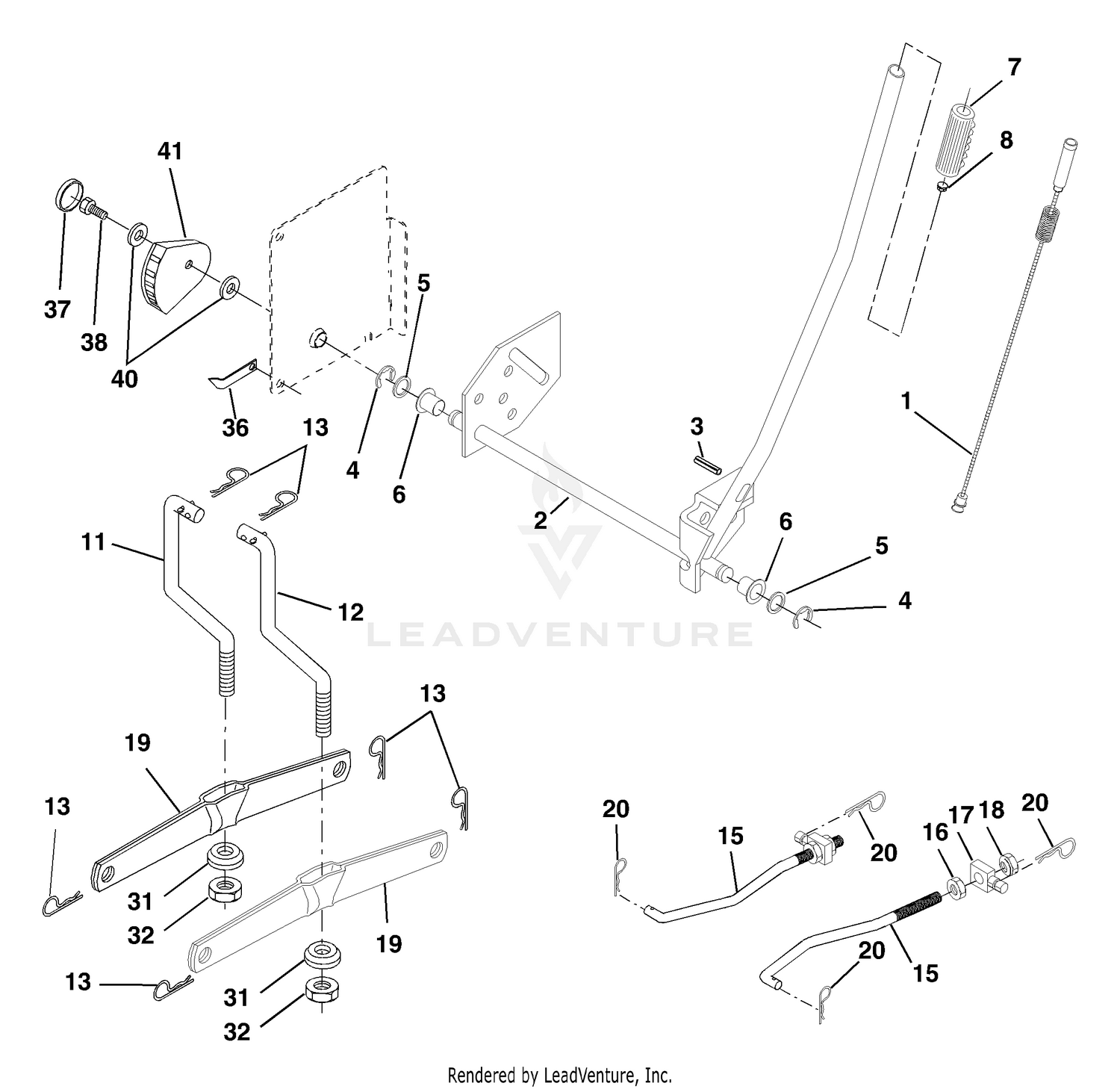

| Ref | Part Number | Description |
|---|
| 1 |
159460 |
Wire Asm Inner/Sprg W/plunger LT Price: Call Us |
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
159471 |
Shaft Asm Lift RH w/Inf Price: Call Us |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
105767X |
Pin Groove 1 500 Zinc Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 4 |
12000002 |
E Ring #5133-62 Price: Call Us |
| 5 |
19211621 |
Washer 21/32 X 1 X 21 Ga Price: Call Us |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 7 |
125631X |
Grip Handle Price: Call Us |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
139-6524 |
ENGINE-BRIGGS STRATTON,VANGUARD This part replaces 106-4618. Price: $2,957.43 |
| 8 |
170770 |
Button Plunger Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 11 |
139865 |
Link Lift LH Fixed Length Price: Call Us |
| 12 |
139866 |
Link Lift RH Fixed Length Price: Call Us |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 13 |
4939M |
Retainer Spring Price: Call Us |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
173288 |
Link Front Price: Call Us |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 16 |
73350800 |
Nut Jam Hex 1/2-13 Unc Price: Call Us |
| 17 |
175689 |
Trunnion Price: Call Us |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 18 |
73800800 |
Nut Lock W/Wsh 1/2-13 Unc Price: Call Us |
| 19 |
139868 |
Arm Suspension Rear Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
163552 |
Retainer Spring Price: Call Us |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 31 |
169865 |
Bearing Pvt Lift Price: Call Us |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 32 |
73540600 |
Nut Crownlock 3/8 - 24 Price: Call Us |
| 33 |
105-8276 |
HARNESS-WIRE, ENGINE Price: $68.07 |
| 36 |
155097 |
Pointer Height Indicator Price: Call Us |
| 37 |
123935X |
Plug Hole Blk 1.485/1.515 Dia. Price: Call Us |
| 38 |
17060516 |
Screw 5/16-18 x 1 Price: Call Us |
| 40 |
19112410 |
Washer 11/32 x 1-1/2 10 Ga. Price: Call Us |
