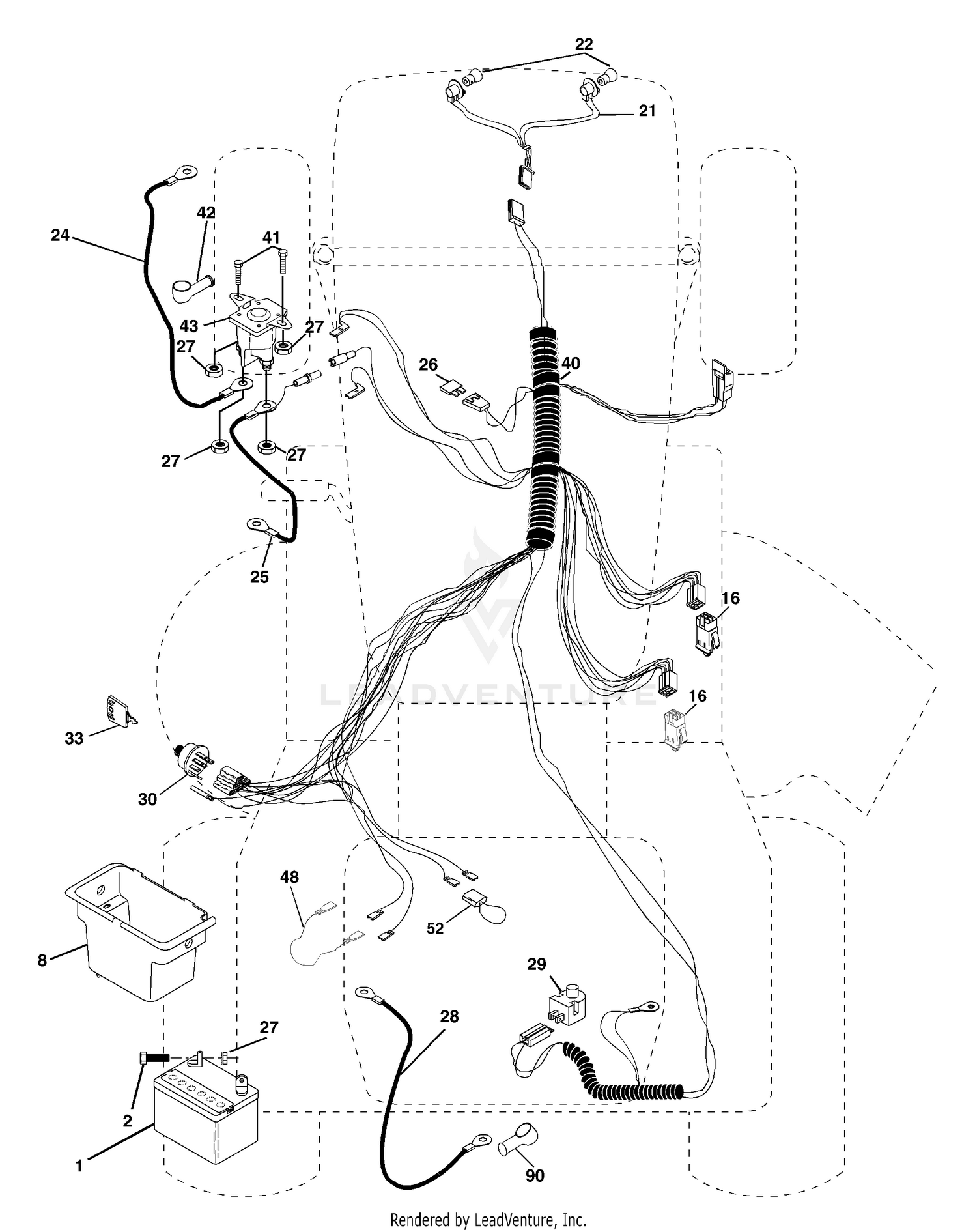

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 4 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 5 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 6 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 7 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 8 |
176689 |
Box Battery Price: Call Us |
| 8 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 9 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 10 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 13 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
105-0138-03 |
STABILIZER Price: $159.95 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
183759 |
Harness Asm Light W/4152j Price: Call Us |
| 21 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 22 |
100-3868-03 |
BRACKET-TIPPER Price: $64.55 |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 23 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 24 |
4799J |
Cable Battery 6 Ga. 11"red Price: Call Us |
| 24 |
75-5390 |
ROLLER Price: $56.69 |
| 25 |
146147 |
Cable Battery Price: Call Us |
| 25 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 26 |
175158 |
Fuse 20 AMP Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
4207J |
Cable Ground 6 Ga. 12"black Price: Call Us |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 30 |
175566 |
Switch Ign Price: Call Us |
| 33 |
140401 |
Key Ign Price: Call Us |
| 40 |
179720 |
Harness Ign Price: Call Us |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4-20 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 48 |
140844 |
Adapter Ammeter Price: Call Us |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
