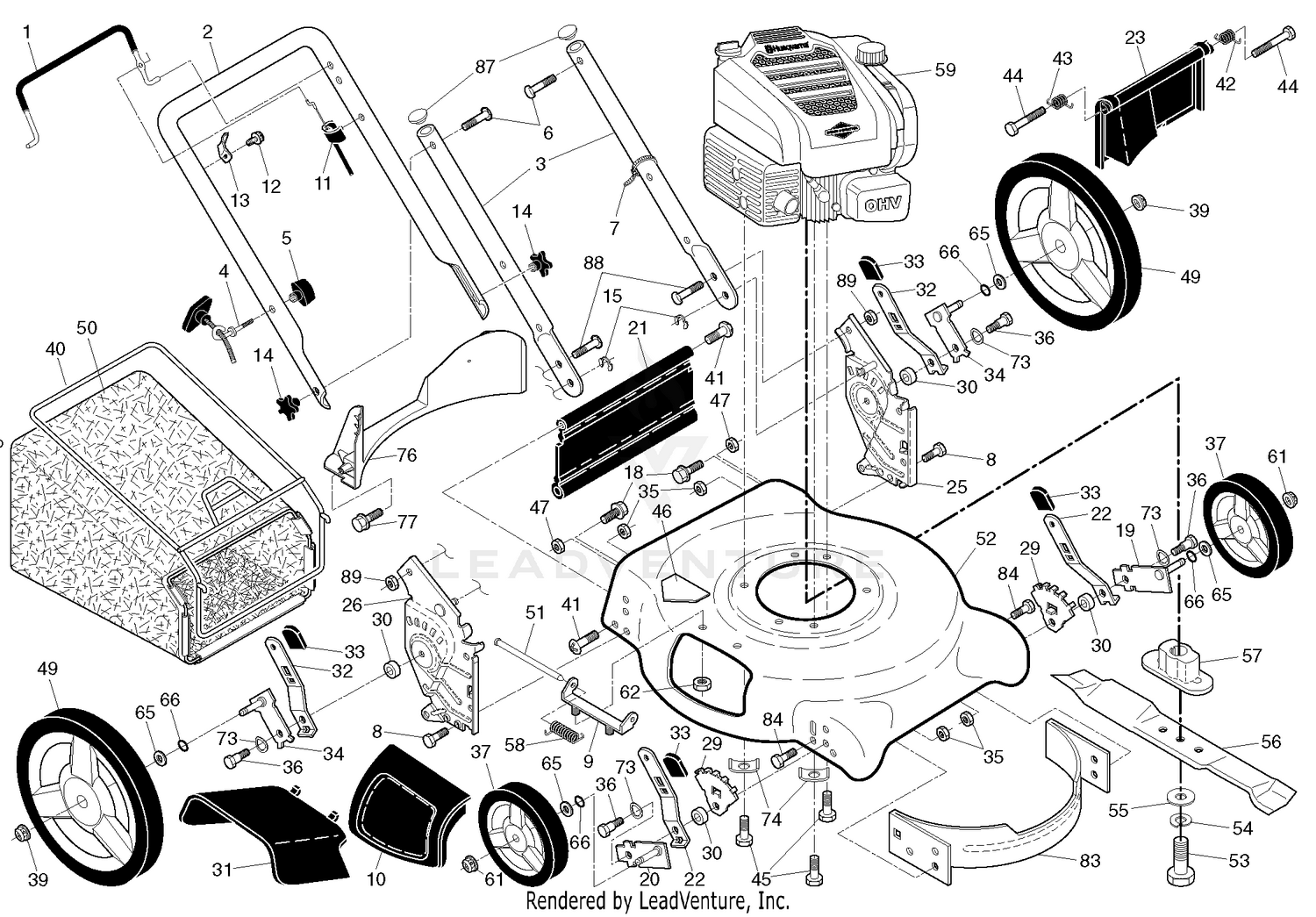

| Ref | Part Number | Description |
|---|
| 1 |
587478302 |
BAIL.ARM.ASSY:STRAIGHT OM Price: $22.99 |
| 2 |
585864806 |
HANDLE.UP.DST.SS/VS.FG/RG.NHGY Price: $12.99 |
| 3 |
580638603 |
HANDLE.LOWER.DOME.BT.GREY Price: $19.99 |
| 4 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 5 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 6 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 7 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 8 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 9 |
532154132 |
BRACKET.ASM.HOUSING.EZ.MUL Price: $5.99 |
| 10 |
581825801 |
DOOR.MULCH.21".REAR.PUSH.GRAY Price: $11.99 |
| 11 |
532408047 |
CONTROL.ZONE.ASM Price: $14.99 |
| 12 |
532178848 |
SCREW Price: $3.99 |
| 13 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 14 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 15 |
812000032 |
KLIP RING Price: $3.99 |
| 18 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 21 |
532416860 |
SKIRT.REAR.21.PUSH Price: $11.99 |
| 23 |
581425601 |
DOOR.REAR.21.DOMED.498 Price: $10.99 |
| 30 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 31 |
589482402 |
DEFLECTOR.CLIPPING.21.PUSH.BLK This part replaces 532185595. Price: $8.99 |
| 33 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 35 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 36 |
596203801 |
Hardware This part replaces 532401638. Price: $3.99 |
| 37 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 39 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 40 |
532411949 |
FRAME.BAG.21.REAR.DOMED.PUSH Price: $32.99 |
| 41 |
532194186 |
SCREW.1/4-20X21/4.HEX. Price: $3.99 |
| 44 |
532184193 |
BOLT Price: $4.99 |
| 45 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 46 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 47 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 49 |
588268602 |
WHEEL.11X1.75.H3SPK.RAD3.BB1 Price: $22.99 |
| 50 |
581002101 |
GBAG.24710010.BLK.GEN This part replaces 581002112. Price: $59.99 |
| 51 |
532147286 |
ROD.HINGE.COMBI-C Price: $6.99 |
| 52 |
581708322 |
HOUSING.21MC.DOME.ORANGE.CE This part replaces 532441950. Price: $59.99 |
| 53 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 This part replaces 532435345. Price: $2.50 |
| 54 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 55 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 57 |
532418373 |
ADAPTER.BLADE.W/KEY.25MM.CE Price: $9.99 |
| 58 |
532152124 |
TORSION SPRING Price: $5.99 |
| 61 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 62 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 65 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 66 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 73 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 74 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 76 |
532410589 |
BAFFLE.REAR.PLASTIC.21.RD.ECON Price: $11.99 |
| 77 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 83 |
532428501 |
BAFFLE.FRONT.21.DOME.US Price: $17.99 |
| 84 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 87 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 88 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $2.99 |
| 89 |
596040501 |
Hardware This part replaces 873970500. Price: $2.99 |
