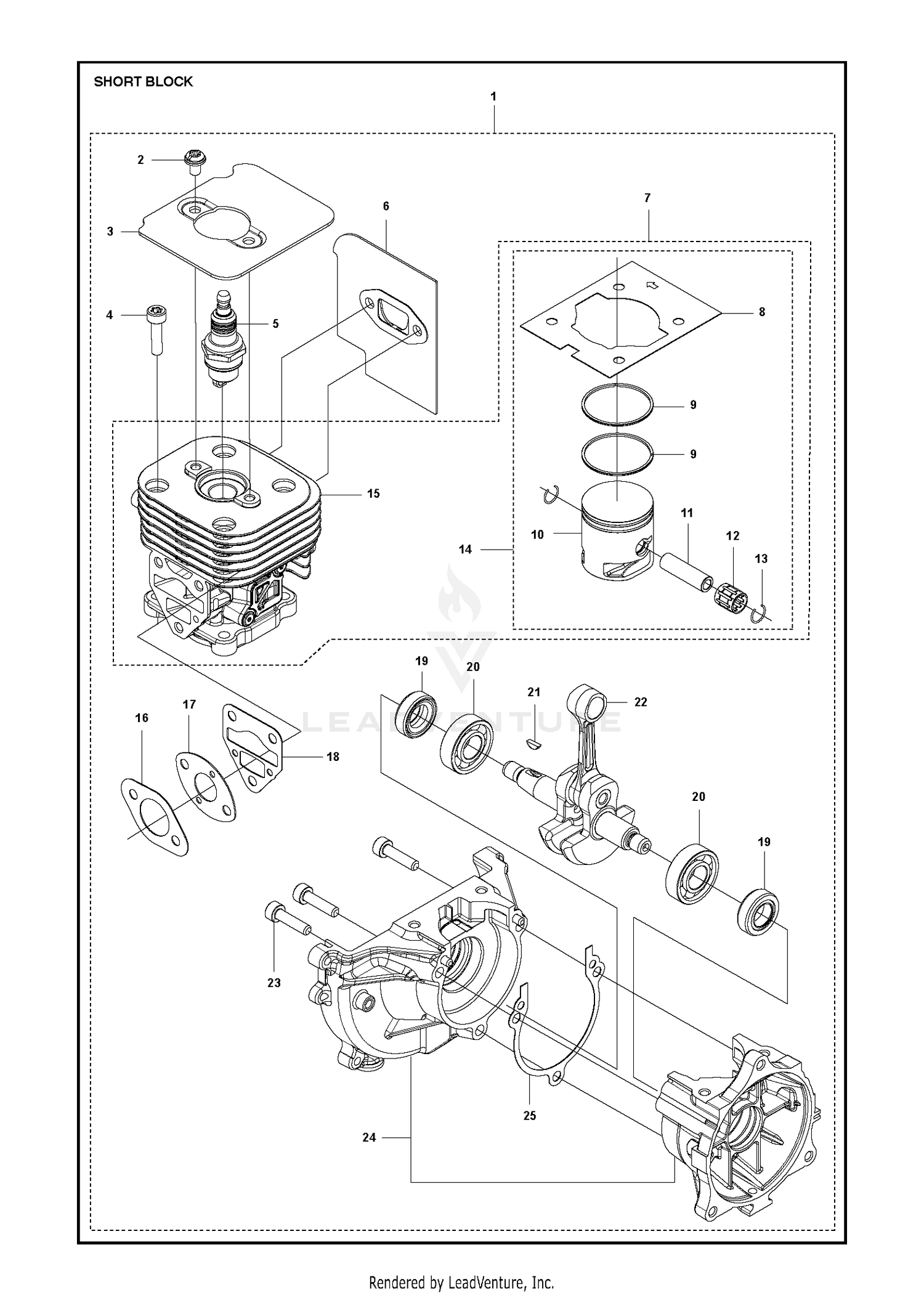

| Ref | Part Number | Description |
|---|
| 1 |
596940601 |
KIT SHORT BLOCK H525 W/PKG This part replaces 592776401. Price: $129.99 |
| 3 |
578785301 |
PLATE CYLINDER Price: $8.99 |
| 4 |
506689001 |
BOLT TORX This part replaces 504114301. Price: $3.99 |
| 5 |
590710101 |
SPARK PLUG HQT-2 RESISTOR This part replaces 584968101. Price: $4.99 |
| 6 |
578408101 |
GASKET MUFFLER Price: $8.99 |
| 7 |
596940701 |
KIT CYLINDER PISTON H525 W/PKG This part replaces 588098202. Price: $69.99 |
| 8 |
576398702 |
GASKET BASE Price: $4.99 |
| 9 |
506618101 |
RING Price: $9.99 |
| 10 |
577917401 |
PISTON Price: $39.99 |
| 11 |
505040701 |
PIN Price: $5.99 |
| 12 |
576402701 |
BEARING Price: $8.99 |
| 13 |
505045201 |
RING Price: $2.99 |
| 14 |
588098102 |
SERVICE KIT PISTON 525 TRIMMER Price: $29.99 |
| 15 |
577979001 |
CYLINDER COMP Price: $59.99 |
| 16 |
577882402 |
GASKET Price: $3.99 |
| 17 |
576399102 |
GASKET CARBURETOR Price: $4.99 |
| 18 |
576398901 |
GASKET Price: $4.99 |
| 19 |
504121501 |
SEAL Price: $7.99 |
| 20 |
506610301 |
BEARING Price: $9.99 |
| 21 |
506689401 |
KEY Price: $2.99 |
| 22 |
586656602 |
Crankshafts This part replaces 579223201. Price: $69.99 |
| 23 |
506689001 |
BOLT TORX This part replaces 504114301. Price: $3.99 |
| 24 |
581308602 |
CRANKCASE COMP Price: $49.99 |
| 25 |
576399502 |
GASKET CASE Price: $4.99 |
