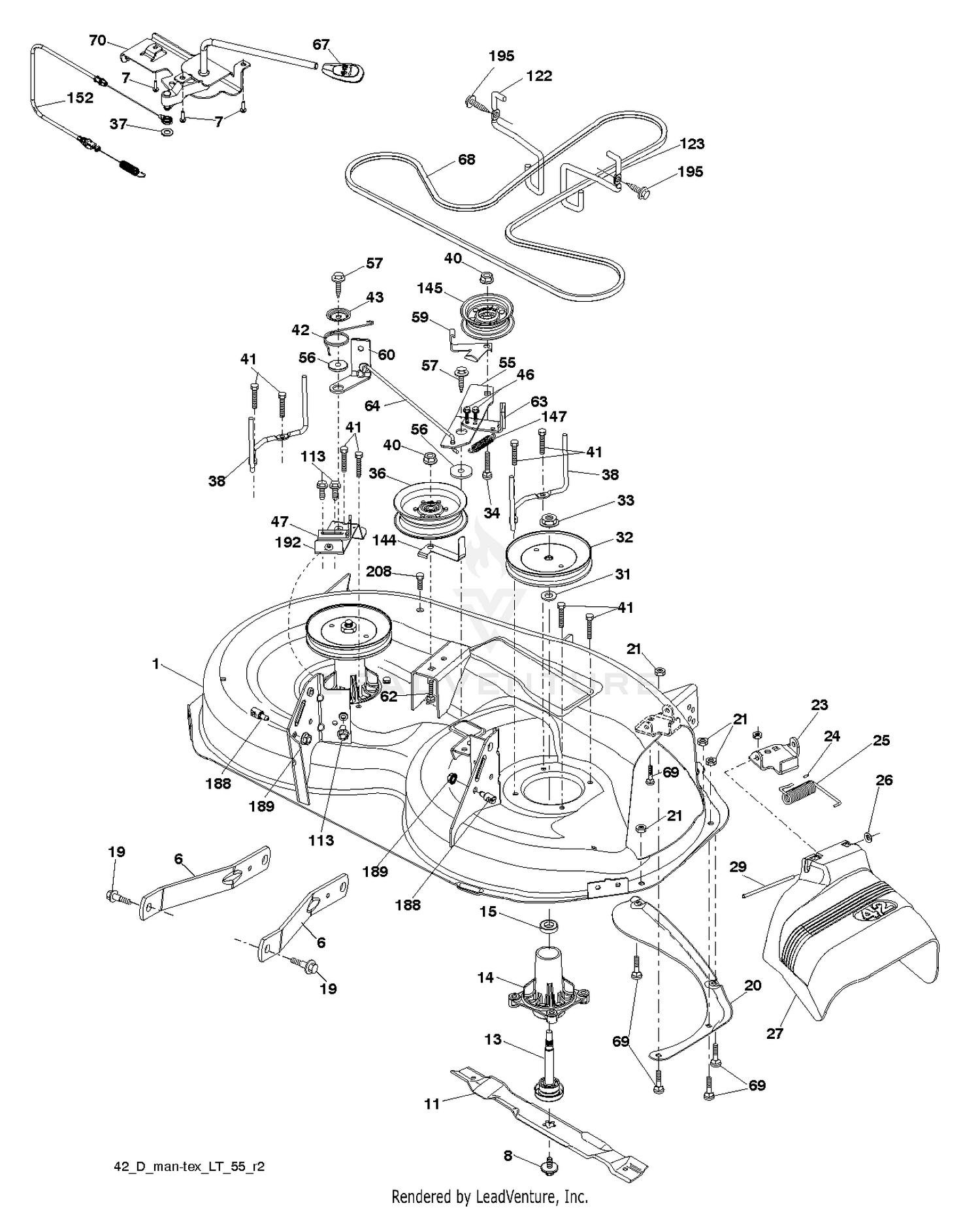

| Ref | Part Number | Description |
|---|
| 1 |
3901178 |
Assembly-Retainer Price: Call Us |
| 1 |
583338301 |
KIT.SVC.WELDMNT.42"199911X431 This part replaces 532199911. Price: $229.99 |
| 2 |
3930800 |
Gasket Price: Call Us |
| 3 |
3987937 |
Seal Price: Call Us |
| 4 |
3901152 |
Ring Retaining Price: Call Us |
| 5 |
3866655 |
Ring Price: Call Us |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 6 |
907993 |
Bearing Price: Call Us |
| 7 |
3866347 |
Cap Price: Call Us |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
3901177 |
Slinger Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
3866348 |
Gasket Price: Call Us |
| 10 |
3901175 |
Gear-Clutch Price: Call Us |
| 11 |
465453 |
Case With Plugs Price: Call Us |
| 12 |
6273214 |
Gasket-P.T.O. Price: Call Us |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 13 |
6273213 |
Cover-P.T.O. Price: Call Us |
| 14 |
3905486 |
Bolt-Power Take Off Cover Price: Call Us |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
3901166 |
Ring Price: Call Us |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
3901165 |
Clutch Price: Call Us |
| 17 |
3901164 |
Hub Price: Call Us |
| 18 |
3866359 |
Spring Price: Call Us |
| 19 |
3950367 |
Cone Price: Call Us |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
3866646 |
Spring Price: Call Us |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
3946776 |
Hub Price: Call Us |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
3866358 |
Key Price: Call Us |
| 23 |
3901170 |
Gear Price: Call Us |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
465455 |
Bushing Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
456587 |
Pin Price: Call Us |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
476766 |
Gear Price: Call Us |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
465450 |
Thrust Washer Price: Call Us |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $27.99 |
| 28 |
907474 |
Bearing Price: Call Us |
| 29 |
3830051 |
Ring Price: Call Us |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
3866742 |
Gear Price: Call Us |
| 31 |
3830575 |
Nut Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
3993036 |
Cone Price: Call Us |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
3901161 |
Gear Price: Call Us |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
3932267 |
Washer Price: Call Us |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
3932274 |
Bushing Price: Call Us |
| 36 |
3901158 |
Gear Price: Call Us |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
3932253 |
Bushing Price: Call Us |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
3932265 |
Shaft Price: Call Us |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 39 |
3915056 |
Universal Flange Front Price: Call Us |
| 40 |
3911917 |
Seal Price: Call Us |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
3911926 |
Bolt Price: Call Us |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 42 |
465217 |
Retainer Price: Call Us |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
3930800 |
Gasket Price: Call Us |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 44 |
3866917 |
Driven Gear Price: Call Us |
| 45 |
40-9330 |
DISCONTINUED Price: Call Us |
| 46 |
36-9290 |
DISCONTINUED X-REF Price: Call Us |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
3866346 |
Ring Price: Call Us |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 48 |
465449 |
Gear Price: Call Us |
| 49 |
3968038 |
Gear Price: Call Us |
| 50 |
3920703 |
Ring Price: Call Us |
| 51 |
3946795 |
Spacer Price: Call Us |
| 52 |
3955570 |
Gear Price: Call Us |
| 53 |
3901153 |
Thrust Washer Price: Call Us |
| 54 |
3901144 |
Shaft-Rev. Idle Price: Call Us |
| 55 |
444746 |
Plug Price: Call Us |
| 55 |
532437110 |
IDLER.ARM.42" Price: $4.99 |
| 56 |
3901141 |
Gear Price: Call Us |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
325-8 |
SCREW-HH Price: $3.52 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 58 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 59 |
3217-9 |
NUT-HH Price: $0.37 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
532197402 |
ARM BRAKE MOWER This part replaces 532197261. Price: $11.99 |
| 60 |
7451785 |
Bearing Price: Call Us |
| 61 |
435141 |
Screw Price: Call Us |
| 62 |
872110616 |
BOLT Price: $3.99 |
| 62 |
9422666 |
Bearing-Roller Price: Call Us |
| 63 |
325-6 |
SCREW-HH Price: $1.42 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532429636 |
BELT.DECK.DRIVE.42" Price: $32.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $54.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 122 |
532197258 |
KEEPER BELT ENGINE LH Price: $9.99 |
| 123 |
532197259 |
KEEPER BELT RH Price: $9.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401971 |
RETURN SPRING Price: $3.99 |
| 152 |
584243501 |
CABLE.MECHANICAL.CLUTCH Price: $22.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 192 |
532197260 |
BRKT.BRAKE.STAND.LH. Price: $8.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
