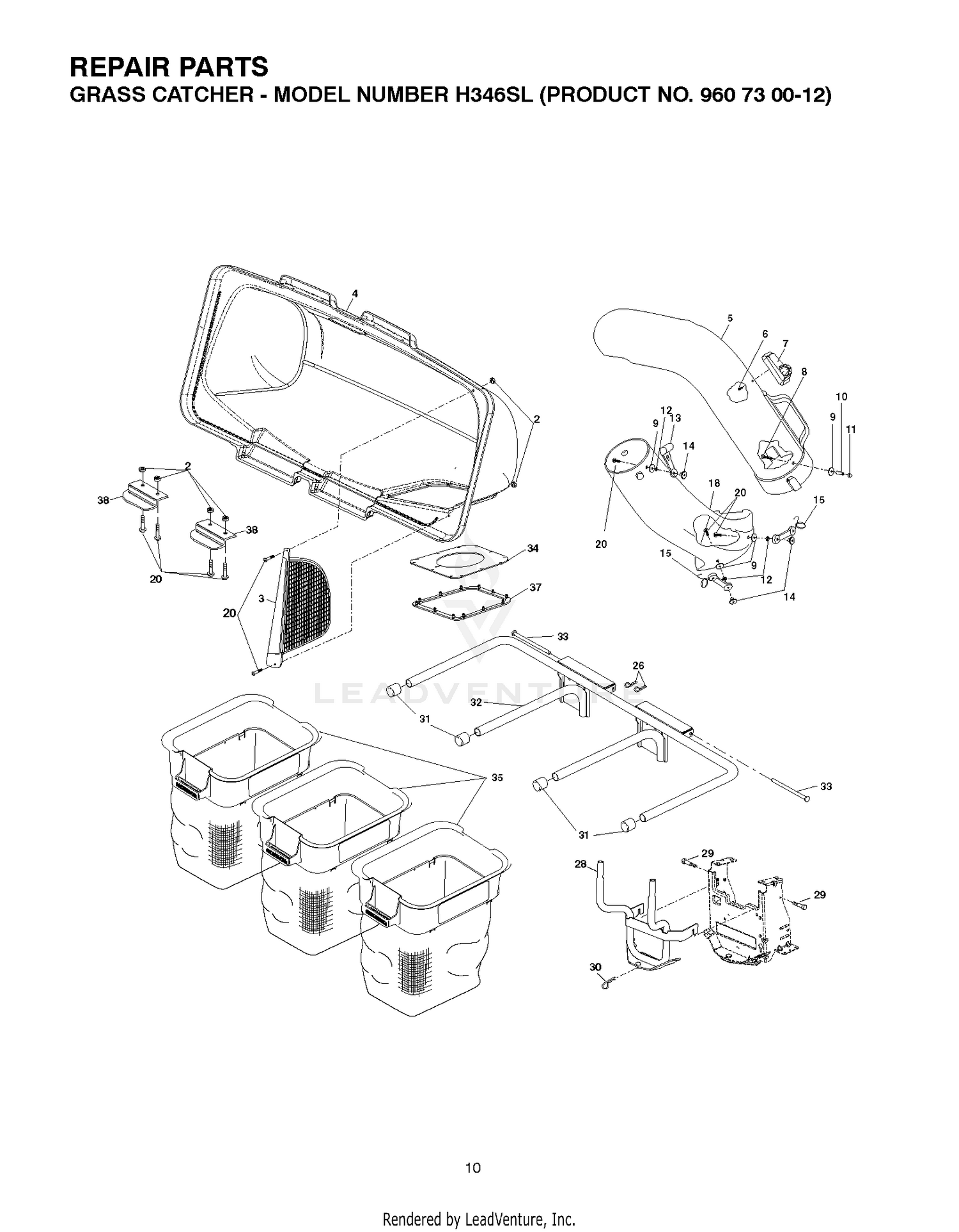

| Ref | Part Number | Description |
|---|
| 2 |
532069180 |
LOCKNUT Price: $2.99 |
| 3 |
532192709 |
SCREEN.COVER.BAGGER Price: $17.99 |
| 4 |
532193010 |
COVER ASSEMBLY CRAFTSMAN Price: $159.99 |
| 5 |
532411397 |
CHUTE.UPPER.46" Price: $79.99 |
| 6 |
818021008 |
SCREW Price: $4.99 |
| 7 |
532130933 |
INDICATOR ASM BAG Price: $6.99 |
| 8 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $4.99 |
| 9 |
819061216 |
WASHER Price: $3.99 |
| 10 |
532007206 |
SPACER LT Price: $5.99 |
| 11 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 12 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 13 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 14 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 15 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 18 |
532405455 |
CHUTE.LOWER.LT.46" Price: $79.99 |
| 20 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 21 |
532132796 |
SPRING COVER LH Price: $5.99 |
| 22 |
532133235 |
SPACER.COVER.BAGGER Price: $5.99 |
| 23 |
532132983 |
SPRING COVER RH Price: $5.99 |
| 24 |
531168201 |
SERVICE KIT POST.SUPPORT This part replaces 532180923. Price: $59.99 |
| 25 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 26 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 27 |
872140405 |
BOLT T Price: $3.99 |
| 28 |
535280001 |
BRACKET This part replaces 532198364. Price: $74.99 |
| 29 |
532176997 |
SHOULDER BOLT, SELF-TAP Price: $5.99 |
| 30 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 31 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 32 |
532179746 |
FRAME.ASM.BAGGER.2BIN.QC42B Price: $89.99 |
| 33 |
532192786 |
BAGGER.HINGE.PIN Price: $14.99 |
| 34 |
532127534 |
GASKET.COVER.BAGGER Price: $11.99 |
| 35 |
532400226 |
CONTAINER BAG, SOFT Price: $69.99 |
| 38 |
532130895 |
LATCH CER38 Price: $5.99 |
