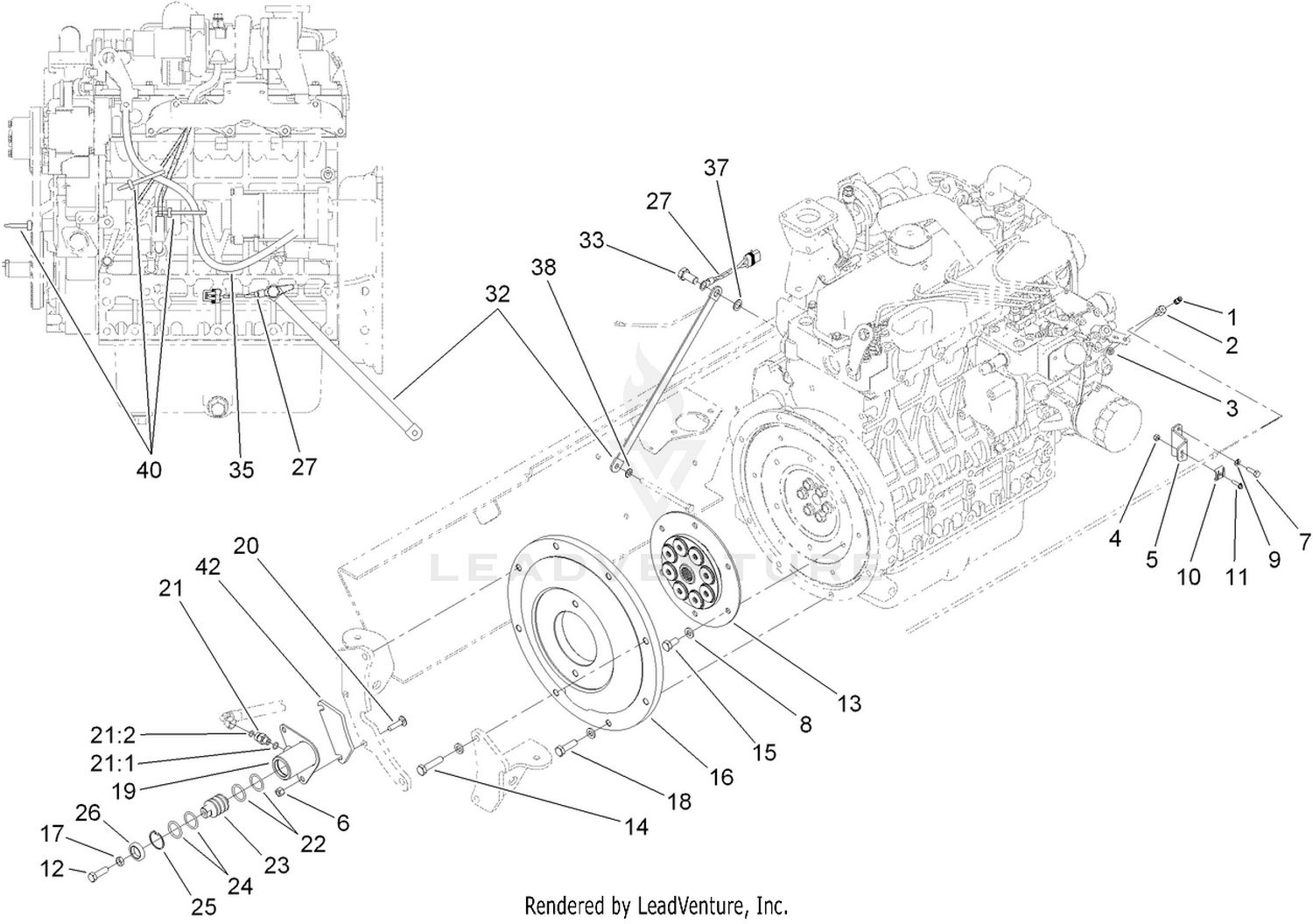

| Ref | Part Number | Description |
|---|
| 1 |
112-9919 |
STOP-CABLE, THROTTLE Price: $3.18 |
| 2 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 3 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 4 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 5 |
115-9114-0P |
SUPPORT-THROTTLE CABLE This part replaces 115-9114-03. Price: $13.46 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
33113-020 |
SCREW-HH Price: $0.26 |
| 8 |
107-1413 |
WASHER-HARDENED Price: $1.08 |
| 9 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 10 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 11 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 12 |
323-7 |
SCREW-HH Price: $0.65 |
| 13 |
114-3848 |
COUPLER-SPRING, FLYWHEEL Price: $401.93 |
| 14 |
117-5664 |
SCREW-HH Price: $1.90 |
| 15 |
99-5130 |
BOLT Price: $5.51 |
| 16 |
115-6657-0P |
PLATE-FLYWHEEL (MACHINED) This part replaces 115-6657-03. Price: $582.98 |
| 17 |
3218-3 |
NUT-JAM Price: $0.25 |
| 18 |
117-5663 |
SCREW-HH Price: $1.29 |
| 19 |
117-5691 |
CYLINDER-TRANSPORT Price: $624.84 |
| 20 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 21 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 22 |
237-185 |
O-RING Price: $1.26 |
| 23 |
117-5689 |
PISTON-CYLINDER Price: $71.63 |
| 24 |
104-2296 |
RING-BACK UP Price: $2.67 |
| 25 |
32151-51 |
RING-RETAINING Price: $0.81 |
| 26 |
104-8304 |
SEAL-GREASE Price: $7.38 |
| 27 |
117-2370 |
HARNESS-GROUND Price: $23.49 |
| 32 |
117-2377 |
CABLE-BATTERY, NEGATIVE Price: $226.78 |
| 33 |
42-9250 |
BOLT Price: $1.63 |
| 35 |
117-4745 |
CABLE-BATTERY, POSITIVE Price: $96.08 |
| 37 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 38 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 40 |
3290-378 |
TIE-CABLE Price: $0.79 |
