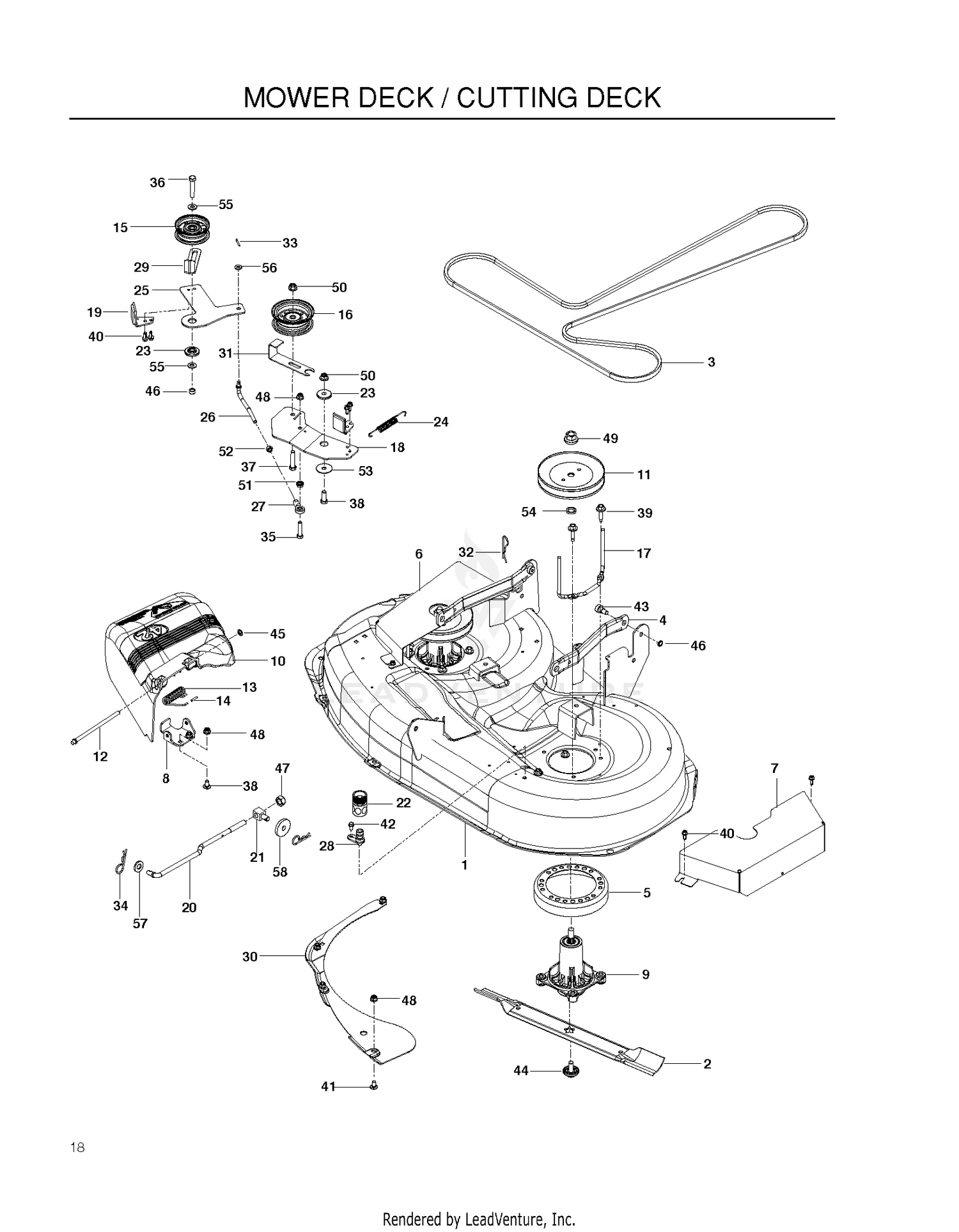

| Ref | Part Number | Description |
|---|
| 1 |
575699801 |
DECK.SVC W/DECALS 42" HTC RZ Price: $699.99 |
| 4 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 5 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 539107518. Price: $6.99 |
| 6 |
575754602 |
GUARD.RIGHT.BELT.42"BLACK Price: $89.99 |
| 7 |
575754502 |
GUARD.LEFT.BELT.42" BLACK Price: $69.99 |
| 8 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 9 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192870. Price: $49.99 |
| 10 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC This part replaces 532193108. Price: $29.99 |
| 11 |
532195945 |
PULLEY.MANDREL.5.438.P Price: $12.99 |
| 12 |
595297001 |
Rods This part replaces 539110462. Price: $4.99 |
| 13 |
539107609 |
TORSION SPRING This part replaces 539110328. Price: $4.99 |
| 14 |
532105304 |
CAP-SLEEVE LT This part replaces 539107627. Price: $3.99 |
| 15 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 16 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 17 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 18 |
574694505 |
ARM DECK IDLER ARM.IDLER.BLACK This part replaces 574694502. Price: $19.99 |
| 19 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 529311801. Price: $14.99 |
| 20 |
581506902 |
Links This part replaces 532195740. Price: $9.99 |
| 21 |
539114789 |
SWIVEL Price: $11.99 |
| 22 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 23 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 24 |
532401872 |
SPRING RETURN Price: $4.99 |
| 25 |
574693302 |
ARM.BRAKE.42.BLACK Price: $17.99 |
| 26 |
574694601 |
LINKAGE, DECK BRAKE Price: $58.99 |
| 27 |
539102590 |
BALL JOINT, RIGHT HANDED Price: $19.99 |
| 28 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 29 |
525851801 |
GUIDE, BELT Price: $11.99 |
| 30 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 539110463. Price: $11.99 |
| 31 |
577209101 |
KEEPER, BELT Price: $8.99 |
| 32 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 33 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 34 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 35 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 36 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 37 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 38 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 40 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99 |
| 41 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 42 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 43 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 44 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 45 |
532110452 |
NUT PUSH M Price: $2.99 |
| 46 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 47 |
573975201 |
NUT, 7/16-20 HEX NYLOC ZC Price: $2.99 |
| 48 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 49 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 50 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 51 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 52 |
596582601 |
Nuts This part replaces 539990196. Price: $2.99 |
| 53 |
539102998 |
WASHER, FRICTION Price: $4.99 |
| 54 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 55 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 56 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 57 |
595086801 |
Washers This part replaces 539990250. Price: $2.99 |
| 58 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
