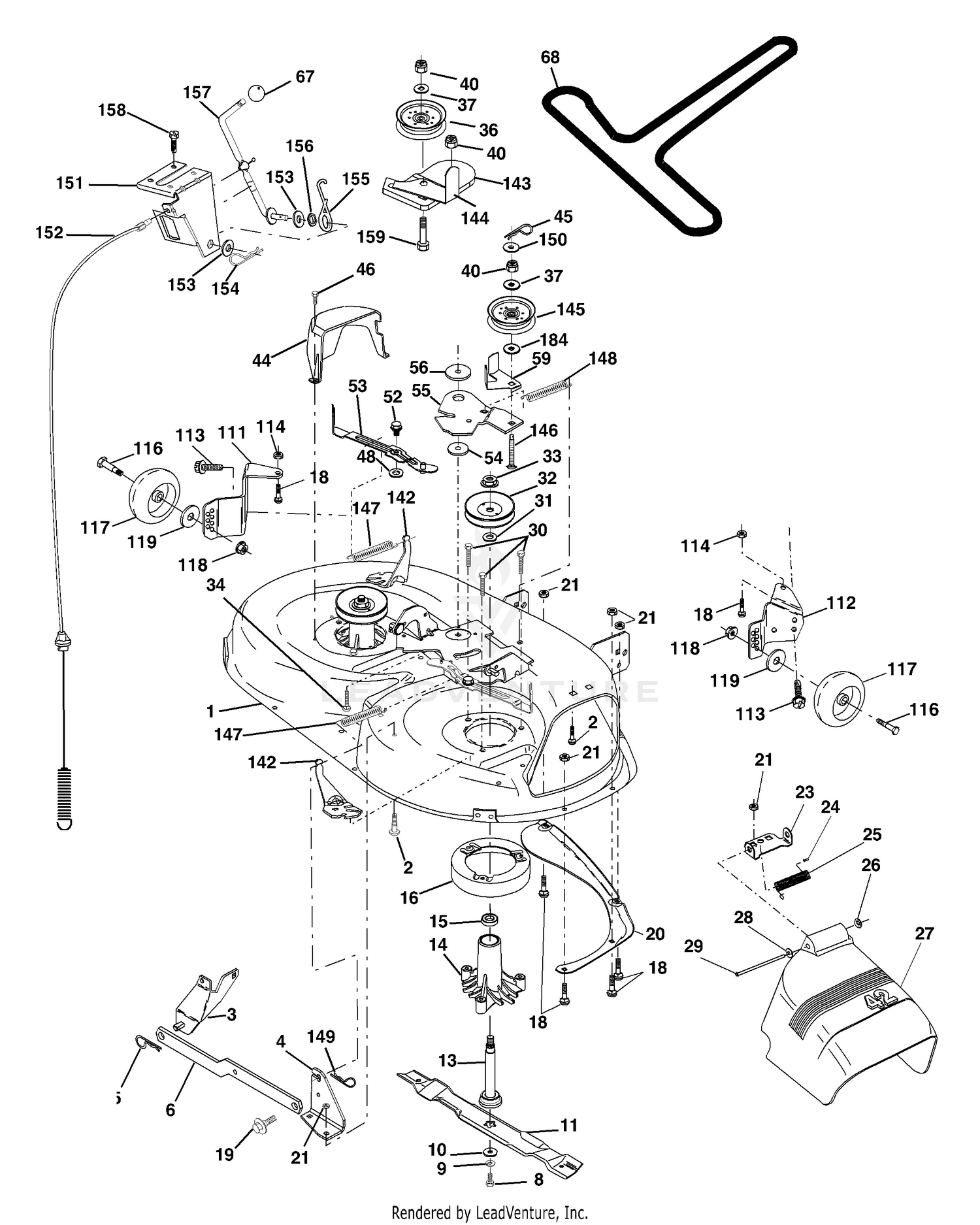

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 1 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
98-9653 |
PIPE-INJECTION Price: $69.17 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 7 |
99-8377 |
NUT-FLANGE Price: $2.56 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 8 |
98-9620 |
OVERFLOW PIPE ASM Price: $44.29 |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
| 11 |
98-9623 |
PLUG-GLOW This part replaces 98-9695. Price: $93.76 |
| 12 |
98-7676 |
GASKET Price: $2.73 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
98-7654 |
GASKET Price: $8.84 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock 9/16 Flange Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 40 |
73680600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 Unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 111 |
179292 |
Bracket Wheel Gauge LH Price: Call Us |
| 112 |
179293 |
Bracket Wheel Gauge RH Price: Call Us |
| 113 |
17060510 |
Screw 3/8-16 x .625 Price: Call Us |
| 114 |
73510500 |
Nut keps 5/16-18 Unc Price: Call Us |
| 116 |
4898H |
Bolt Shld "A" 2.41 "B" 1.66 Price: Call Us |
| 117 |
165746 |
Wheel Gauge Std Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
