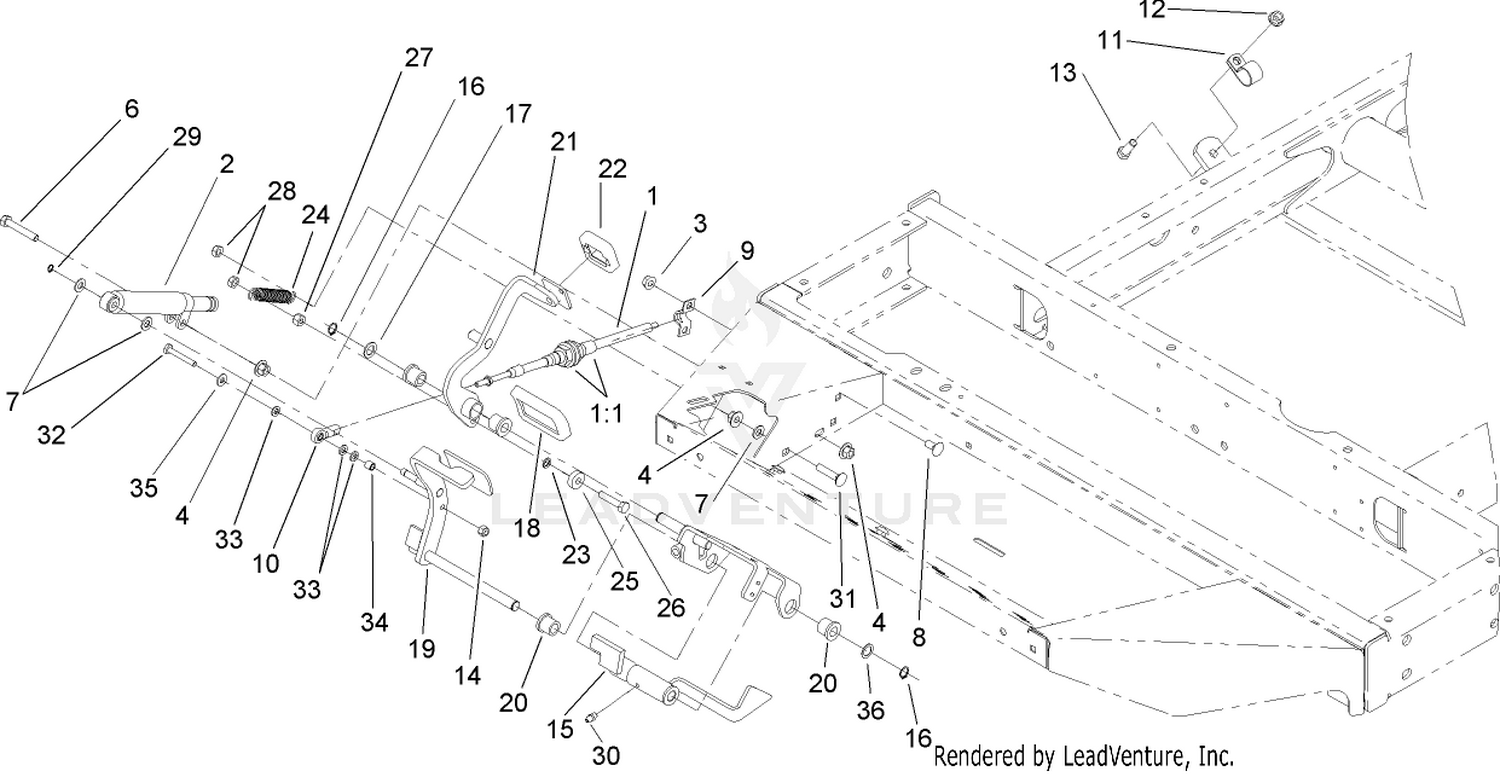

| Ref | Part Number | Description |
|---|
| 1 |
100-4815 |
CABLE-CONTROL, TRACTION Price: $140.70 |
| 2 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
32128-44 |
NUT Price: $2.69 |
| 6 |
322-10 |
SCREW-HH Price: $0.70 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 10 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 11 |
2412-41 |
CLAMP-R Price: $4.82 |
| 12 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 15 |
140-6255 |
DETENT SLIDER ASM This part replaces 95-8861. Price: $161.79 |
| 16 |
32151-84 |
RING-SHAFT, EXT Price: $1.89 |
| 17 |
41-8440 |
WASHER Price: $1.49 |
| 18 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 19 |
140-6263 |
TRACTION PEDAL ASM This part replaces 104-4852-03. Price: $133.16 |
| 20 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 21 |
140-6251 |
REVERSE PEDAL ASM This part replaces 99-3379. Price: $100.06 |
| 22 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 23 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 24 |
99-3476 |
SPRING-EXTENSION Price: $7.11 |
| 25 |
251-259 |
BEARING-BALL Price: $13.67 |
| 26 |
322-7 |
SCREW-HH Price: $0.89 |
| 27 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 29 |
32151-3 |
RING-GRIP Price: $6.49 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 32 |
321-10 |
SCREW-HH Price: $1.29 |
| 33 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 34 |
99-3545 |
SPACER Price: $6.45 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
