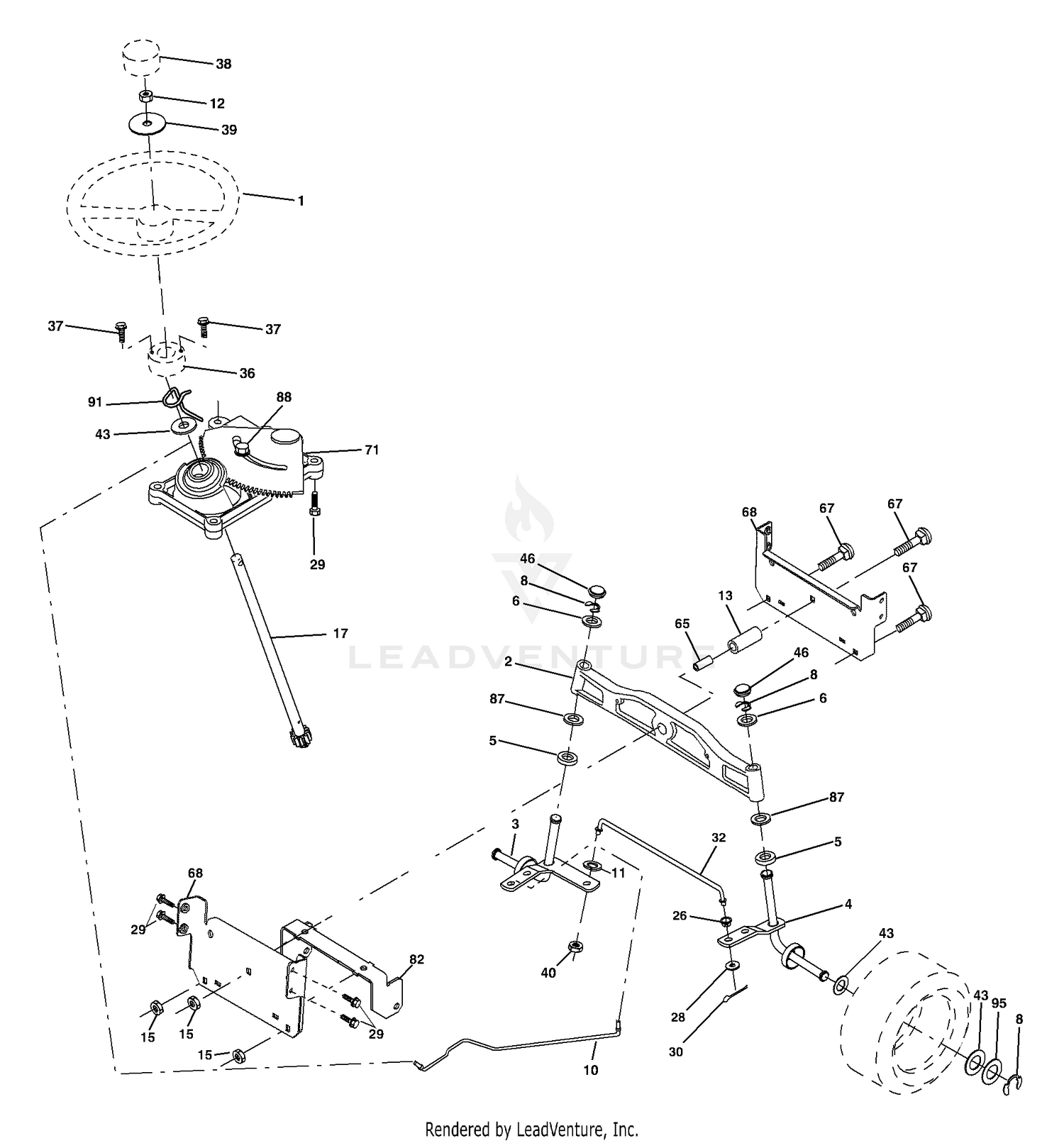

| Ref | Part Number | Description |
|---|
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 1 |
56-2800 |
CAPSCREW Price: $8.21 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 2 |
56-2830 |
Charge Pump (Incl. Ref. #1) Price: $1,146.84 |
| 3 |
56-3120 |
CARRIER Price: $168.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
56-2850 |
SEAL Price: $5.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 5 |
56-2860 |
PLATE Price: $90.24 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
56-2870 |
SEAL Price: $6.58 |
| 7 |
56-2880 |
BUTTON Price: $7.51 |
| 8 |
56-2890 |
PIN Price: $46.29 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
56-2900 |
PIN Price: $6.38 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
56-2910 |
DISCONTINUED Price: Call Us |
| 11 |
56-2920 |
SEAL Price: $8.87 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
56-2930 |
ROTOR Price: $1,173.87 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
56-2940 |
CAM RING ASM Price: $999.83 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
56-2950 |
PISTON Price: $64.11 |
| 16 |
56-2960 |
RING Price: $5.05 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 17 |
56-2970 |
O-RING Price: $2.88 |
| 18 |
56-2980 |
PIN Price: $4.76 |
| 19 |
56-2990 |
PINTLE Price: $3,055.99 |
| 20 |
56-3000 |
RING Price: $3.67 |
| 21 |
56-3010 |
DISCONTINUED Price: Call Us |
| 22 |
56-3020 |
BODY Price: $30.36 |
| 23 |
56-3050 |
PLUG Price: $15.84 |
| 24 |
56-3040 |
SPRING Price: $5.04 |
| 25 |
56-3030 |
BALL Price: $4.49 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) Price: $4.99 |
| 26 |
56-3060 |
PIN Price: $8.39 |
| 27 |
56-3180 |
SPRING Price: $3.58 |
| 28 |
56-3200 |
BODY Price: $86.20 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
56-3210 |
BALL Price: $7.05 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
56-3170 |
INSERT Price: $120.04 |
| 30 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM Price: $29.99 |
| 33 |
56-3250 |
PLUG ASM Price: $18.60 |
| 34 |
56-3260 |
O-RING Price: $2.92 |
| 35 |
56-2820 |
SEAL-OIL This part replaces 56-3270. Price: $35.99 |
| 36 |
112602 |
BEARING-BALL (INPUT) This part replaces 56-3280. Price: $53.99 |
| 36 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 37 |
56-3290 |
RING Price: $18.80 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 38 |
56-3100 |
SCREW-HH This part replaces 56-3300. Price: $7.68 |
| 39 |
56-3220 |
ROTOR Price: $990.82 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
56-3230 |
DISCONTINUED Price: Call Us |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
56-3240 |
RACE Price: $328.19 |
| 42 |
56-3140 |
SHAFT KIT Price: $267.22 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 43 |
56-3130 |
DISCONTINUED Price: Call Us |
| 44 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180640. Price: $59.99 |
| 44 |
56-3110 |
ROLL Price: $15.94 |
| 45 |
56-3100 |
SCREW-HH Price: $7.68 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 46 |
56-2820 |
SEAL-OIL Price: $35.99 |
| 47 |
56-2810 |
BEARING Price: $161.99 |
| 48 |
56-3090 |
RING Price: $4.09 |
| 49 |
56-3080 |
RING Price: Call Us |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
